Matek Mini Power Hub Power Distribution Board With BEC 5V And 12V For FPV Multicopter 3A upgraded version

  • $6.40

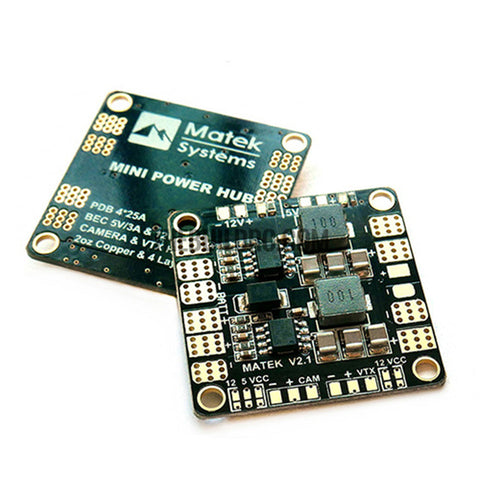

The Mini POWER HUB has been engineered to provide the highest possible performance and reliability in a 36*36mm and 4 layers PCB.

The HUB distributes power from a battery pack to 4 ESCs, as well as providing two synchronised and regulated DC outputs for powering cameras, servos, video transmitters, LEDs, etc. Batteries may range from 3S to 6S LiPo, and the BEC input is TVS protected.

The HUB also features convenient solder bridge of various voltage for camera and video transmitter.

Description:

  • Band name: Matek
  • Item name: Matek Power Distribution Board
  • Dimensions: 36 x 36mm
  • Weight: About 6g
  • Mounting holes 30.5mm square spacing

Features:

  • 2oz copper and 4-layers PCB
  • ESC and Battery solder tabs in pairs
  • Solder Bridges of various voltage for Camera and VTX
  • DC/DC synchronous buck regulator, Efficiency is up to 95%
  • TVS(Transient Voltage Suppressor) protection for DC/DC chip

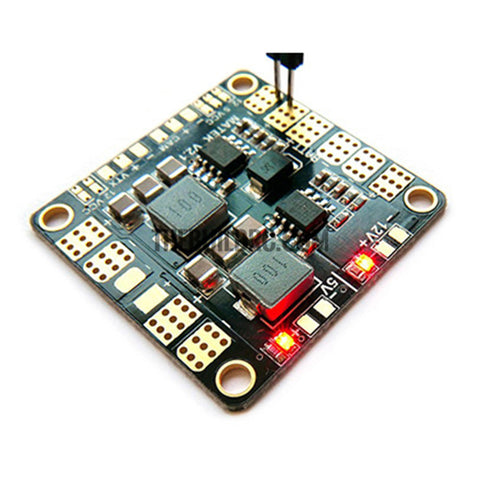

  • 5V and 12V Output LED indicators & Short circuit tolerant.

Specification:

General:

  • Input voltage range (2S-6S operation): 7.2 - 26VDC
  • Regulated 5V and 12V outputs
  • LED power indicators (5V and 12V outputs)
  • 4 ESC outputs

ESC outputs:

  • Continuous current: 20A per output
  • Peak current (10 seconds/minute): 30A per output

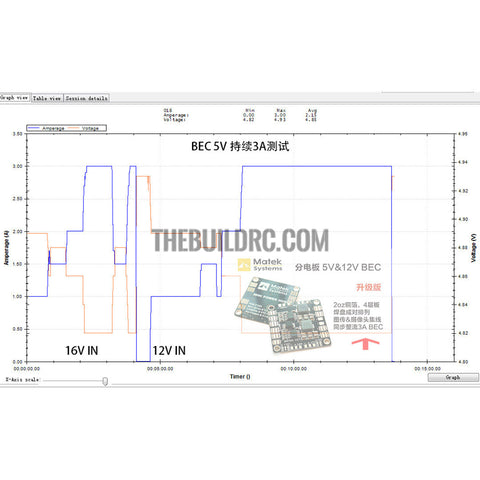

BEC 5V output:

  • Designed for RC Receivers, Flight controllers, OSD, and Servos
  • Voltage: 5.0 +/- 0.1VDC
  • Continuous current: 3 Amps
  • Short-circuit tolerant (10 seconds/minute)
  • LED (indicates voltage is in regulation, within 10%)

BEC 12V output:

  • The battery should be 4S~6S LiPo
  • Standard output designed to power cameras and video transmitters, etc.
  • Voltage: 12.0 +/- 0.2VDC
  • Continuous current: 2 Amps (Max.3A 10s/minute)
  • Short-circuit tolerant (10 seconds/minute)
  • LED (indicates voltage is in regulation, within 10%)

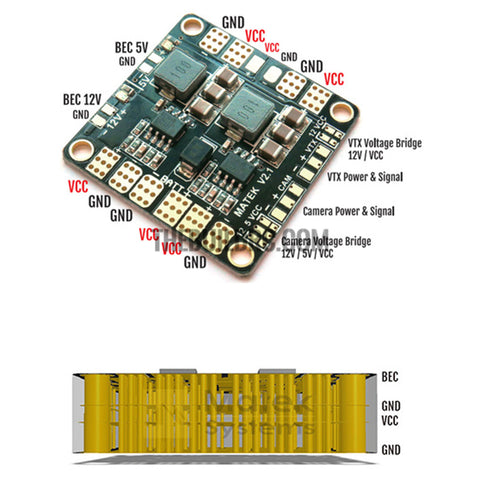

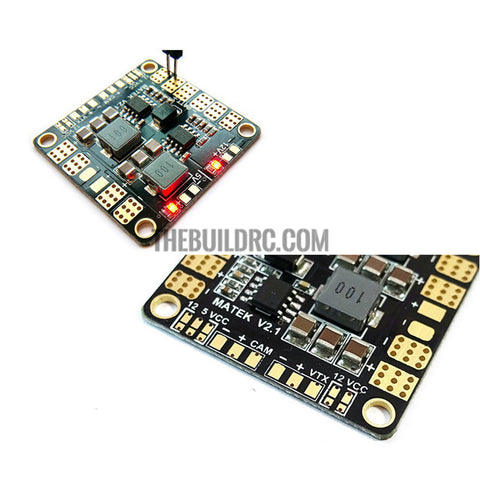

CAM and VTX voltage bridge

  • 3S operation. choose ?????VCC????? for 12V camera and 12V VTX VCC=Battery Voltage. 4~6S operation choose ?????12????? for 12V camera and 12V VTX 3~6S operation, choose ?????5????? for 5V camera
  • Video pass through from the ?????CAM????? pad to the ?????VTX????? pad

Package Included: 1 x Matek Mini Power Distribution Board
