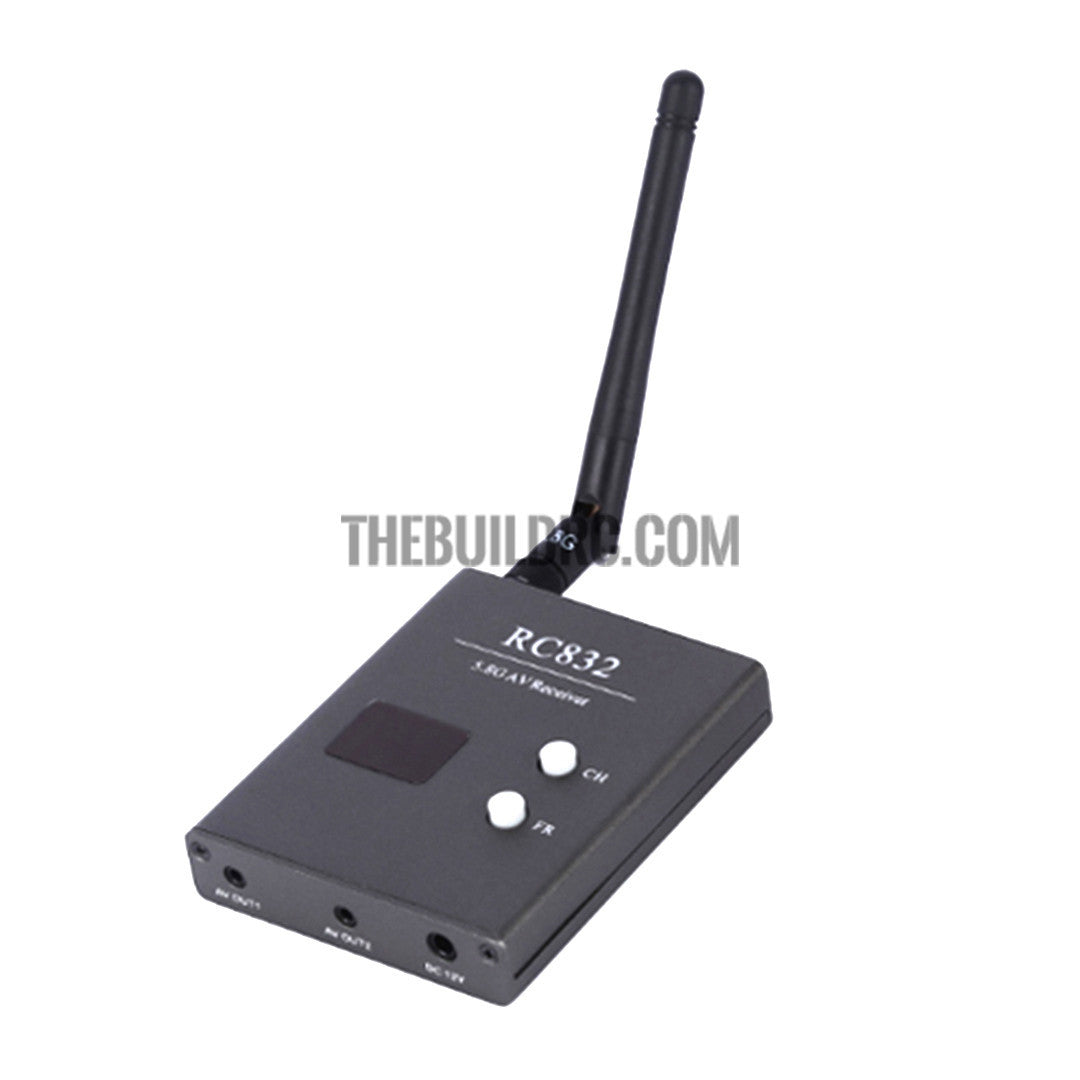

32Ch 5.8G 600mw AV Receiver RC832 Wireless Audio Video for RC FPV

Features:

• 32 channels: Cover A, B, E bands and F bands
• Two switching buttons for the band and channel
• Two digits display for the band and channel
• Power off memory for last channel and band
• dual Independent video and audio signal outputs

Specs:

• Video format supported: NTSC/PAL
• Antenna connection: RP-SMA, jack (module side, both TX and RX)
• Receiver RX RC832 specs:
• Power input: 12V
• Working current: 200mA max
• Antenna impedance: 50??
• Antenna gain: 2db
• Rx sensitivity -90dBm
• Video impedance: 75??
• Video format: NTSC/PAL auto
• Dimension: 80x 65 x15mm
• Weight: 85g
