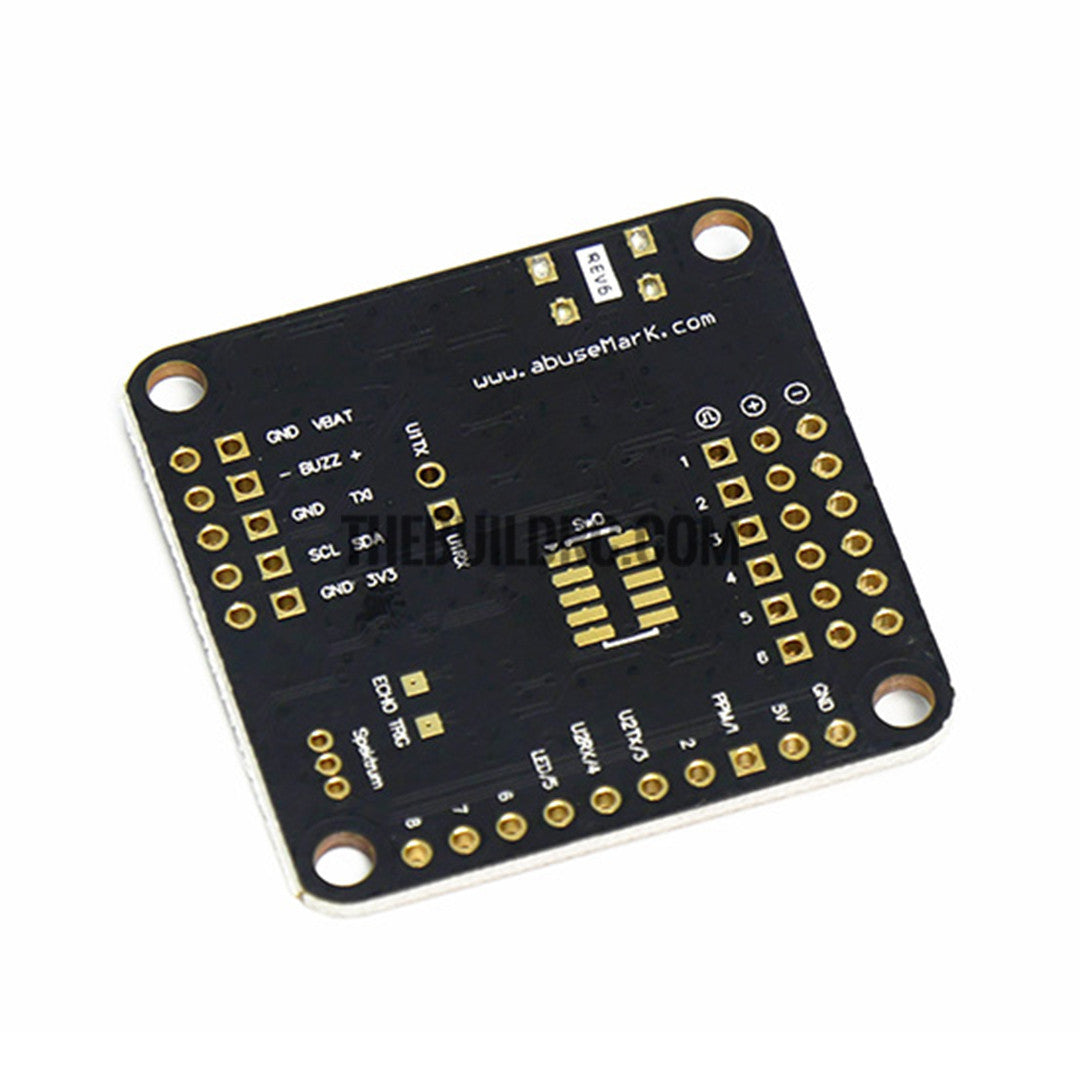

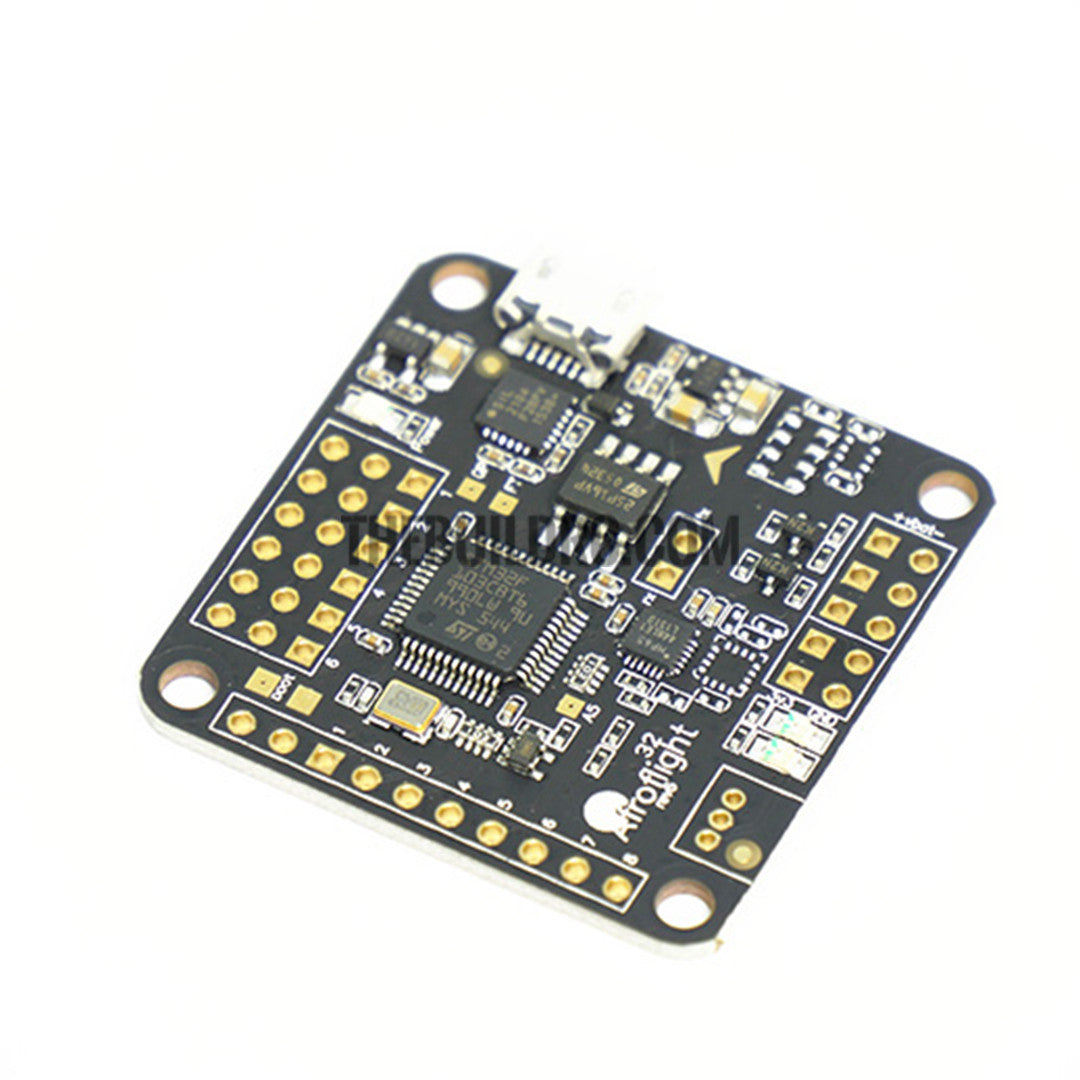

NAZE32 REV6 10DOF Flight Control for Mini Quadcopter with Barometer and Compass

The latest version of NAZAE32 REV6, compared REV5 greatly optimize the PCB layout, better connection, temporary support only BF firmware, follow-up will support CF firmware Designed for use with small indoor or small to mid-sized outdoor multirotor crafts, or as a standalone camera stabilizer. The Naze32 flight controller is extremely simple to setup, with configuration based on the familiar ?????MultiWii????? software.

Features:

• Battery voltage monitoring
• Built-in FrSky telemetry converter
• Modern 32-bit processor (STM32 F103) running at 3.3V/72MHz.
• Onboard USB for setup and configuration
• Extra bright LEDs
• Modern GUI for all operating systems, Baseflight Configurator

Specifications:

• Height: 36mm
• Width: 36mm

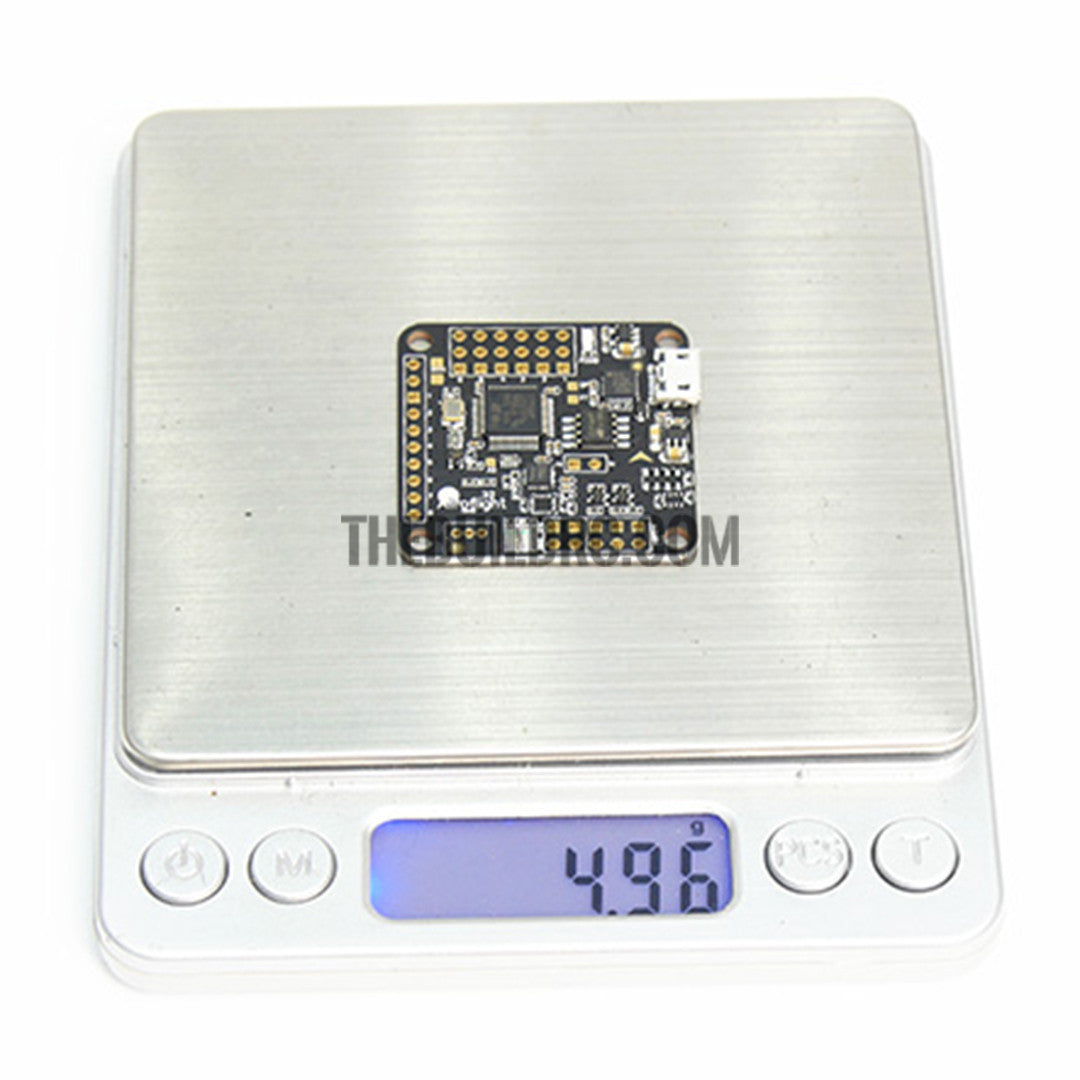

• Weight: 6 grams (no headers, 8 grams with)
• Sensors: MPU6050

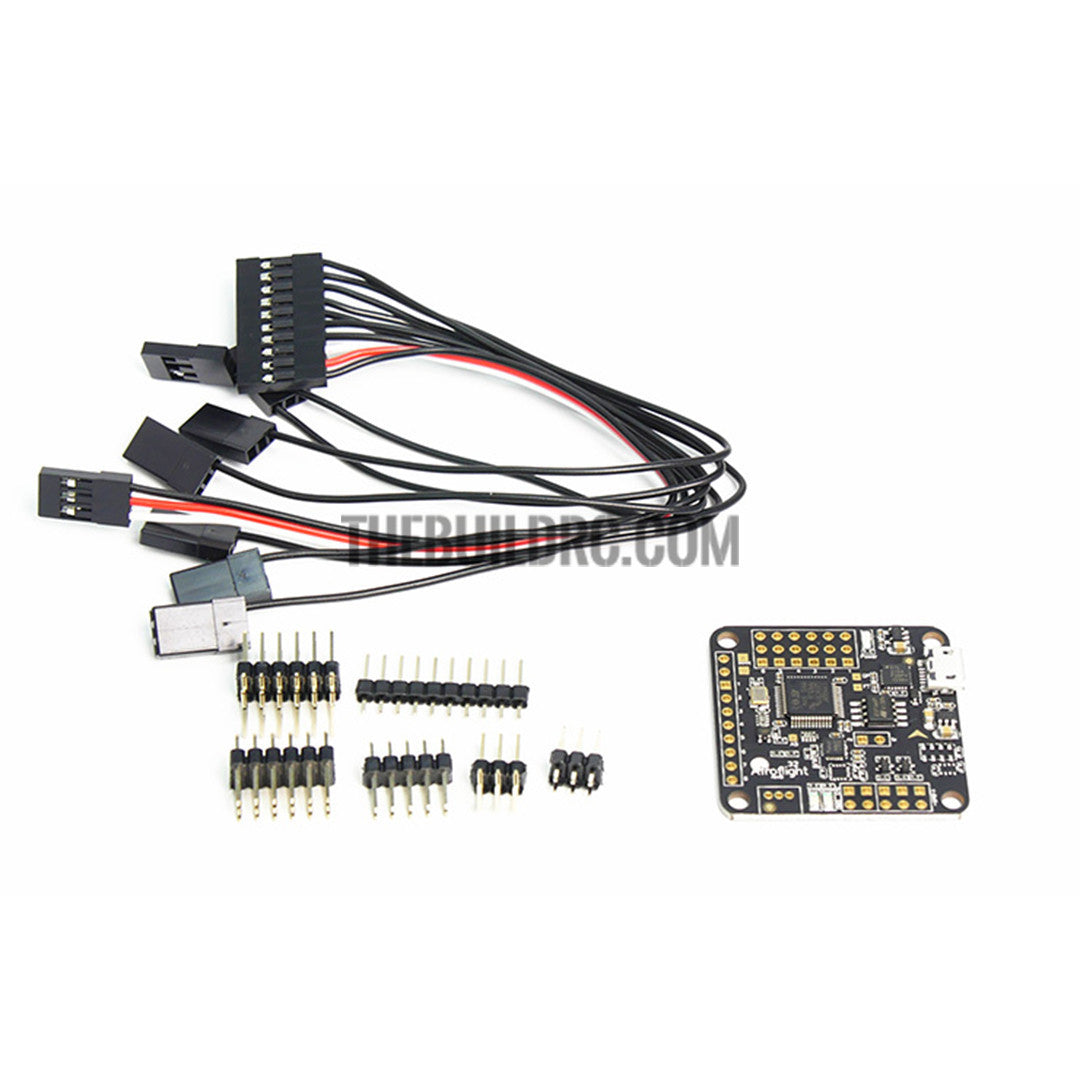

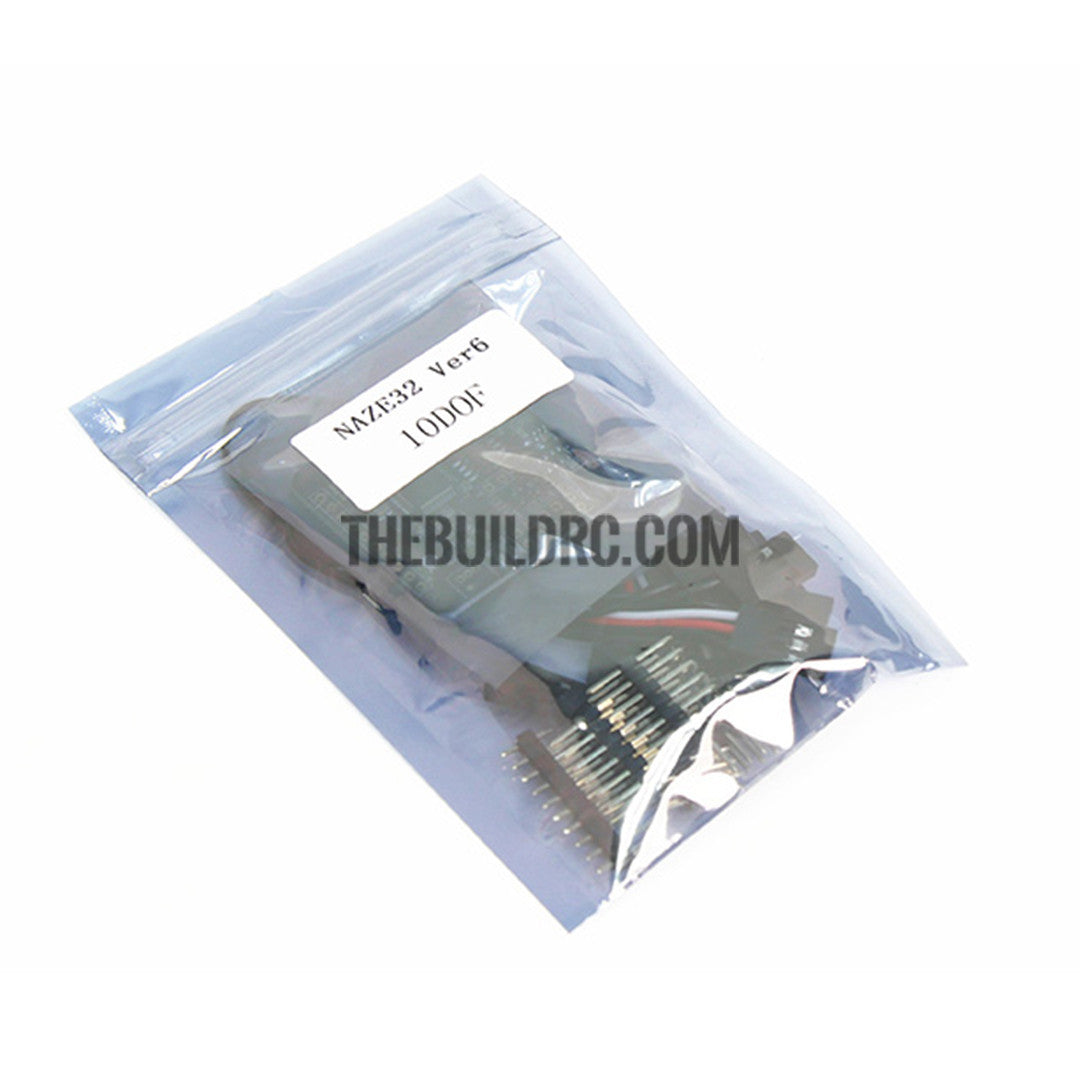

Includes:

• 1 x Acro Afro Naze32 Rev6 10DOF Flight Control
• 1 x 3x6 90 Degree Pin Headers
• 1 x 1x2 Straight Pin Headers
• 1 x 2x3 90 Degree Pin Headers
• 1 x 2x5 Straight Pin Headers
