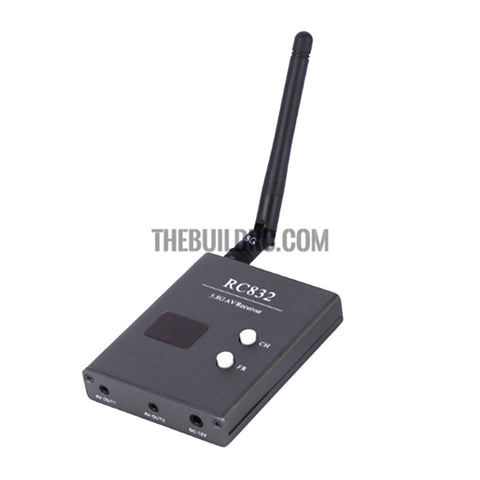

32Ch 5.8G 600mw AV Receiver RC832 Wireless Audio Video for RC FPV
Features:
- 32 channels: Cover A, B, E bands and F bands
- Two switching buttons for the band and channel
- Two digits display for the band and channel
- Power off memory for last channel and band
- dual Independent video and audio signal outputs
Specs:
- Video format supported: NTSC/PAL
- Antenna connection: RP-SMA, jack (module side, both TX and RX)
- Receiver RX RC832 specs:
- Power input: 12V
- Working current: 200mA max
- Antenna impedance: 50??
- Antenna gain: 2db
- Rx sensitivity -90dBm
- Video impedance: 75??
- Video format: NTSC/PAL auto
- Dimension: 80x 65 x15mm
- Weight: 85g
