Ares 2590KV/13.5T/2P BL Motor for 1/10 Car
Motor Features:
- Sensor-based for Excellent Torque and Low-Speed Driveability
- Incorporate Radial Fan in Front End Bell
- Adjustable Timing
- Compatible with any Sensored / Sensorless ESC
- CNC Machined Billet T6 Aluminum Heatsink Can
- High Purity Copper Windings Maximizes Conductivity
- High Power Solder Tabs
- Removable / Replaceable Rotor
- Powerful Sintered Neodymium Magnet
- Precision Engineered for Maximum Energy Conversion

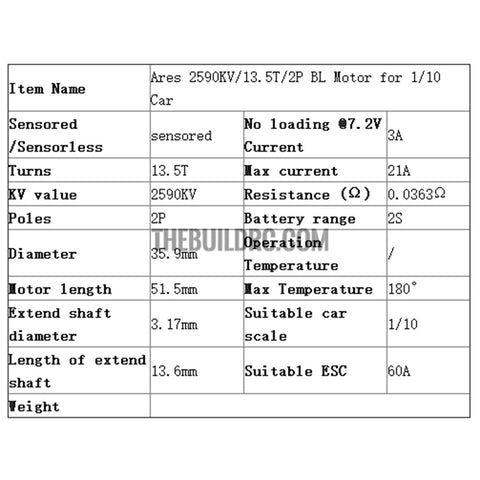

Motor Specifications:
- Model: Ares 2590KV/13.5T/2P BL Motor for 1/10 Car
- Motor Type: Sensored
- No loading @7.2V Current: 3A
- Turns: 13.5T
- Max Current: 21A
- KV Value: 2590KV
- Resistance: 363ohm
- Poles: 2P
- Battery Range: 2S
- Diameter: 35.9mm
- Motor Length: 51.5mm
- Max Temperature: 180 Degree C
- Extend Shaft Diameter: 3.17mm
- Suitable Car Scale: 1/10
- Length of Extend Shaft: 13.6mm
- Suitable ESC: 60A
- Net Weight: 163g
