Ares 3000KV/11.5T/2P BL Motor for 1/10 Car

  • $98.60


Features:

  • Sensor-based for Excellent Torque and Low-Speed Driveability
  • Incorporate Radial Fan in Front End Bell
  • Adjustable Timing
  • Compatible with any Sensored / Sensorless ESC
  • CNC Machined Billet T6 Aluminum Heatsink Can
  • High Purity Copper Windings Maximizes Conductivity
  • High Power Solder Tabs
  • Removable / Replaceable Rotor
  • Powerful Sintered Neodymium Magnet
  • Precision Engineered for Maximum Energy Conversion

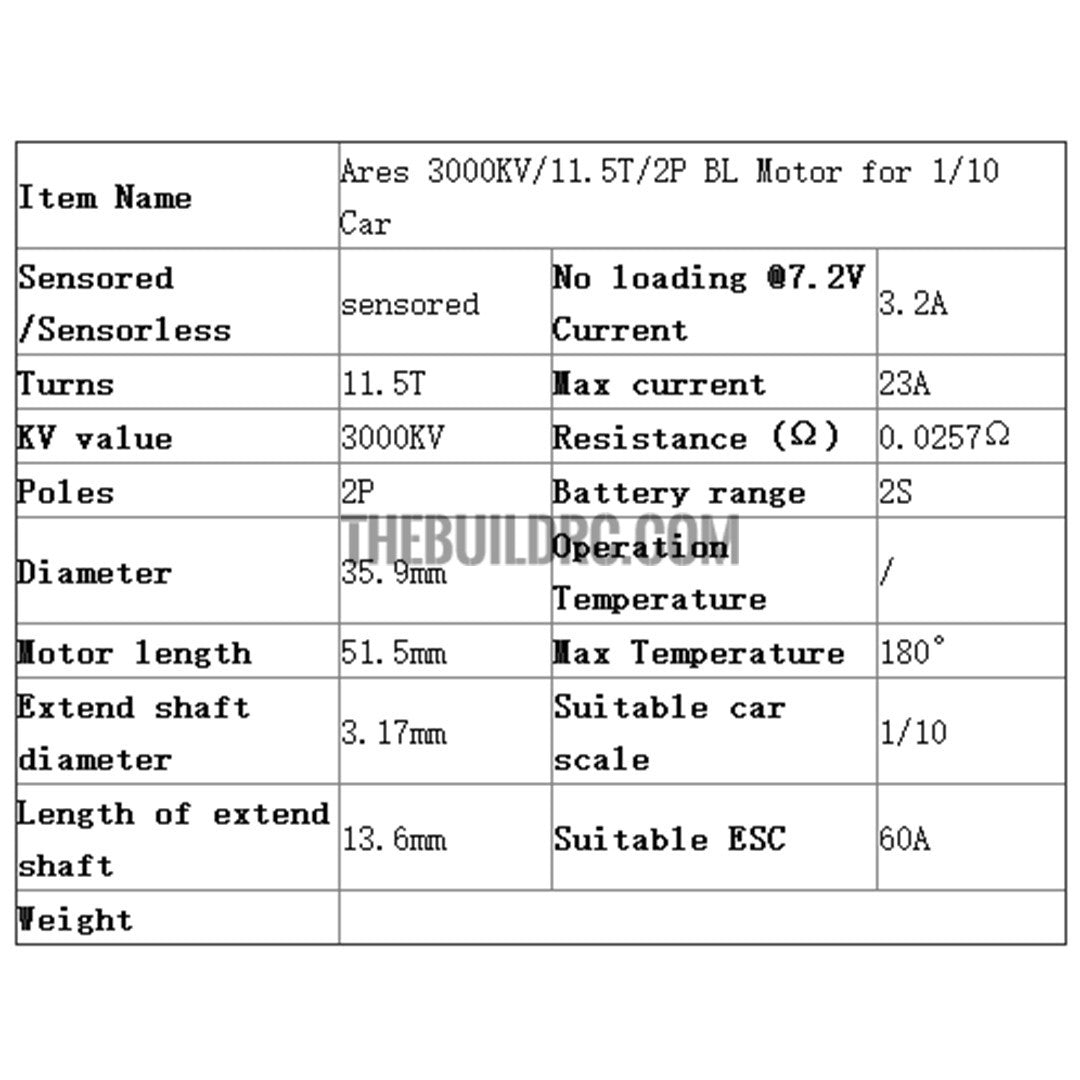

Specifications:

  • Model: Ares 3000KV/11.5T/2P BL Motor for 1/10 Car
  • Motor Type: Sensored
  • No loading @7.2V Current: 3.2A
  • Turns: 11.5T
  • Max Current: 23A
  • KV Value: 3000KV
  • Resistance: 257ohm
  • Poles: 2P
  • Battery Range: 2S
  • Diameter: 35.9mm
  • Motor Length: 51.5mm
  • Max Temperature: 180 Degree C
  • Extend Shaft Diameter: 3.17mm
  • Suitable Car Scale: 1/10
  • Length of Extend Shaft: 13.6mm
  • Suitable ESC: 60A
  • Net Weight: 163g
