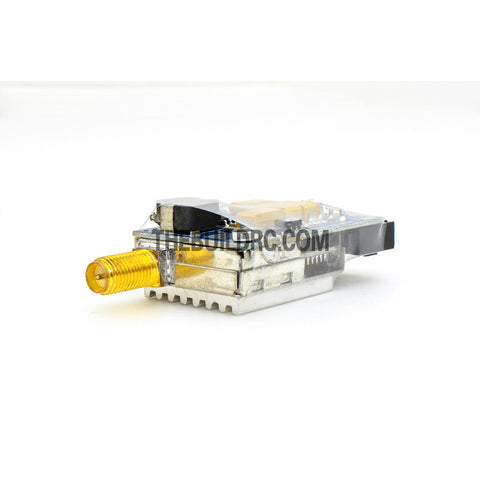

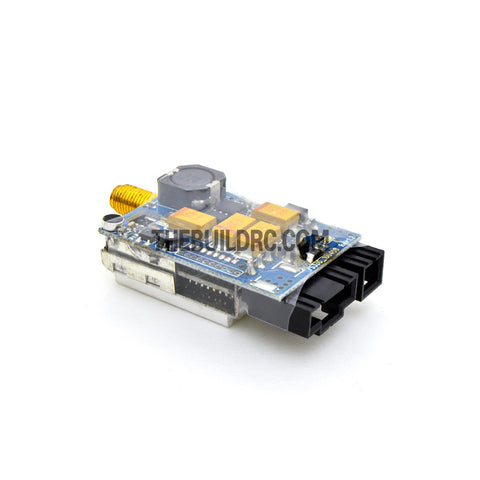

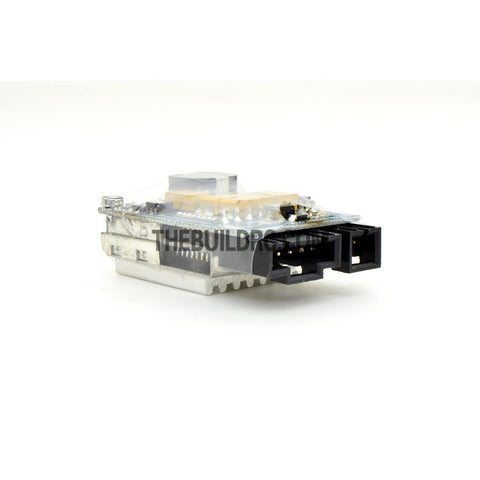

Boscam 5.8Ghz 200mW TS351 FPV Video AV Transmitter

  • $41.42

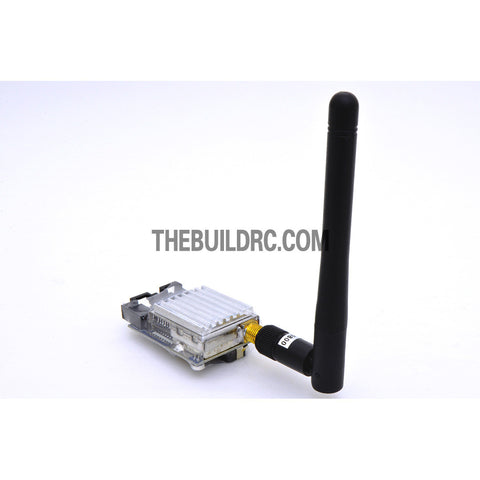

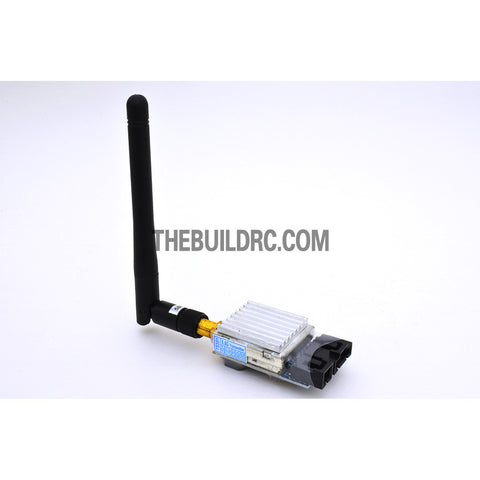

Boscam 5.8Ghz 200mW transmitter. This system is Good for up to 500m flying with the supplied antenna. An optional directional antenna can extend range to 1km+. This unit includes built-in microphone.

Specifications:
Video Format: Pal/NTSC
Output impedance: 50Ohm
Output power: 21~23dBm
Channels: 8
Transmitter operating voltage: 7~15VDC / 150mA
Video bandwidth: 0~8.0MHz
Audio frequency: 6.5MHz
Video input level: 0.8~1.2Vp-p
Video input impedance: 75Ohm
Audio input level: 0.5~2.0Vp-p
Audio input impedance: 10K/Ohm
Antenna connector: RP-SMA
Channels: 5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHz
