Boscam 5.8Ghz 500mW TS352 FPV Video Transmitter

  • $116.50

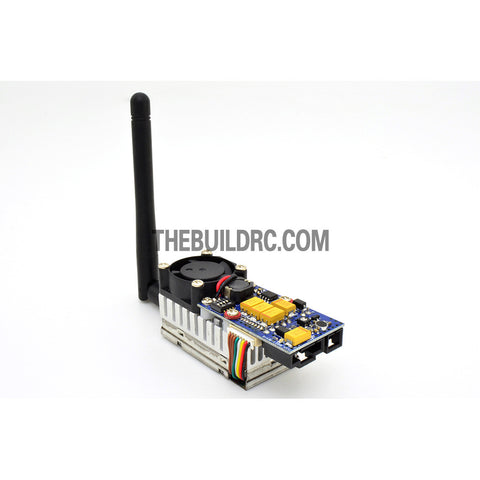

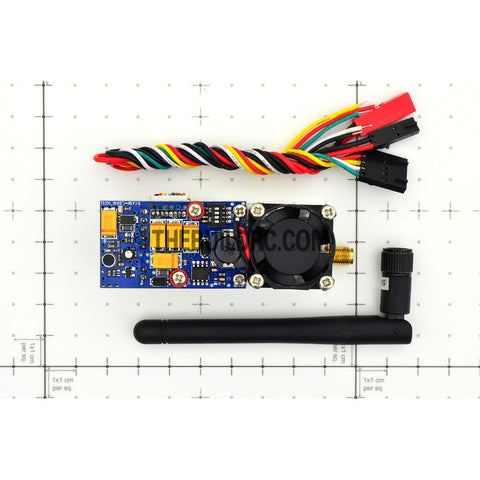

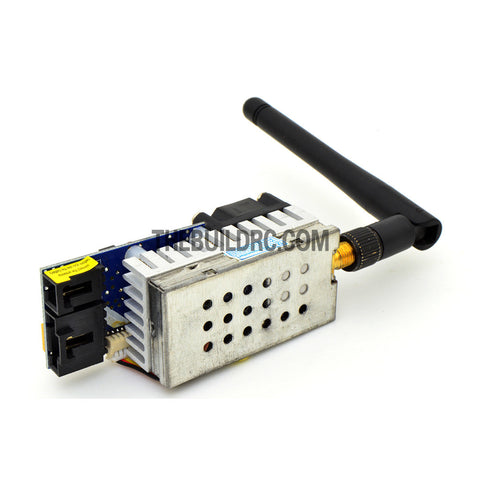

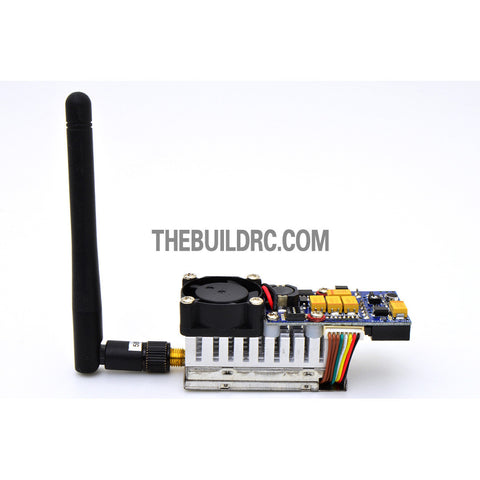

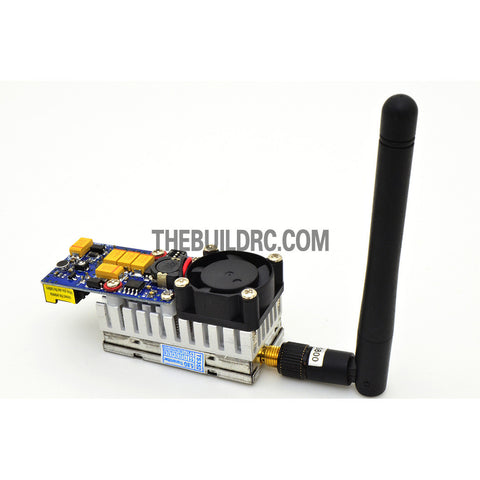

This 5.8G 500mW 8 Channel AV Transmitter features a high power output for longer range with your FPV models. With its audio/video inputs and video output, this is a great unit for use with your FPV/OSD system. It also offers a compact size with built in heatsink and cooling fan to ensure your components stay cool.

Features:
5.8G Technology 5645MHz~5945MHz
Built-in microphone audio pick up device
8 Channel selectable

Specification:
Video Format: NTSC/PAL
Output Impedance: 50 Ohm
Output Power: 26~28 dBm
Operating Voltage: DC 7~15V
Supply Current: 500mA
Operating Temperature: -10~+85 ??C
Audio Carrier Frequency: 6.5MHz
Video Input Level: 0.8~1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5~2.0 Vp-p
Audio Input Impedance: 10K Ohm
Antenna Connector: RP-SMA

5800MHz 500mW TS352 Wireless Video Audio AV Sender Channels & Frequencies

5.8G : 5705,5865,5665,5645,5885,5905,5925,5945MHZ

Compabible with the True 640x480 2.4ghz and 5.8ghz FPV goggles and the RC305 and RC805 5.8Ghz receivers.
