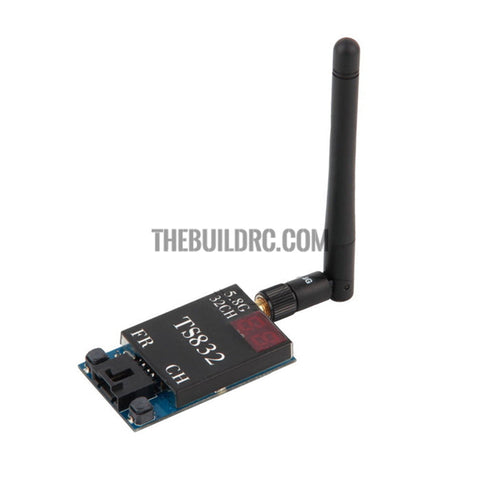

Boscam FPV 5.8G 32CH 600mW 7.4-16V Wireless AV Transmitter TS832

Description:

• Item Name: TS832 transmitter
• Antenna Gain: 2db
• Frequency: 5.8G
• Transmitting Power: 600mA
• Power Input: 7.4-16V (3S Lipo suggested)
• Video Format: NTSC / PAL Auto
• Working Current: 220mA at 12V
• Audio Bandwidth : 6.5M
• Video Bandwidth: 8M
• Weight: about 22g
• Dimension: 54x 32x 10mm(excluding antenna)
• Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug

Features:

• 32 channels choice to get the best transmitting quality
• Compatible with A,B,E and F frequency bands
• Smaller size with lighter weight.
• 32 CH compatible to all FPV 5.8g receivers.
• 5.8G 600mW 32 Channels AV wireless FPV transmitter
• Super small 200mA current for 600mW wireless transmitter power.
• 600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna.

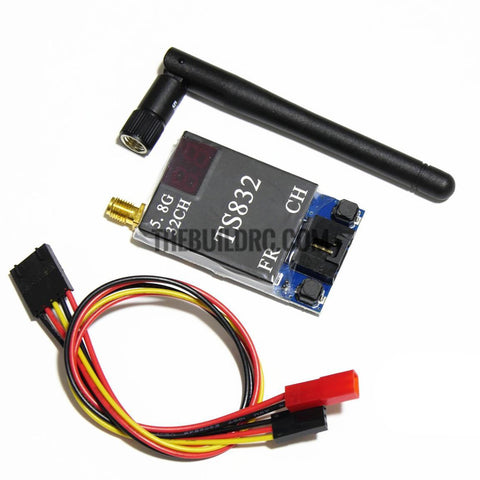

Package Included:

• cable x 1
• antenna x 1
• TS832 transmitter x 1
