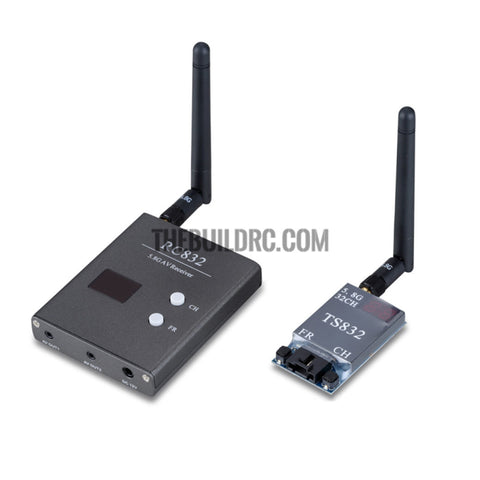

Boscam FPV 5.8G 32CH 600mW 7.4-16V Wireless AV Transmitter TS832 and Receiver RC832
Description:

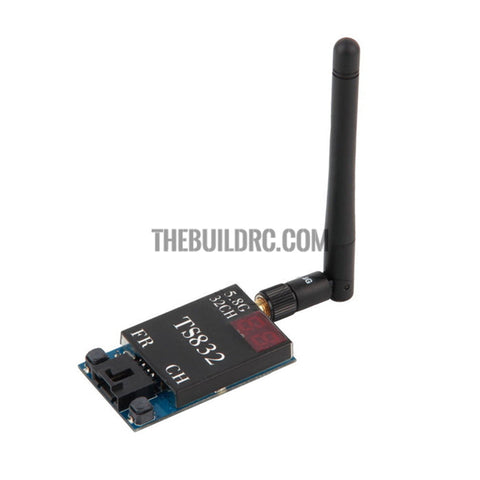

- Item Name: TS832 transmitter
- Antenna Gain: 2db
- Frequency: 5.8G
- Transmitting Power: 600mA
- Power Input: 7.4-16V (3S Lipo suggested)
- Video Format: NTSC / PAL Auto
- Working Current: 220mA at 12V
- Audio Bandwidth : 6.5M
- Video Bandwidth: 8M
- Weight: about 22g
- Dimension: 54x 32x 10mm(excluding antenna)
- Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug
Description:

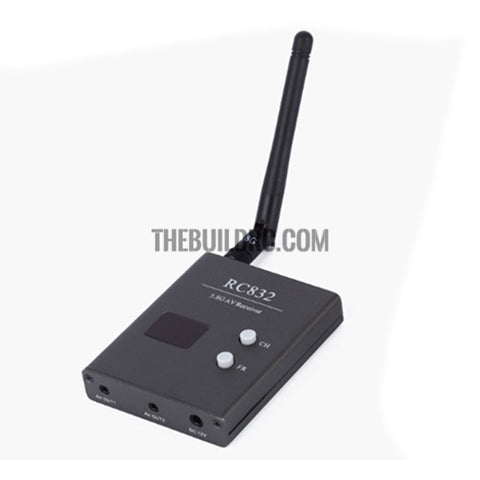

- Item Name: RC832 receiver
- Antenna Gain: 2db
- Antenna Impedance: 50??
- Video Impedance: 75??
- Video Format: NTSC/PAL auto
- Power Input: 12V
- Working Current: 200mA max
- Dimension: 80x 65 x15mm
- Weight: about 85g
- Connector: receiver module side RP-SMA jack, antenna RP-SMA plug
Features:
- 32 channels choice to get the best transmitting quality
- Compatible with A,B,E and F frequency bands
- Smaller size with lighter weight
- 32 CH compatible to all FPV 5.8g transmitter.
- Super small 200mA current for 600mW wireless transmitter power.
- 600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna.
Package Included:
- cable x 1
- antenna x 1
- TS832 transmitter x 1
- RC832 receiver x 1
