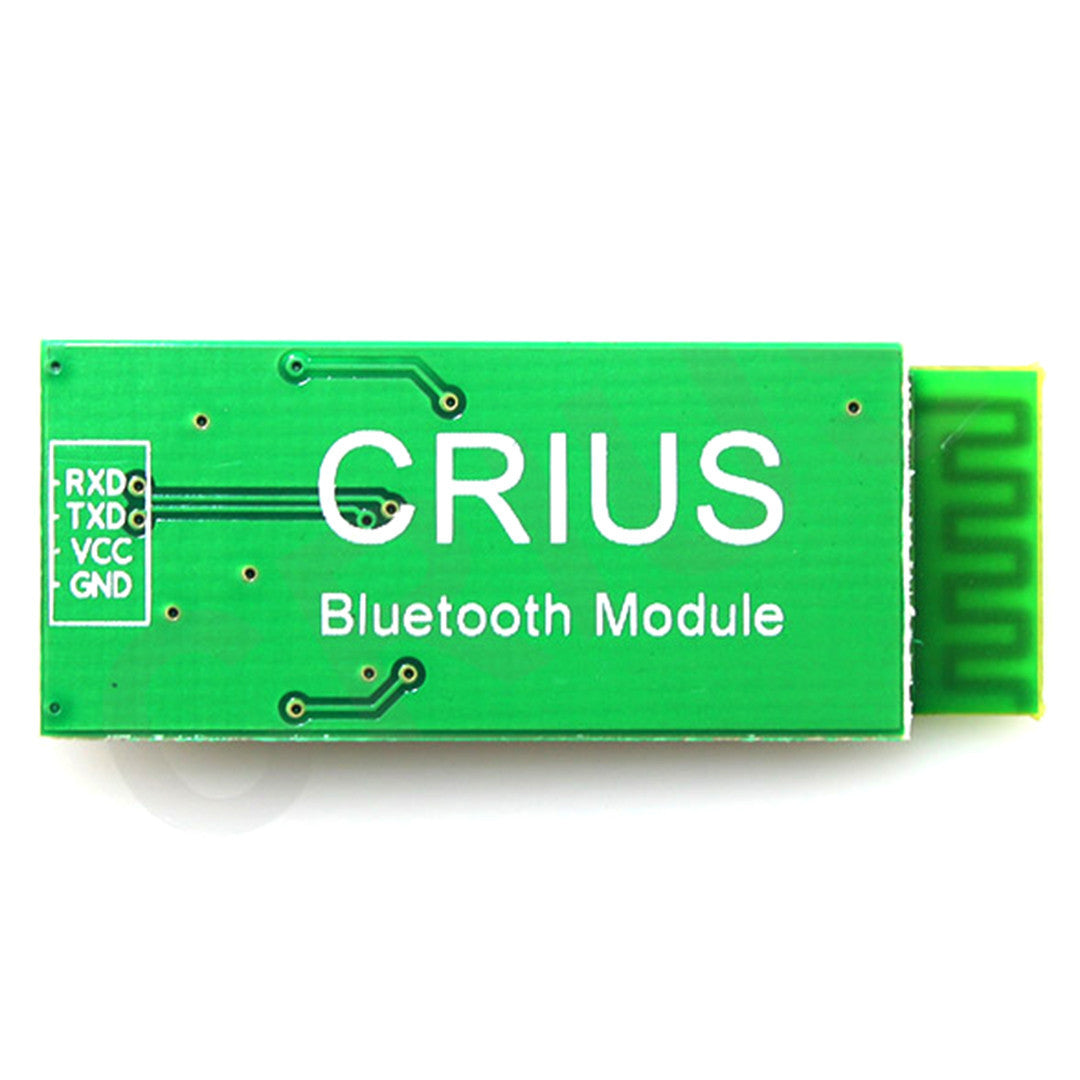

Crius MWC Multiwii Bluetooth Module Parameter Configurator Module

  • $9.20


Description:

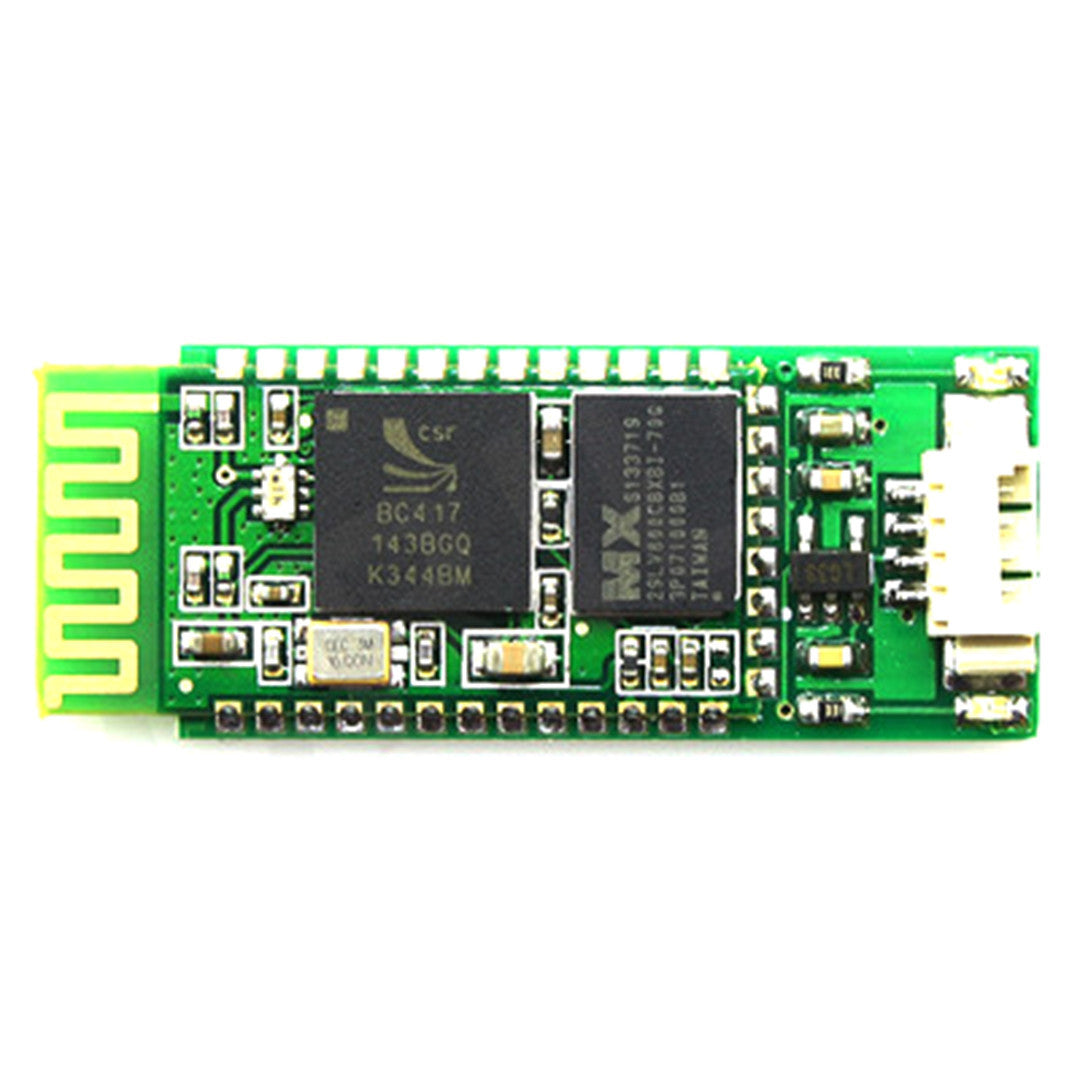

  • CRIUS Blutooth Module adopts UK's CSR bluetooth slave module, with high stability and stable signal with regulated power supply,
  • Can connect to UART TTL port of MWC directly,
  • Easy to adjust parameters this bluetooth module compatible with all MWC flight controller

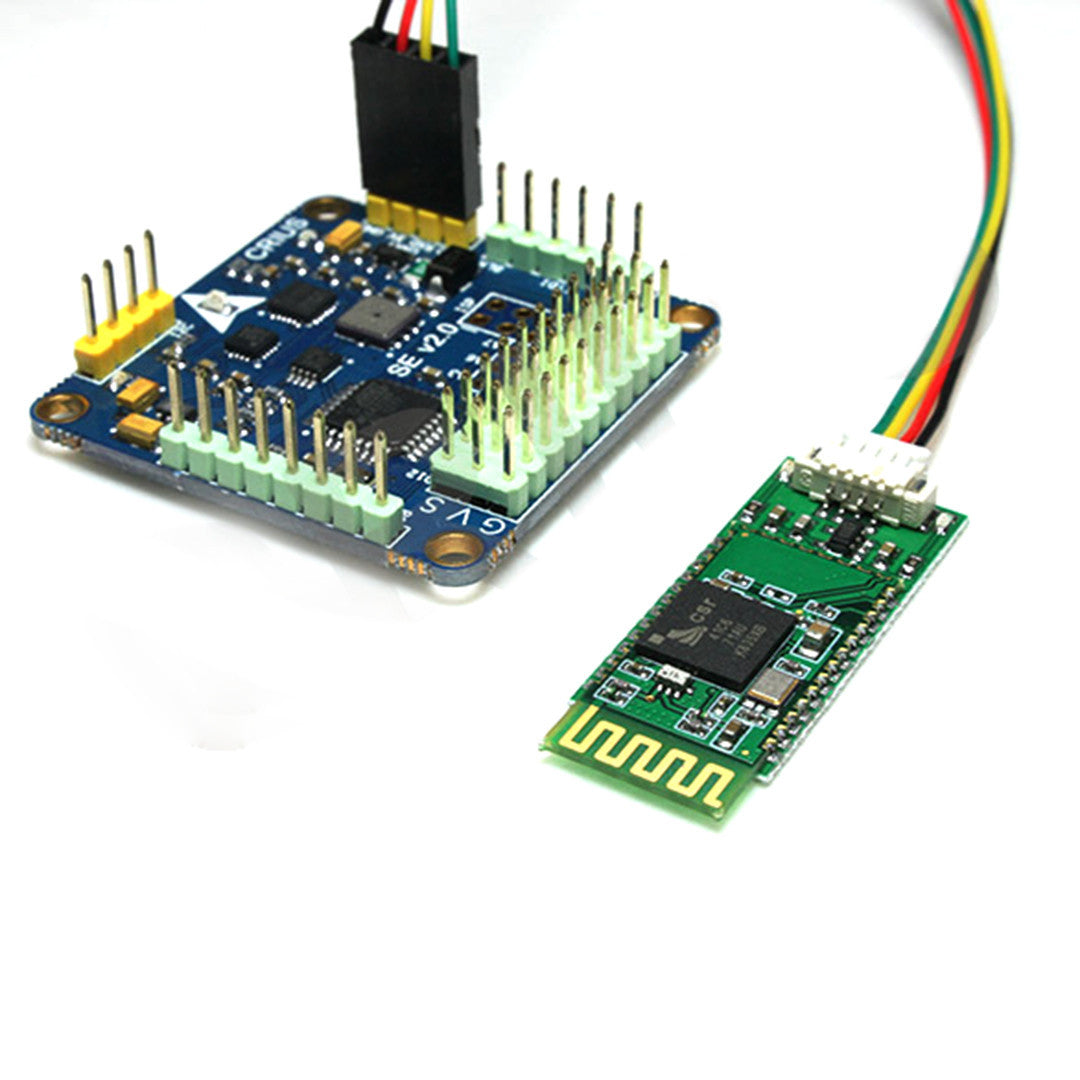

  • 328P flight control Board connect UART Serial port and Maga Flight control Board connect Serial 0 Port Support transparent data transfer function,also can be used with other devices

Function:

  • Read and adjust all PID parameters
  • Read and adjust AUX1/AUX2 Switch setting
  • Monitor remote controller signal and output control signal of flight controller board
  • Monitor signal between GPS output signal and Gyro,accelaration meter,pressure meter and other sensors
  • Calibrate magnetic resistance and accelaration sensor
  • Read and save MWC parameter Via cellphone
  • Support screenshot

LED State indicator:

  • Green: power supply indicator,continuous lighting when power on
  • Red: flashing indicates no connection,continuous lighting indicates connect success

Package included:

  • 1 x Blutooth module

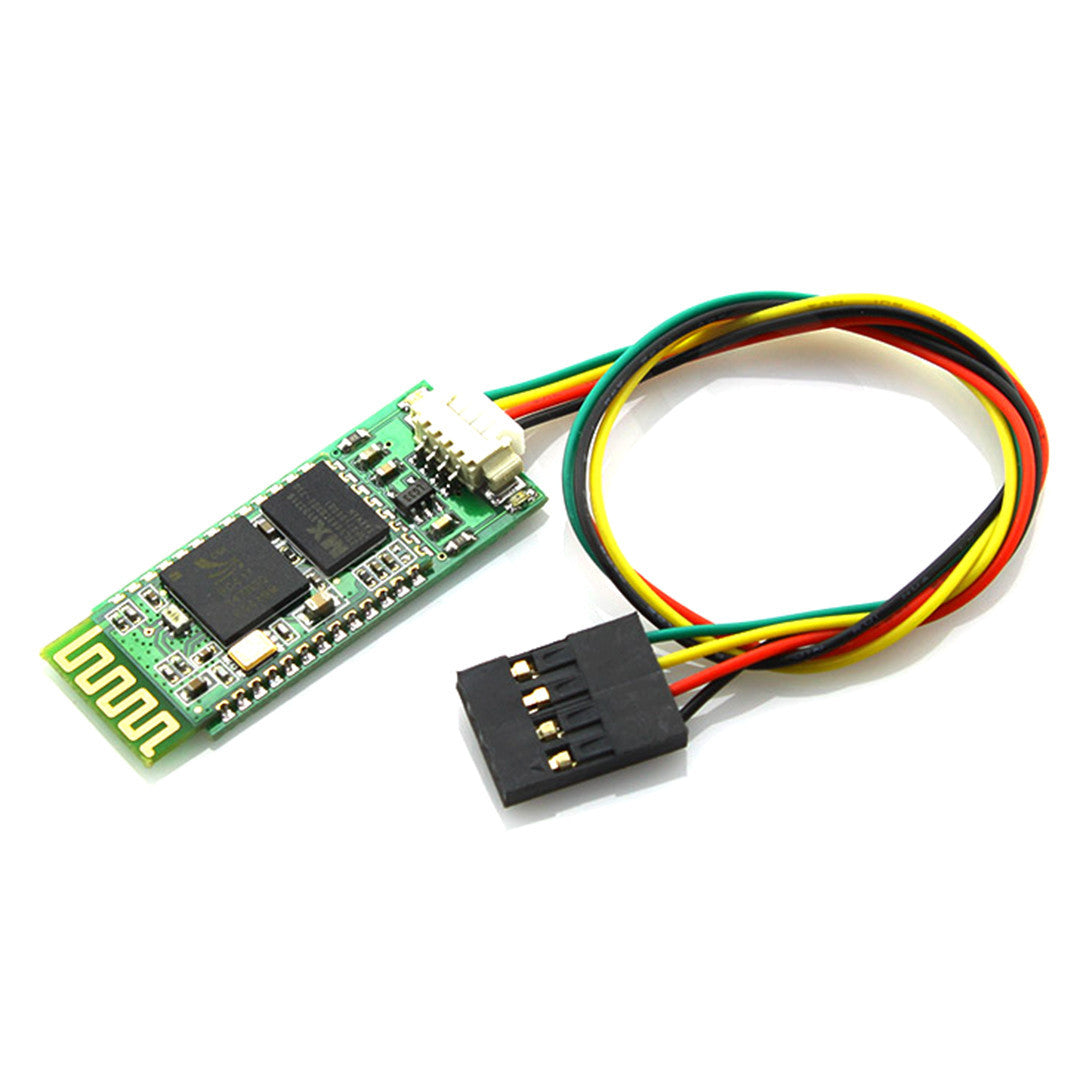

  • 1 x 4 pin connect cable (200mm)
