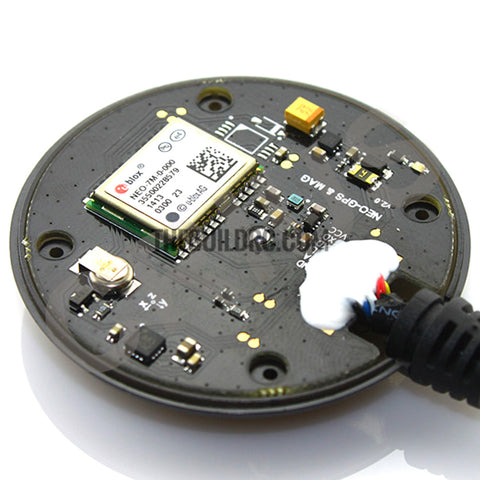

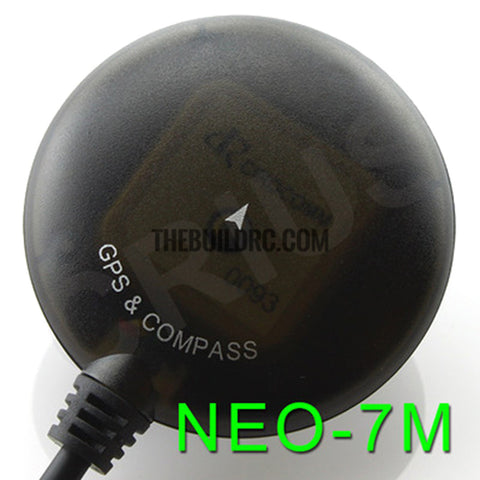

CRIUS NEO-GPS & MAG V2 NEO-7M Module With Compass

  • $29.05


Specifications:

  • Dimension: 50 x 50mm
  • GPS: U-Blox NEO-7M
  • EEPROM: No
  • Cable: Molex 1.25mm-5Pin/4Pin
  • Backup SII XH414 Capacitor
  • Default Baud rate: 9600
  • Default refresh rate: 1Hz
  • Protocol: NMEA

Features:
  • 25*25mm ceramic antenna, with low noise amplifier and filter
  • EMI process method, add resistance in IN/OUT, compatible with 5V level input
  • With reverse polarity protection
  • With Green location indicator
  • Round protective shell
  • 1.25 plug, APM direct use. Pixhawk changeable

NOTE:NEO-7M itself with ROM instead of FLASH, also does not support such as external EEPROM memory, so the GPS applies only to the APM/PIXHAWK flight controller which GPS parameters can be automatically configured,cannot be used for MWC flight controller which GPS parameters can be automatically configured.If you need to use it for pirates flight controller,you should modified cable by yourself.


Package Included:

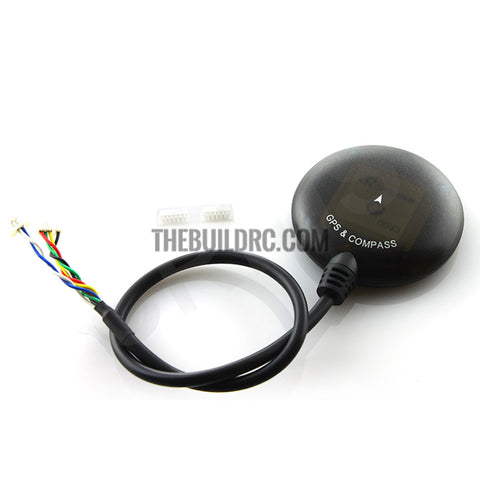

  • 1 X NEO-7M GPS and MAG V2
  • 1 X 4Pin+5Pin cable 280mm
  • 2 X 1.25-6Pin Plug Case
