DJI Naza - M Lite + GPS Combo for Multiotor Controller

  • $239.80


Features:

  • All-in-One Design
  • GPS Module Available/Accurate Position Hold
  • Low Voltage Protection
  • 6 Supported Multi-rotor Types
  • Advanced Attitude Stabilize Algorithm
  • Intelligent Orientation Control (IOC)
  • Motor Arm and Motor Dis-arm
  • Built-in Gimbal Stabilization Function
  • Multiple Flight Control Mode/Intelligent Switching
  • Failsafe Mode
  • Support Futaba S-Bus and PPM Receiver
  • Remote Adjustment

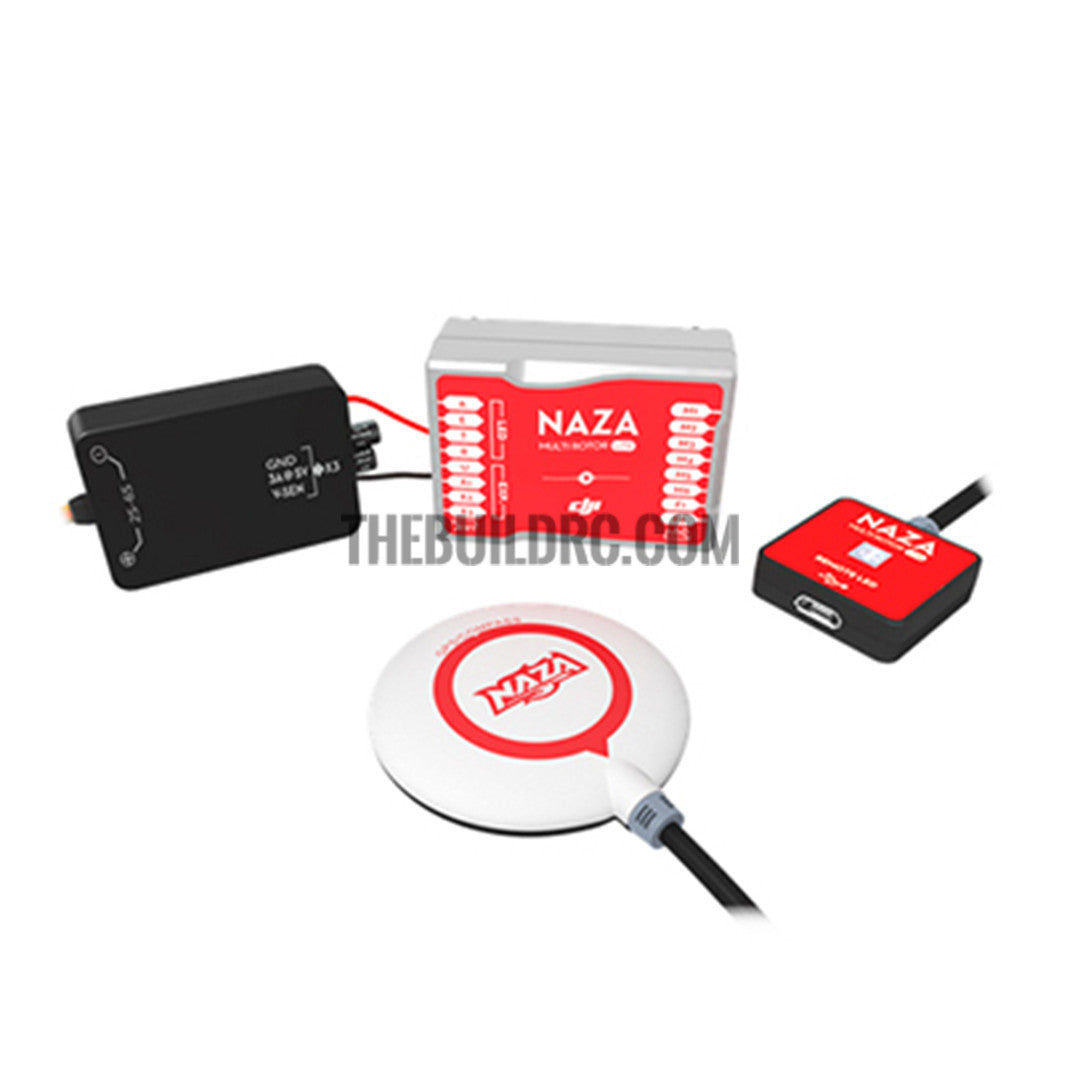

Included:

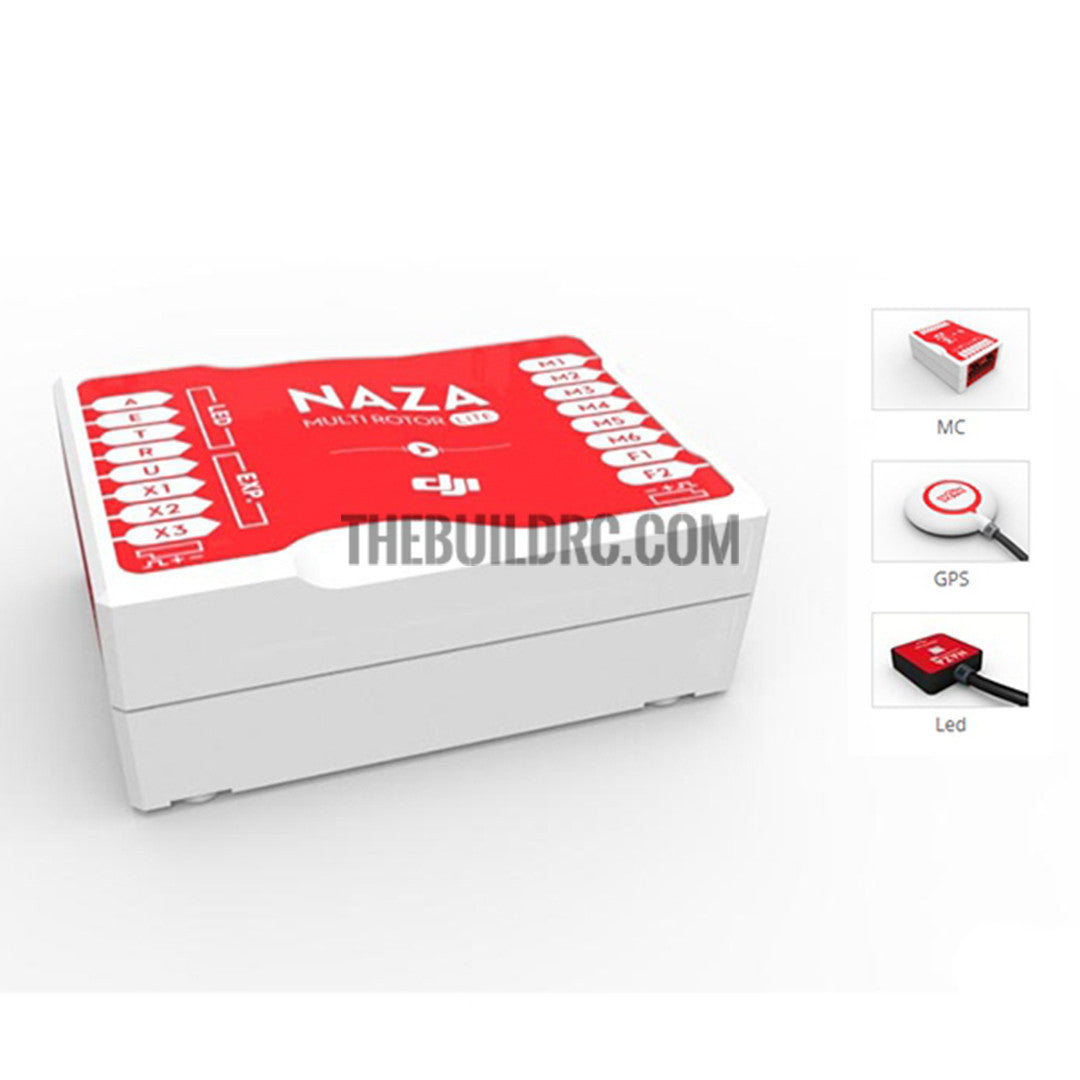

  • Naza-M Lite Main Controller
  • DJI GPS/Compass Module
  • DJI V-SEN LED Module
  • USB Data Cable
  • All necessary mounting hardware/connection leads

Specs:

  • Supported Multi-Rotor: Quad-rotor I4, X4, Hex-rotor I6, X6, IY6, Y6
  • Supported ESC output: 400Hz refresh frequency
  • Recommended Transmitter: PCM or 2.4GHz with minimum 4 channels
  • Working Voltage Range: MC: 4.8V~5.5V, VU Input: 7.2V~26.0V (recommended 2S~6S Lipoly)
  • Power Consumption: MAX: 1.5W (0.3A @ 5V), Normal: 0.6W (0.12A @ 5V)
  • Operating Temperature: -10??C ~ 50??C
  • Assistant Software System Requirement: Windows XP sp3/Windows 7/Windows 8
  • Dimensions: MC: 45.5x31.5x18.5mm, VU: 32.2x21.1x7.7mm, GPS and Compass: 46mm (diameter)x9mm
  • Weight: MC: 25g, VU: 20g, GPS: 21.3g

Flight Performance:

  • Hovering Accuracy (GPS Mode): Vertical: +/-0.8m, Horizontal: +/-2.5m
  • Max Yaw Angular Velocity: 200??/s
  • Max Tilt Angle: 45??
  • Ascent/Descent: +/-6m/s

Item Included:

  • Naza-M Lite Flight Controller
  • SBEC/LED Indicator Module
  • GPS Compass Module
