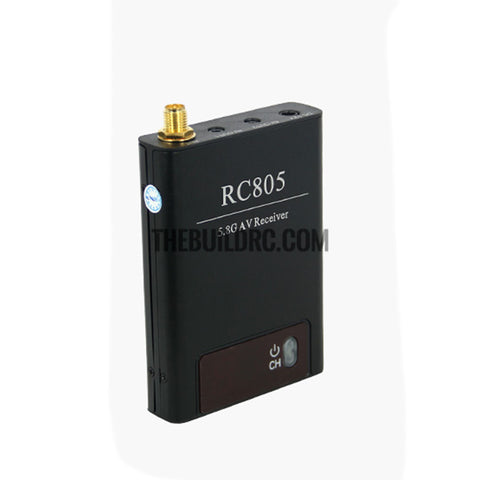

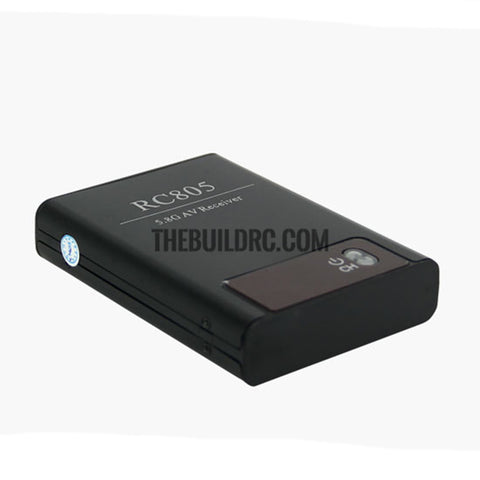

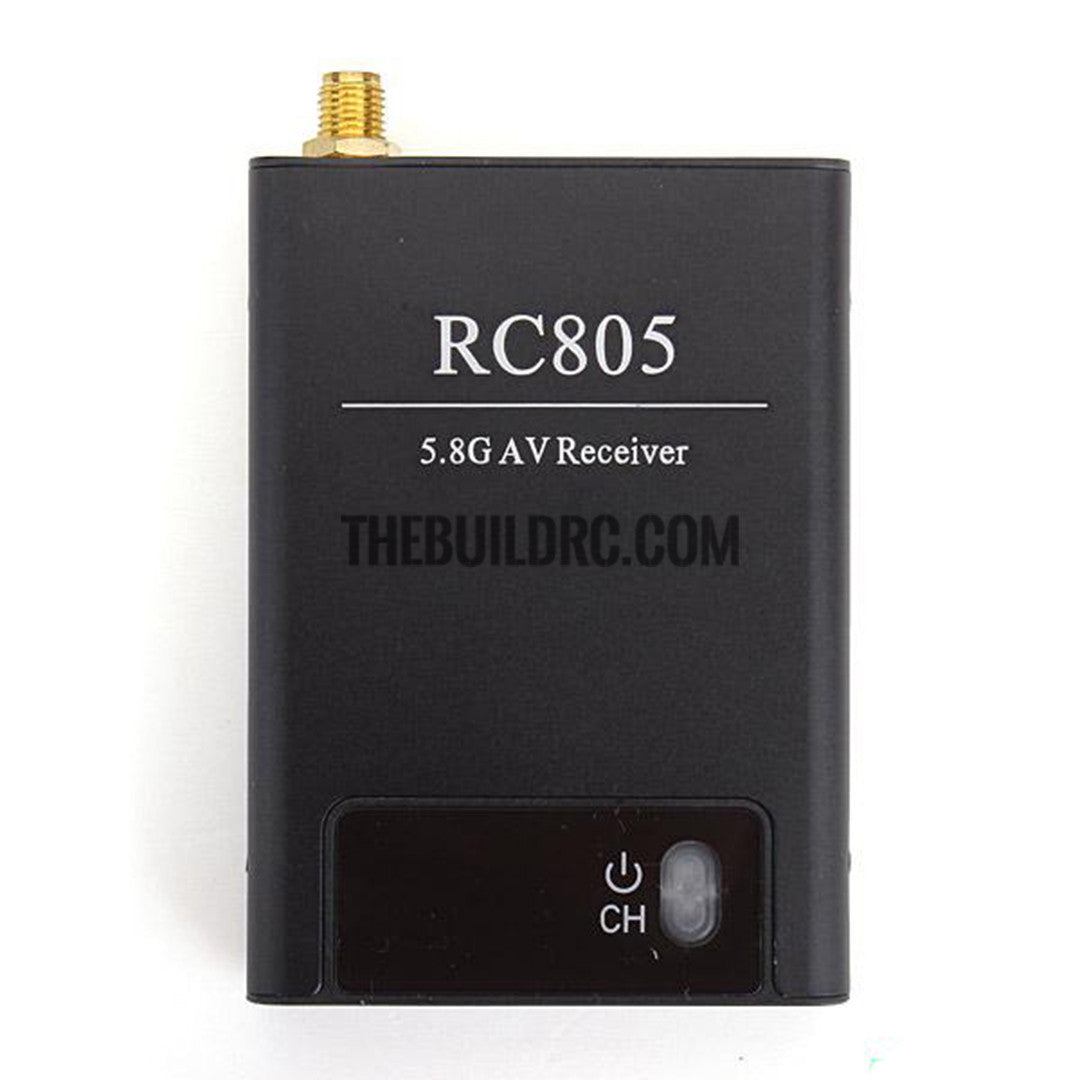

FPV 5.8G 8CH 200mW AV Wireless Receiver RC805

  • $20.84


  • Item name: RC805 receiver
  • Receiving sensitivity: < -90dBm
  • Receiving frequency: ISM 5.8GHz 8CH

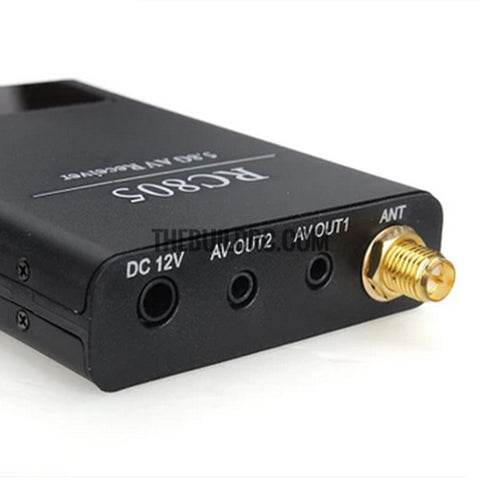

  • Antenna port: 50ohm RP-SMA
  • Antenna Gain: 2dBi
  • Power supply: DC12V 220mA
  • Video output level: 1Vp-p @ 75ohm
  • Audio output level: 1Vp-p @ 10Kohm
  • Dimensions: 72.5x54.2x15.5mm
  • Working frequency: 5705 5685 5665 5645 5885 5905 5925 5945
  • Weight: 52g

Features:

The RC805 5.8Ghz AV Receiver features a digital channel display and jumperless, one press channel selection. This receiver also includes an additional AV output for video recording while using FPV goggles.

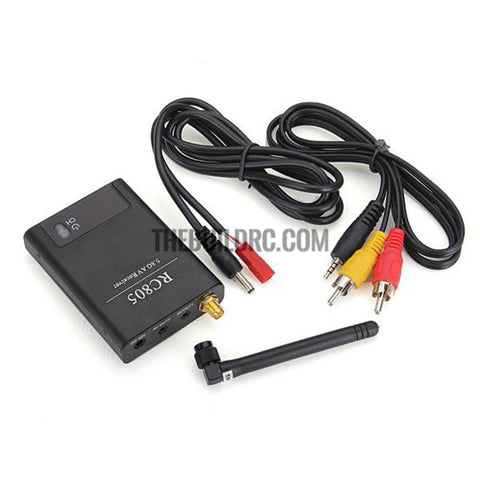

Package Included:

  • 1 x RC805 Receiver
  • 1 x Antenna
  • 1 x AV ouput
  • 1 x Power cable (JST)
