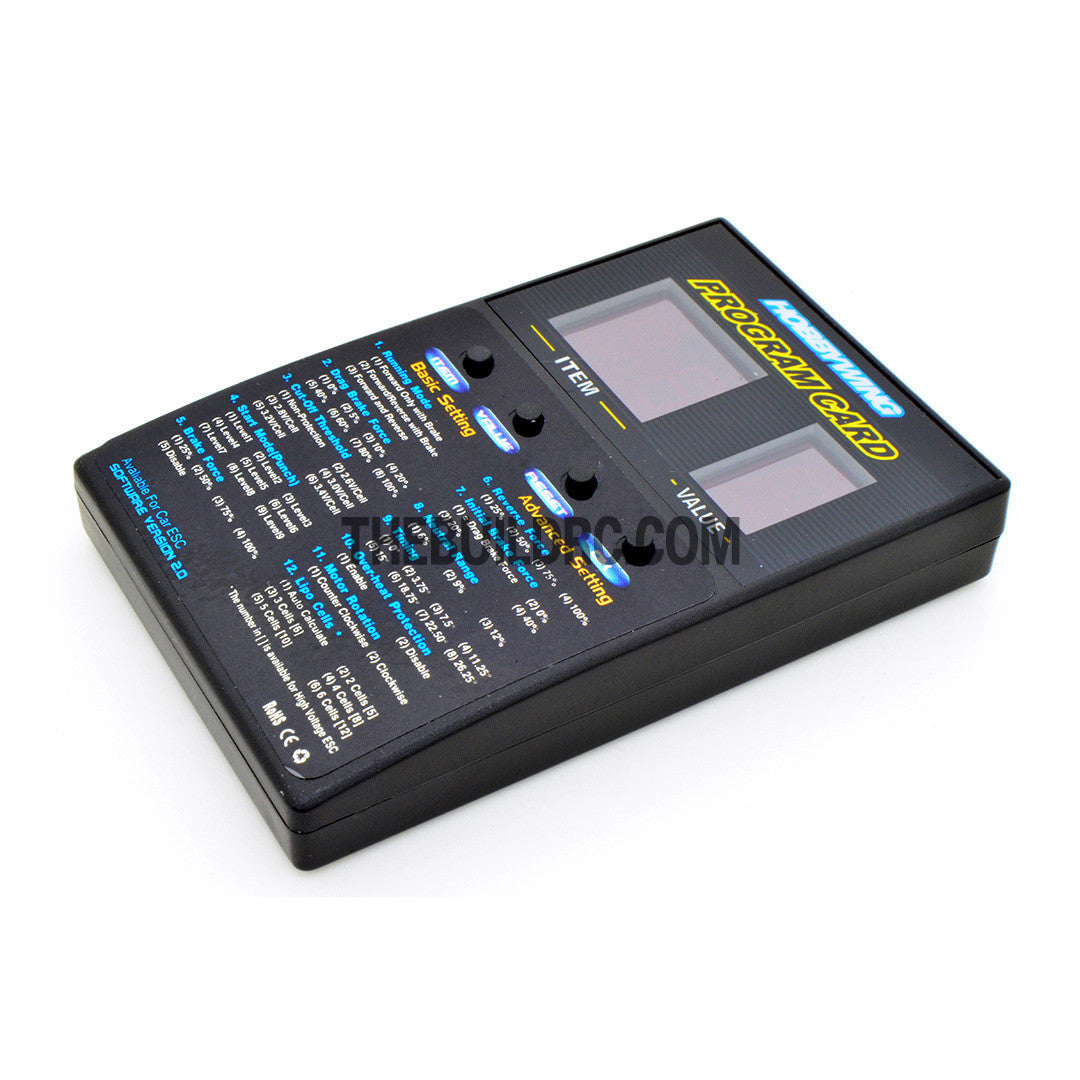

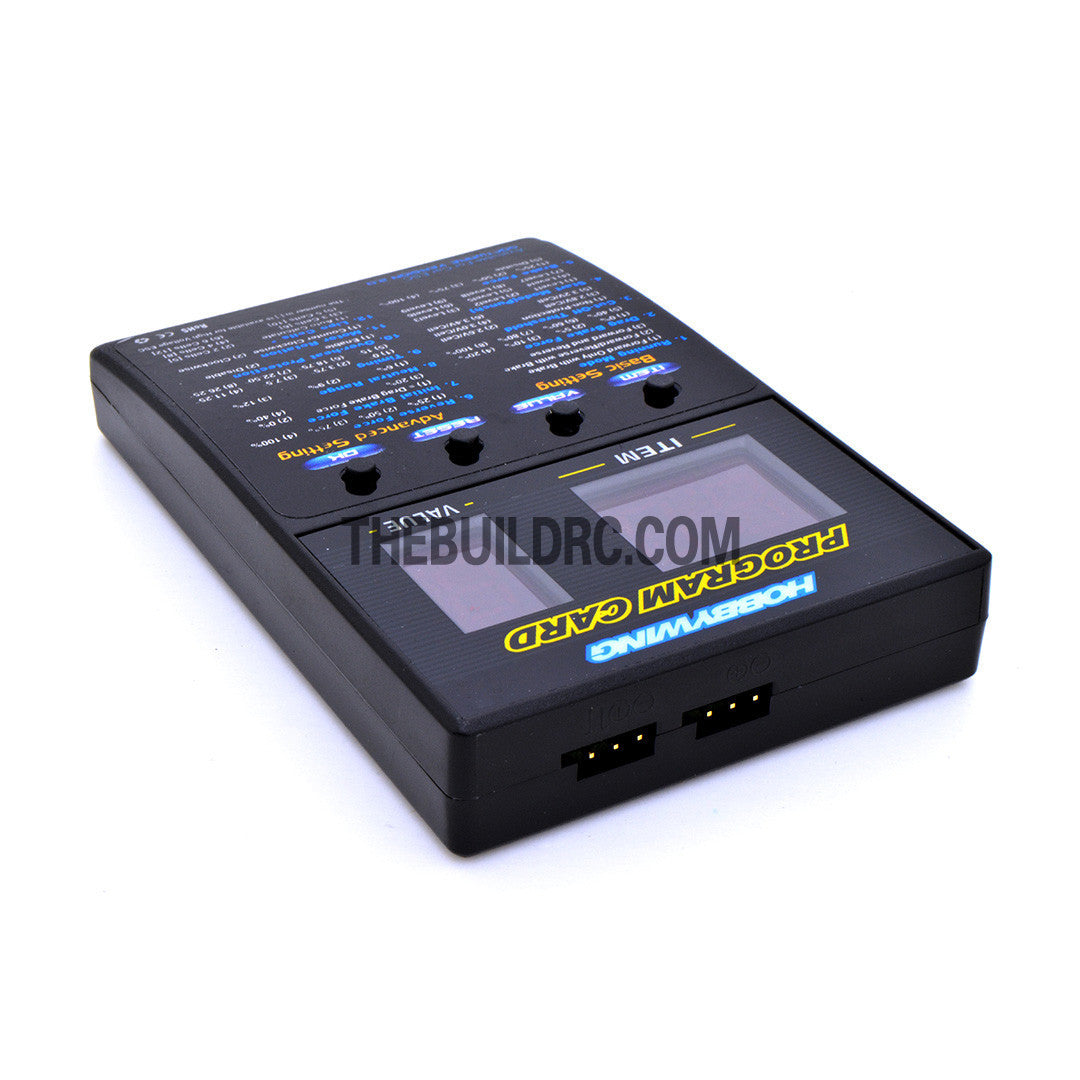

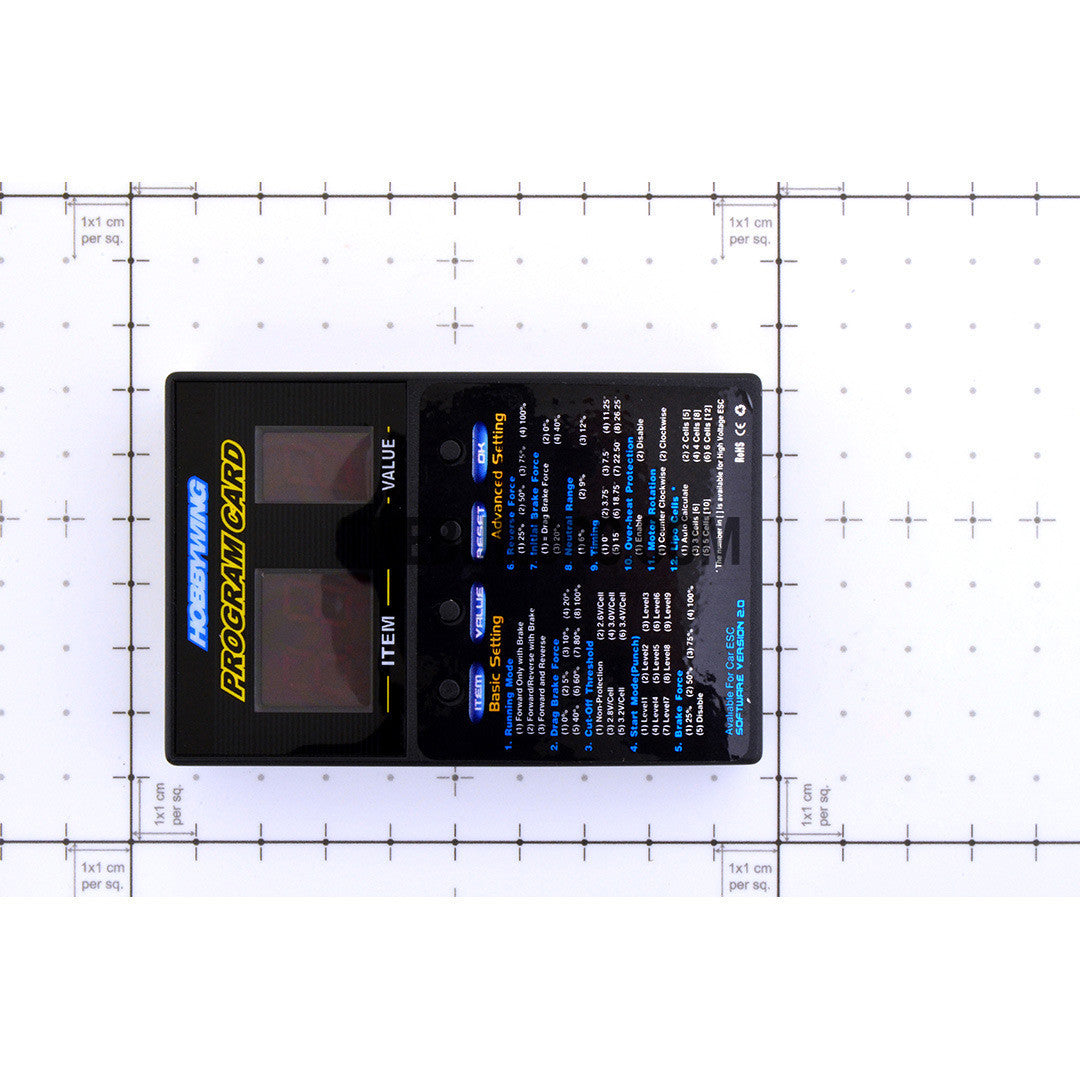

HobbyWing Brushless Motor ESC System Programming Card
This program card is used to set the programmable parameters of brushless ESC, it has a friendly user interface to set the programmable parameters very easily. It is pocket-sized, so you can bring it to the racing or flying field conveniently.??
??
This program card has 3 kinds of front panel to suitable for the following ESCs:
- Product Number: ??LED_PC2A?? ?? ?? This is available for PLATINUM series aircraft/heli ESC;
- Product Number: ??LED_PC2B?? ?? ?? This is available for SEAKING series boat ESC;
- Product Number: ??LED_PC2C?? ?? ?? This is available for XERUN and EZRUN series (Version 2.0 ) car ESC;??
The hardware and software of the above 3 models of program cards are identical, so you can print the different front panel when using the program card with different ESC.??
Programmable Items
Programmable Items
- Brake Setting??
- Battery Type??
- Low Voltage Protection Mode (Cutoff Mode)??
- Low Voltage Protection Threshold (Cutoff Threshold)??
- Start Mode??
- Timing??
- Governor Mode??
- Motor Type??
- PWM FrequencProgrammable Itemsy??
- Built-In BEC Output??
- Motor Load??
- Lipo Cells
