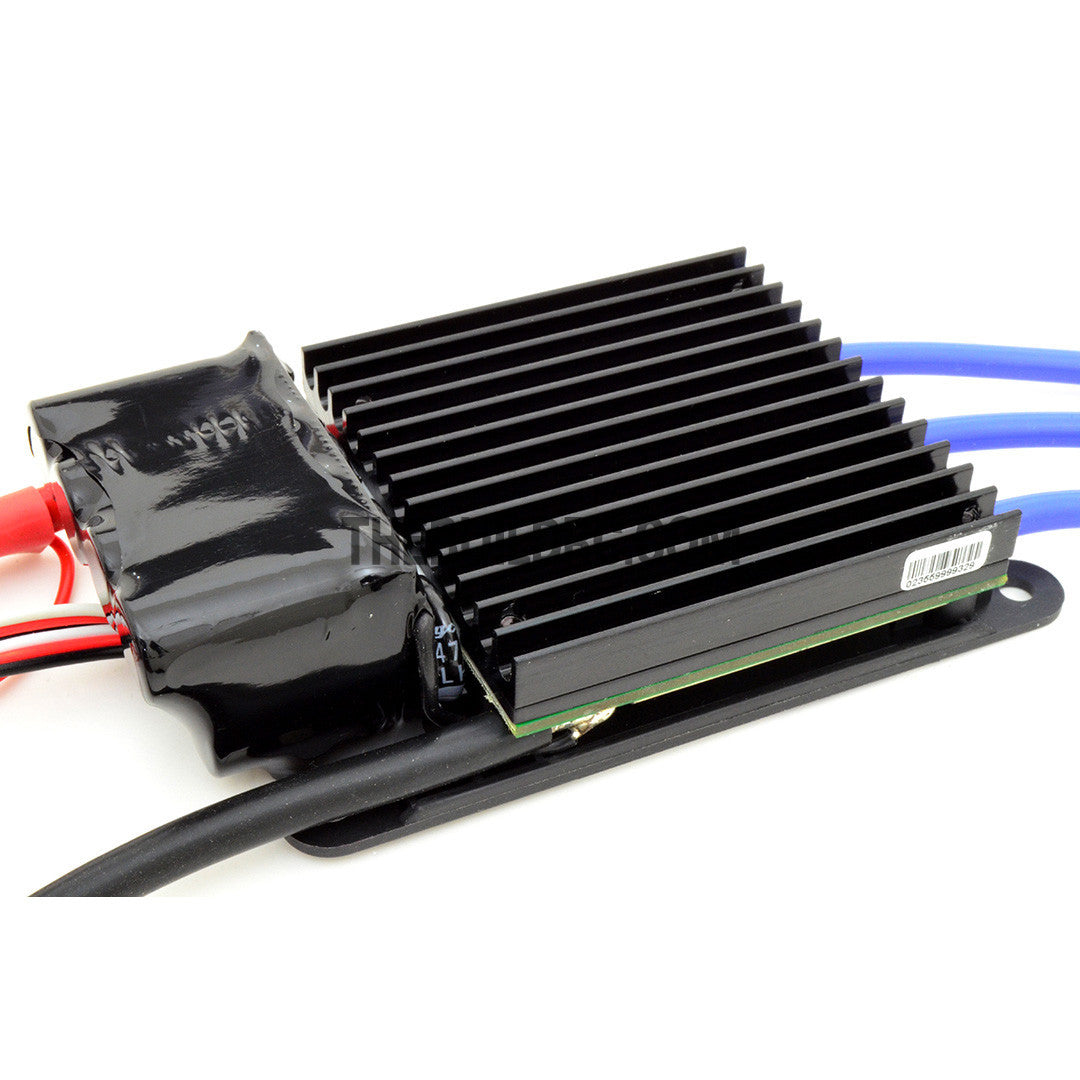

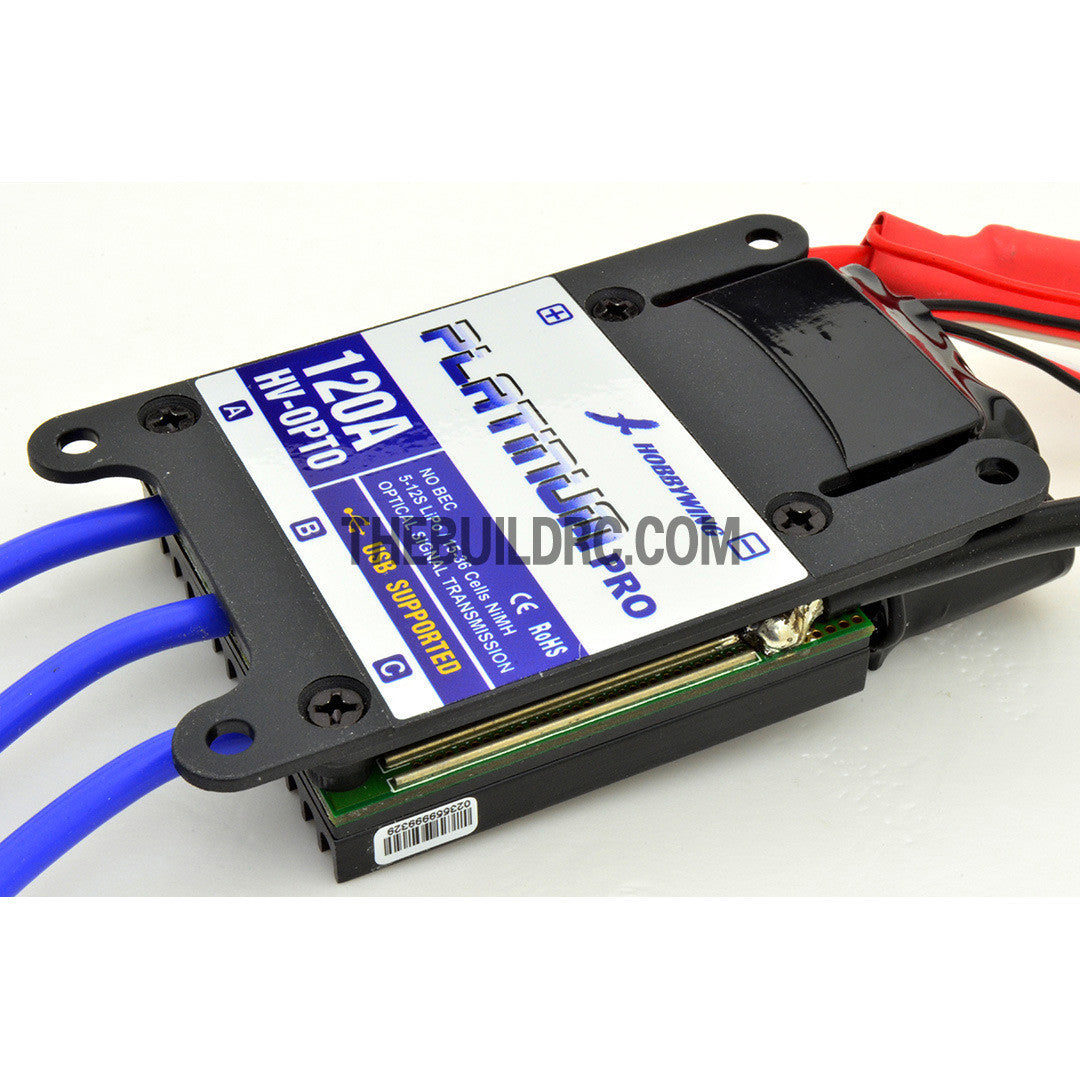

HobbyWing Platinum Pro 120A-HV Programmable ESC for R/c Plane Glider Helicopter (80030060)

  • $234.50


  • High performance microprocessor, best compatibility with all kinds of motors, highest driving efficiency.
  • Anti-spark circuit eliminates sparks when the battery pack is connecting with the ESC.
  • Three types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.
  • Smooth, linear, quick and precise throttle response.
  • Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
  • The throttle signal is transferred through optical/electrical coupled system to avoid electromagnetic interference.
  • Perfect governor mode for helicopter.
  • Wide-opened heat-sink has the best heat dissipation effect.
  • The firmware of the ESC can be updated through the built-in USB adapter in the Professional LCD Program Box.
  • User programmable.
  • Multiple program methods supported: transmitter stick, Digital LED Program Card, Multifunction LCD Program Box, Professional LCD Program Box, PC software. Very easy to program the ESC at home or at the flying field.


  • Output:?? Continuous 120A, burst 180A up to 10 seconds.
  • Input Voltage:?? 5-12 cells lithium battery or 15-36 cells NiMH battery.
  • BEC: None.
  • Refresh rate of the throttle signal: 50Hz to 432Hz.
  • Control Signal Transmission: Optical/electrical coupled system.
  • Max Speed:?? 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.(BLM = BrushLess Motor)
  • Size:?? 88mm (L) * 55mm (W) * 15mm (H).
  • Weight:?? 125g.
