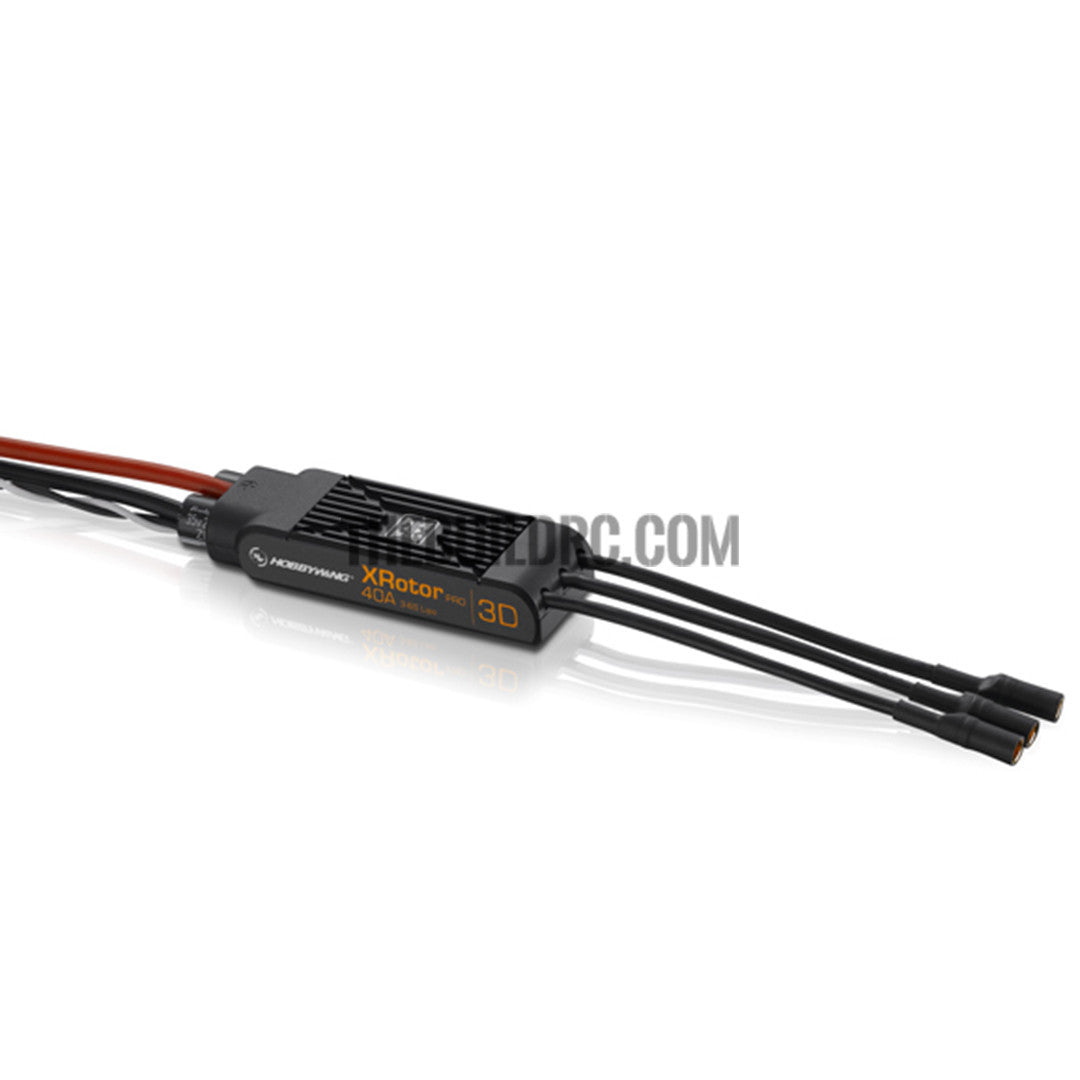

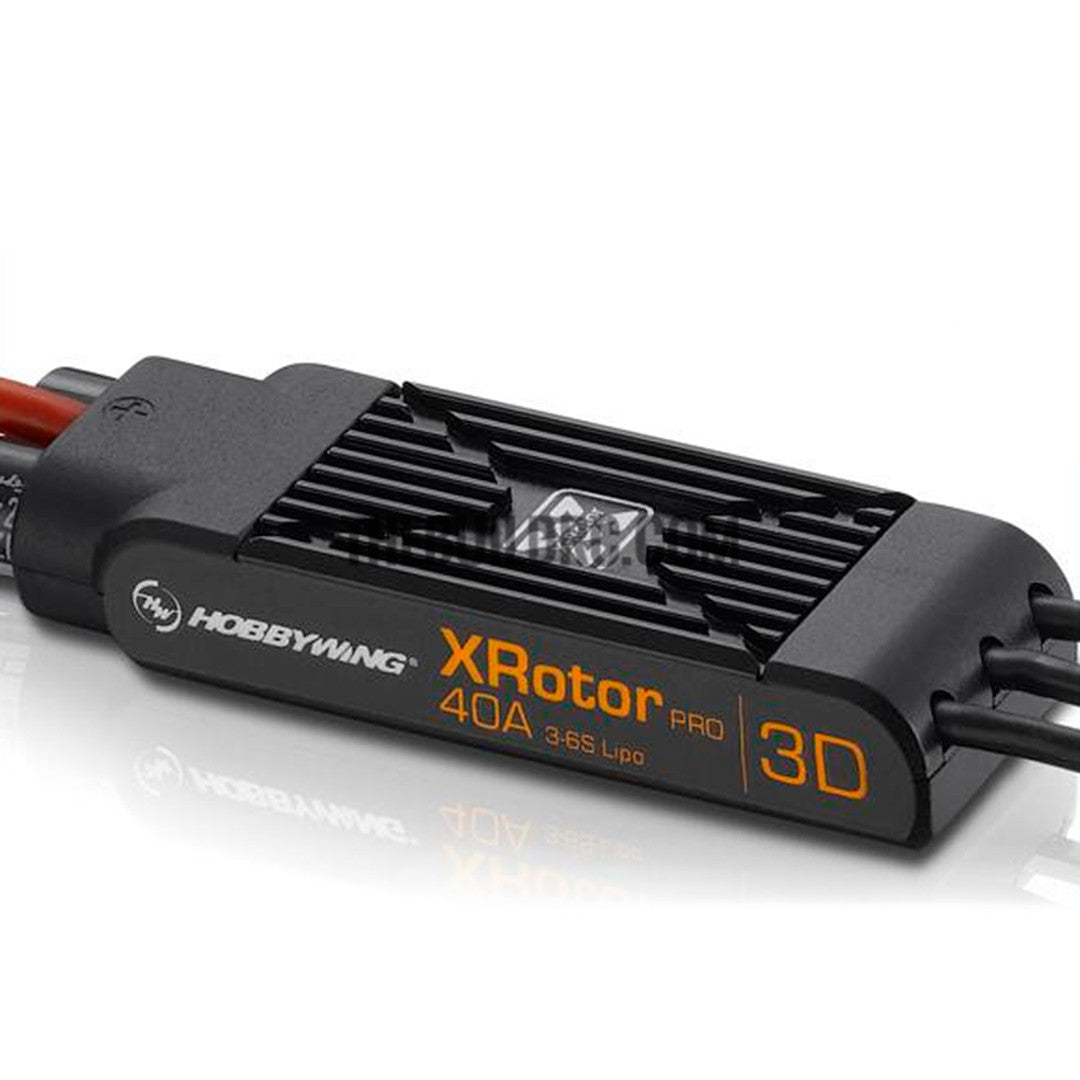

HobbyWing XRotor PRO 40A 3D Pilot ESC (Dual Pack)
- Special core program for multi-rotor controllers greatly improves throttle response.
- Specially optimized software for excellent compatibility with disc-type motors.
- All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive.
- The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
- Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals)
- Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
- MOSFET with extra-low resistance brings high performance and great current endurance.
|Model: XROTOR ESC||40A||PRO 40A||PRO 40A (COB)||PRO 40A-3D|
|Item include||2 ESCs||2 ESCs||2 ESCs||2 ESCs|
|Multicopter Applicable||Class Quadcopter 550/650||Class Quadcopter 550/650||Class Quadcopter 550/650||3D / Racer Class Quadcopter 550/650|
|Input||2S-6S||3-6S Lipo||3-6S Lipo||3-6S Lipo|
|Bullet connector size||3.5mm||3.5mm||3.5mm||3.5mm|
|BEC Type / BEC Output||No||No||No||??|
|Programming item||Timing (High/Intermediate)||ON/OFF of the DEO function||ON/OFF of the DEO function||ON/OFF of the DEO function|
|Size (mm) / Weight (g)||
68 x 25 x 8.7mm 26g (0.92oz)
|68 x 25 x H 8.7mm ~12.4mm @ capacitor 26g (0.92oz) 50g||68 x 25 x H 8.7mm ~12.4mm @ capacitor 26g (0.92oz) 45g||66x21.8x11mm 50g|
