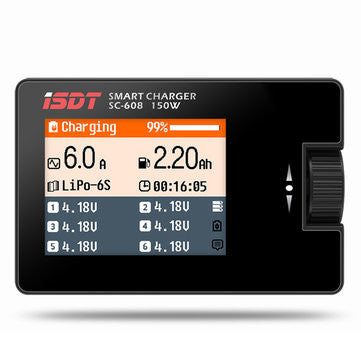

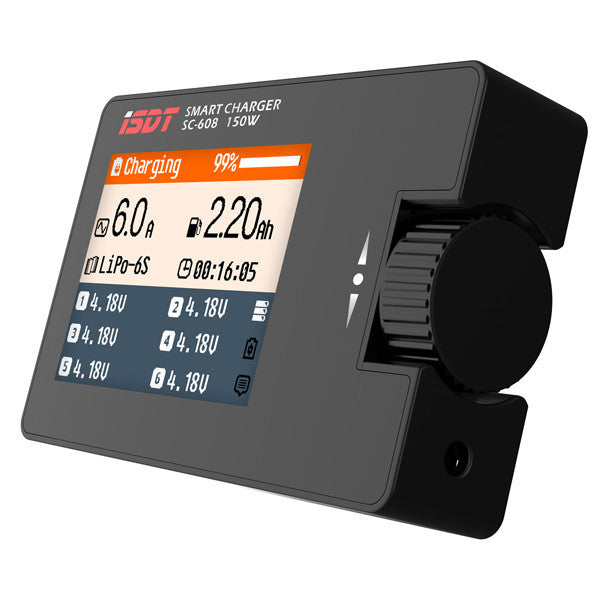

iSDT SC608 150W 8A MINI Smart LCD Battery Balance Charger
Innovative SCOS (Smart Charger Operating System) User interface, simplest operating, hi-efficiency energy-converting, extremely impact, and more...
Specifications:
- Input Voltage: DC 9~32V
- Output Voltage: 0~30V
- Charge Current: 0.1~8.0A
- Discharge Current: 0.1~3.0A
- Max Charge Capacity: 150W
- Max Discharge Capacity: 5W
- Balancing Current: 500mA/cell
- Balance Cells: 2-6S
- Supported Batt. Type: LiFe/Lilon/LiPo/LiHv (1???6S)
- NiMH/Cd(1???18S)
- Pb(1???12S)
- Display: 2.4" 320x240 IPS LCD
- Operating Temperature: 0~40??C
- Storage Temperature: -20~60??C
- Dimensions: 88x58x21 mm
- Weight: 110g
2.4" IPS Display
262K colors Hi-brightness monitor, up to 178??visible angle, brings outstanding display overcomes other chargers

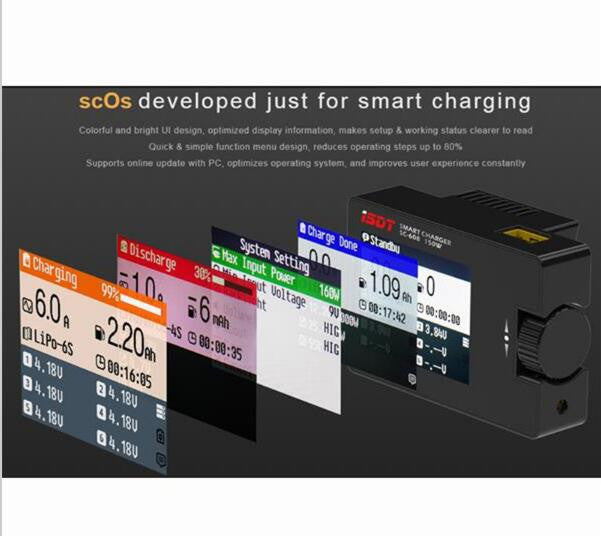

SCOS (Smart Charger Operating System) developed just for smart charging
- Colorful and bright UI design, optimized display information, makes setup and working status clearer to read
- Quick and simple function menu design, reduces operating steps up to 80%
- Supports online update with PC, optimizes operating system, and improves user experience constantly
- Hi converting efficiency, extreme power-volume ratio
- Hi speed and efficiency synchronous power supply, good heat-conduction with pure cooper, active heat-sinking with hi-speed fan, make it possible to improve power by 300%
Single Knob Shuttle Control
Tired to fumble and push with finger tips? Difficult press now is replaced with smooth and natural single shuttle control, one touch to set, makes charging with SC-608 a joyful experience.
Outstanding Design

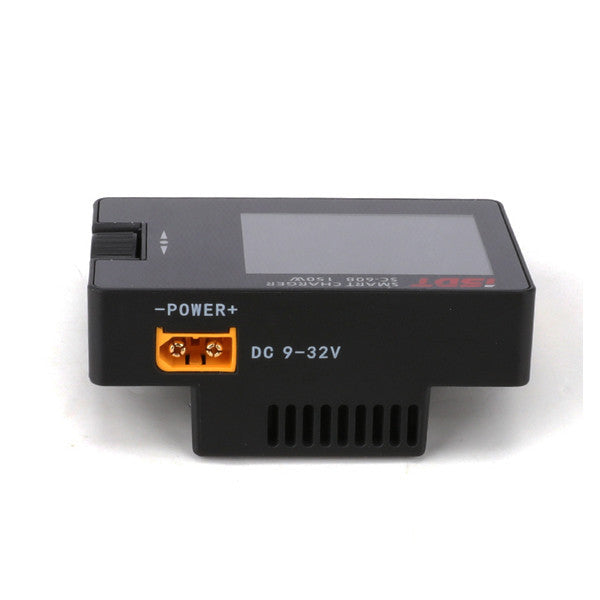

With unique design, possible to reduce the charger size as small as a cigarette pack, while improves the output capacity up to 150w att. Use XT-60 connector for input and output, connect battery more safely. Hi-speed fun and delicate air-duct, make it possible to reduce volume remarkably while guarantee adequate heat-sinking
ARM 32bit Hi-speed CPU,ARM Cortex-M4,32bit ultra fast calculations,Data processing capacity enhanced by 20 times
Operation Instruction:
- Connect power supply, wait for initiation self-check to finish
- Set parameters suitable for your battery through display and shuttle knob
- Enjoy smart and quick charging with SC608.
Package Includes:
1 x iSDT SC-608 150W 8A MINI Smart LCD Balance Charger
