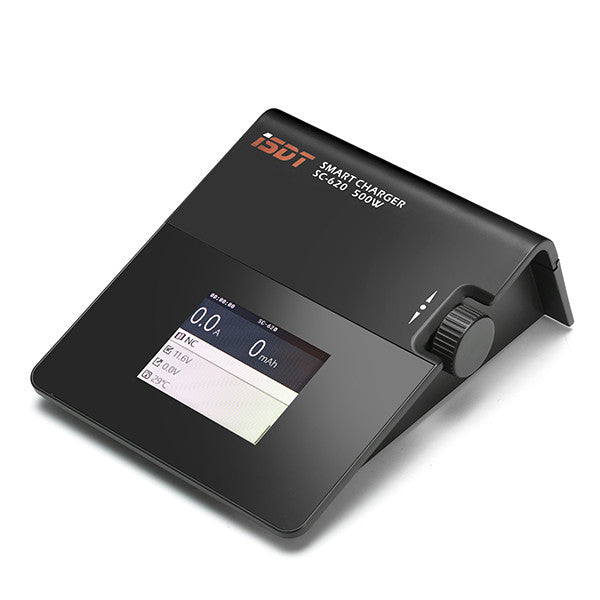

iSDT SC620 500W 20A MINI Smart LCD Battery Balance Charger for RC Models

Balance Charger 500W 20A Intelligent LCD Lipo NiMh Battery for RC Drone Multicopter ISDT SC-620

Features:

• 2.4" IPS Display
• 262K colors Hi-brightness monitor,enhance luminance and contrast ratio,which could save power 15%
• Equip with RAM power saving refreshed and CABC backlight control,backlight power saved 30%
• Up to 178??visible angle,cuts reflections on screen amd feel comfortable
• SCOS (Smart Charger Operating System) developed just for smart battery charging
• Colorful and bright UI design,optimized display information, makes setup and working status clearer to read
• Quick and simple function menu design, reduces operating steps up to 80%
• Supporting online update with PC,optimizing operation system and improving user experience constantly

ARM 32bit Hi-speed CPU

• ARM Cortex-M4 32bit ultra fast calculations
• Data processing capacity enhanced by 20 times
• Powered by the ARM Cortex-M4, the SC-620 offers amazing speed with its 32-bit operation.
• This provides a 20-fold increase in data processing capacity when compared to traditional chargers.

Hi-converting efficiency,extreme power-volume ratio

• High speed and efficiency synchronous power supply and high Purity aluminium alloy cooling fins is used to ensure excellent transformation and reductions in heat,along with a high-speed mini-fan to provide active cooling with a 50% volume reduction and 300% power increase.

One-key shuttling

• Simple and natural shuttling movements have created an elegant replacement for clumsy point-and-touch finger operations.
• A single key is used for every function, providing a crisp and precise experience.

Expedite USB Interface

• Phones out of power. Don't worry, connect to USB,which will provide 5V/2A for phone charge
• No need to be troubled with ME without electricity

Internationalization, Multilanguage

Supporting multiple languages. Truly local and barrier-free usage

Outstanding Design

• The thinnest part is only 4mm, meanwhile the output power is increased to 500W
• Use EC5 terminal for input and output,connect battery more safely
• Hi-speed fan and delicate air duct,enable it to shrink volume remarkably while guarantee adequate heat-sinking

Specification:

• Input Voltage: DC9~30V
• Output Voltage: 0~30V
• Charge Current: 0.1~2A
• Discharge Current: 0.1~5.0A
• Max Charge Capacity: 500W
• Max Discharge Capacity: 15W
• Balanced Current: 1000mA/cell
• Balanced Cells: 2-6S
• USB Outout: 2.1A/5V
• Display: 2.4" 320x240 IPS LCD
• Usage temperature: 0~40 degree
• Storage temperature: -20~60 degree
• Dimension: 115x130x52 mm
• Weight: 289g

Supported Battery:

• LiFe/Lilon/LiPo/LiHv(1~6S)
• NiMH/Cd(1~18S) pb(1~12S)

Package included:

1 x iSDT SC-620 500W 20A MINI Smart LCD Balance Charger
