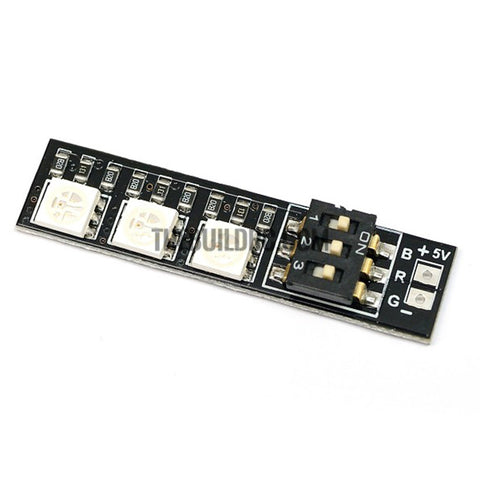

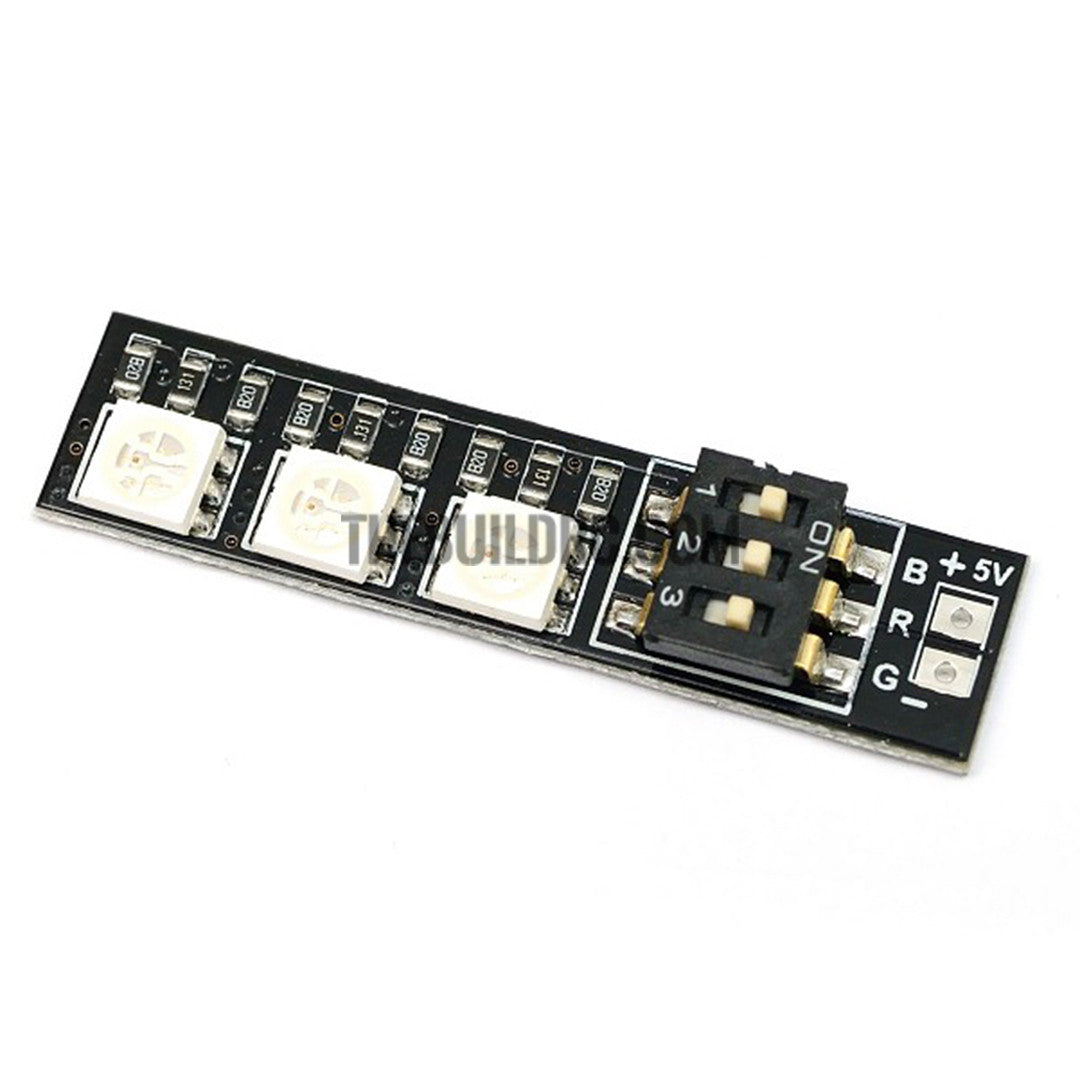

Matek RGB LED Board 5050 12V for FPV Multicopters & Planes RC Quadcopter
Specifications::
- INPUT: 4~6V DC

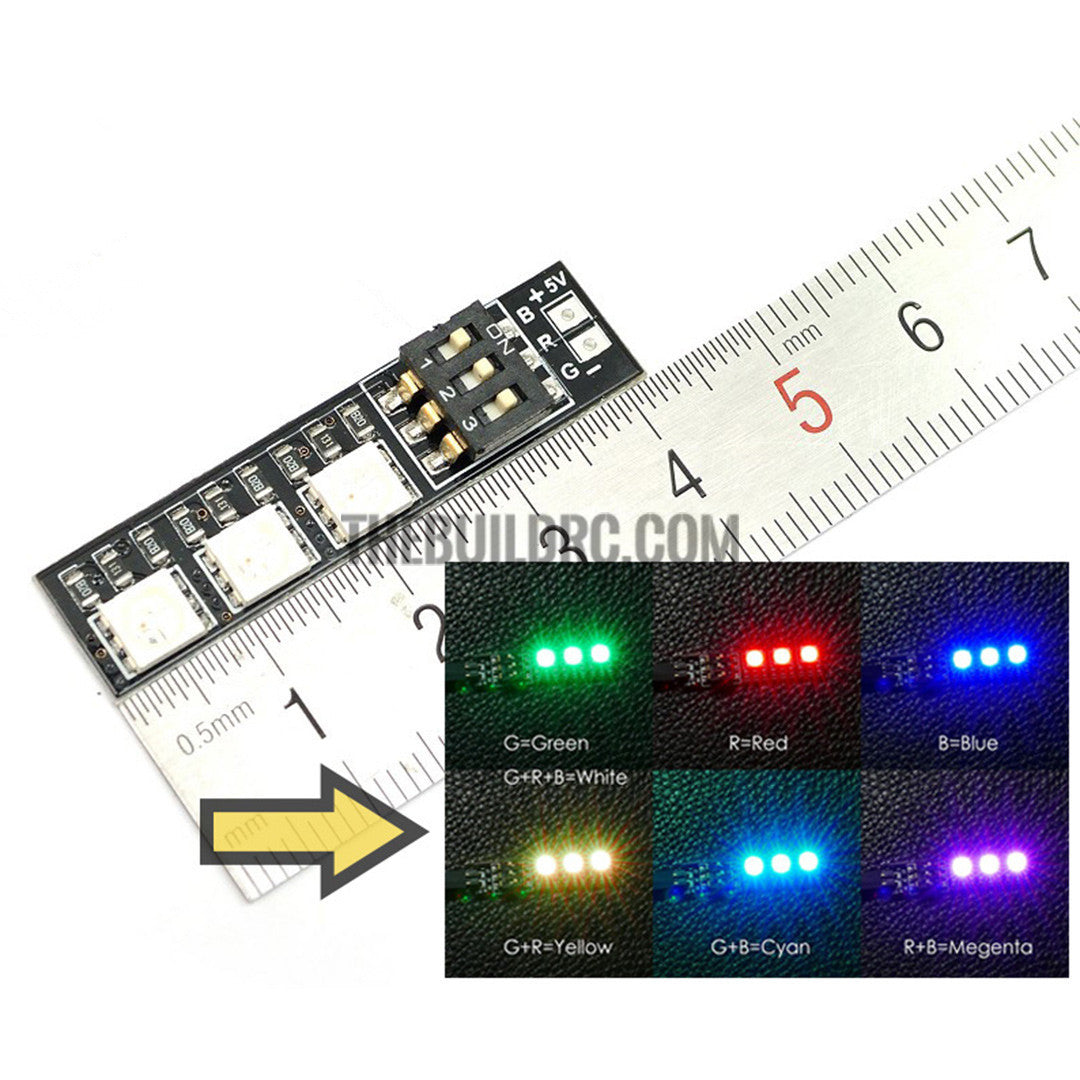

- Size: 42 x 10mm
- Weight: 2g

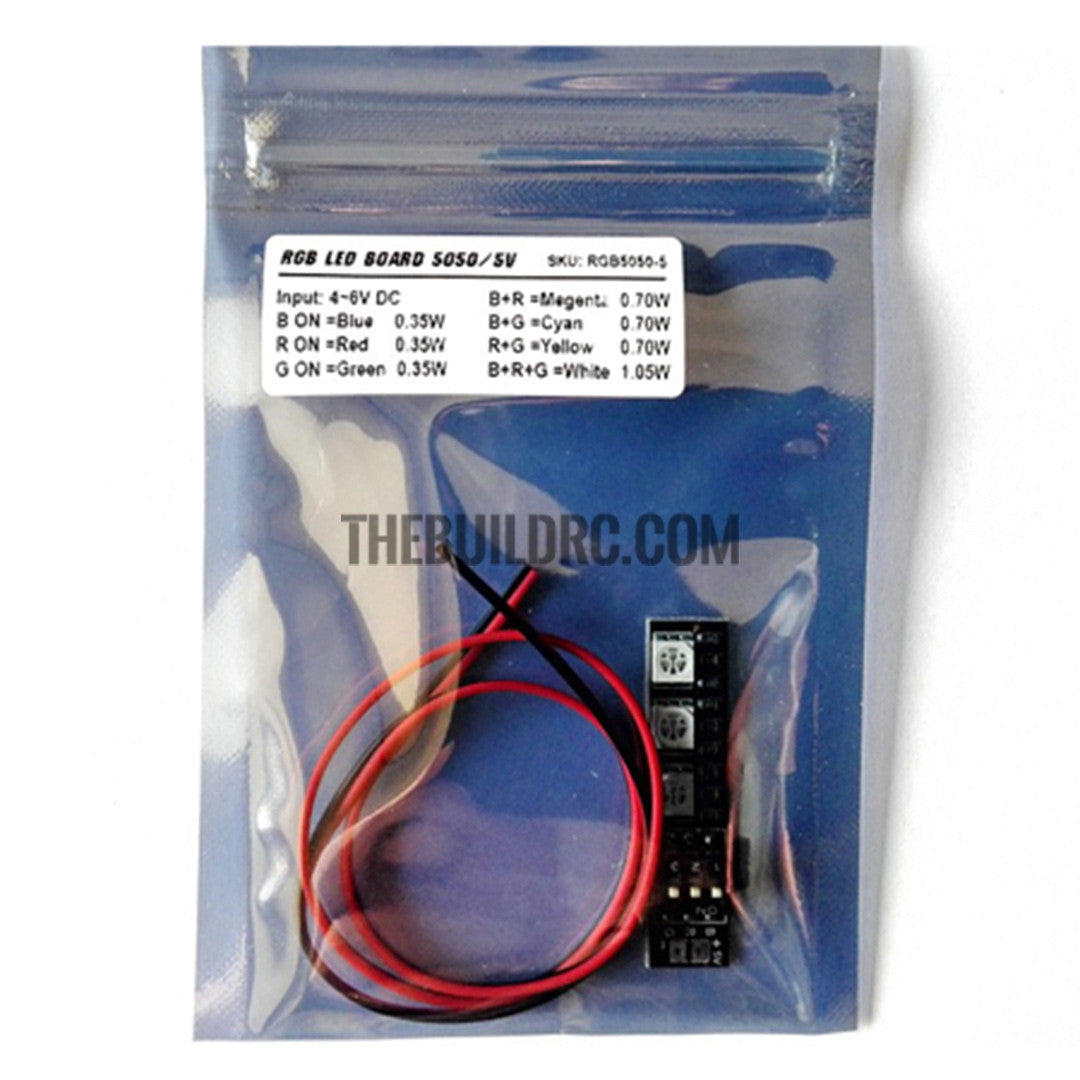

- Packing: LED BOARD 12V, 2pcs, Cable 0.3m
Notes:
- Comes with a 0.3m long cable, users can cut it to a suitable length;
- Be ware of the positive and negative poles, as well as the insulation;
- Switch the related codes to 'ON', seven colors are selectable;
- The input is in a range of 10~13V DC, can be powered by 3S Lipo or 12V BEC.

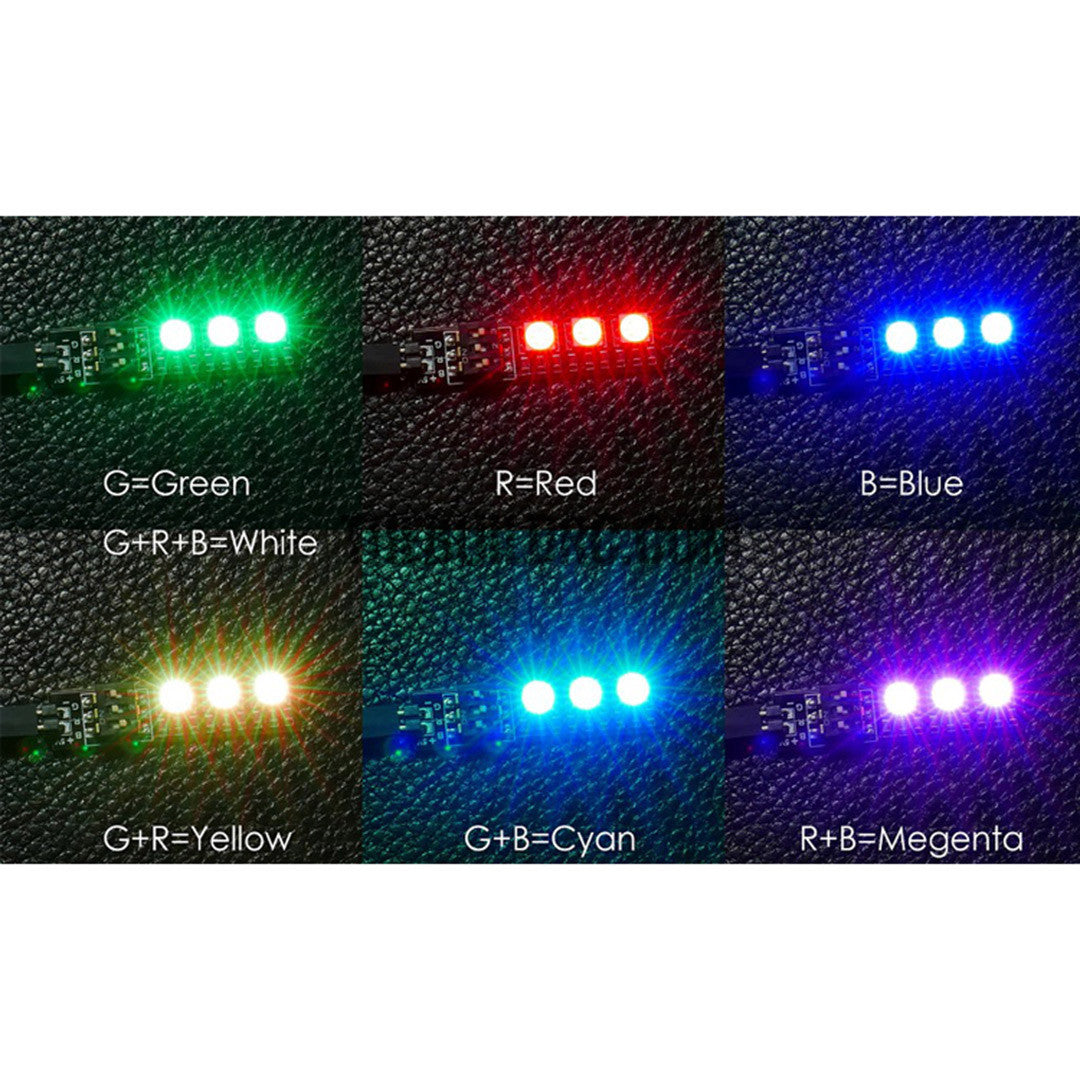

Selectable Colors:
- B ON =Blue, 0.35W
- R ON =Red, 0.35W
- G ON =Green, 0.35W
- B+R =Megenta, 0.70W
- B+G =Cyan, 0.70W
- R+G =Yellow, 0.70W
- B+R+G =White, 1.05W
