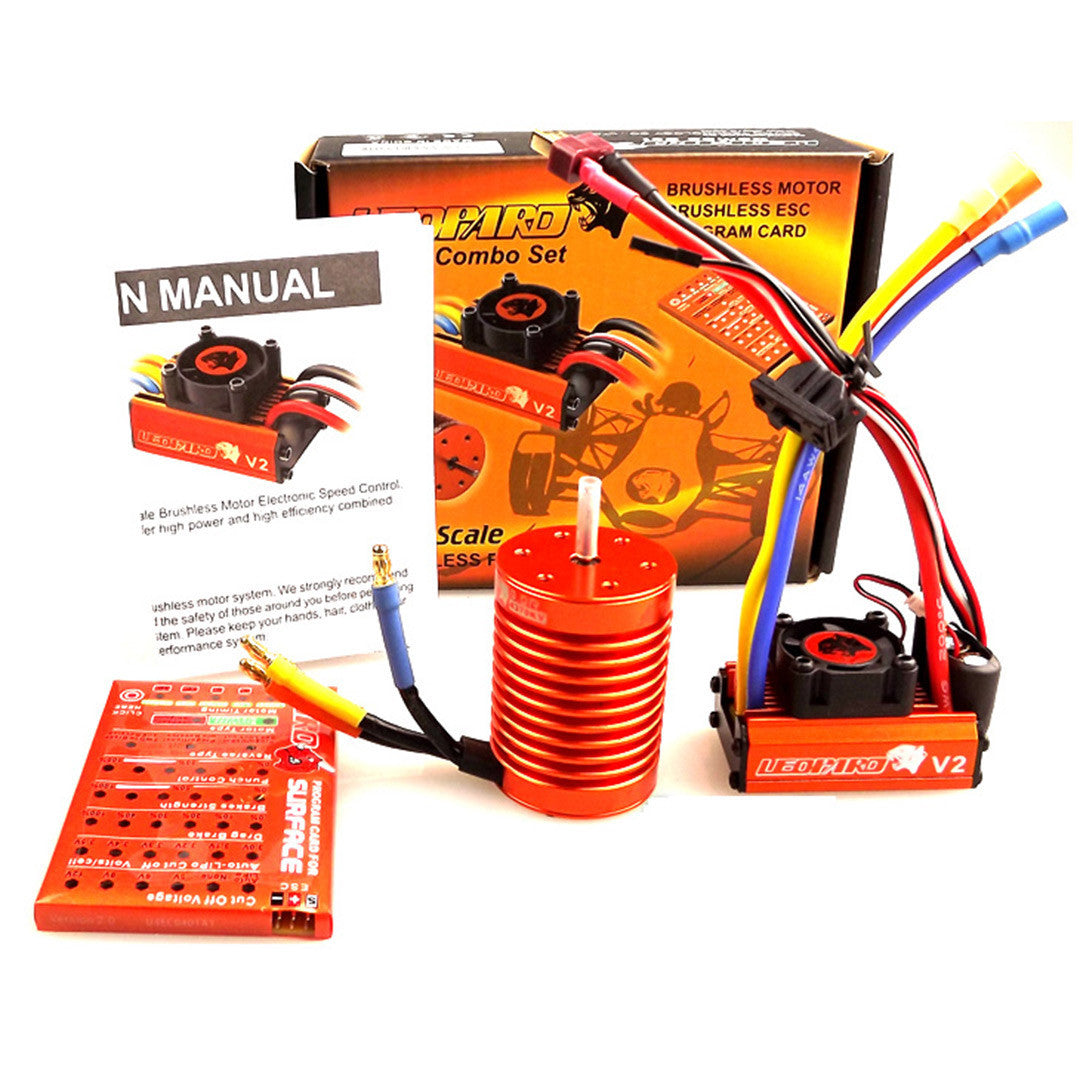

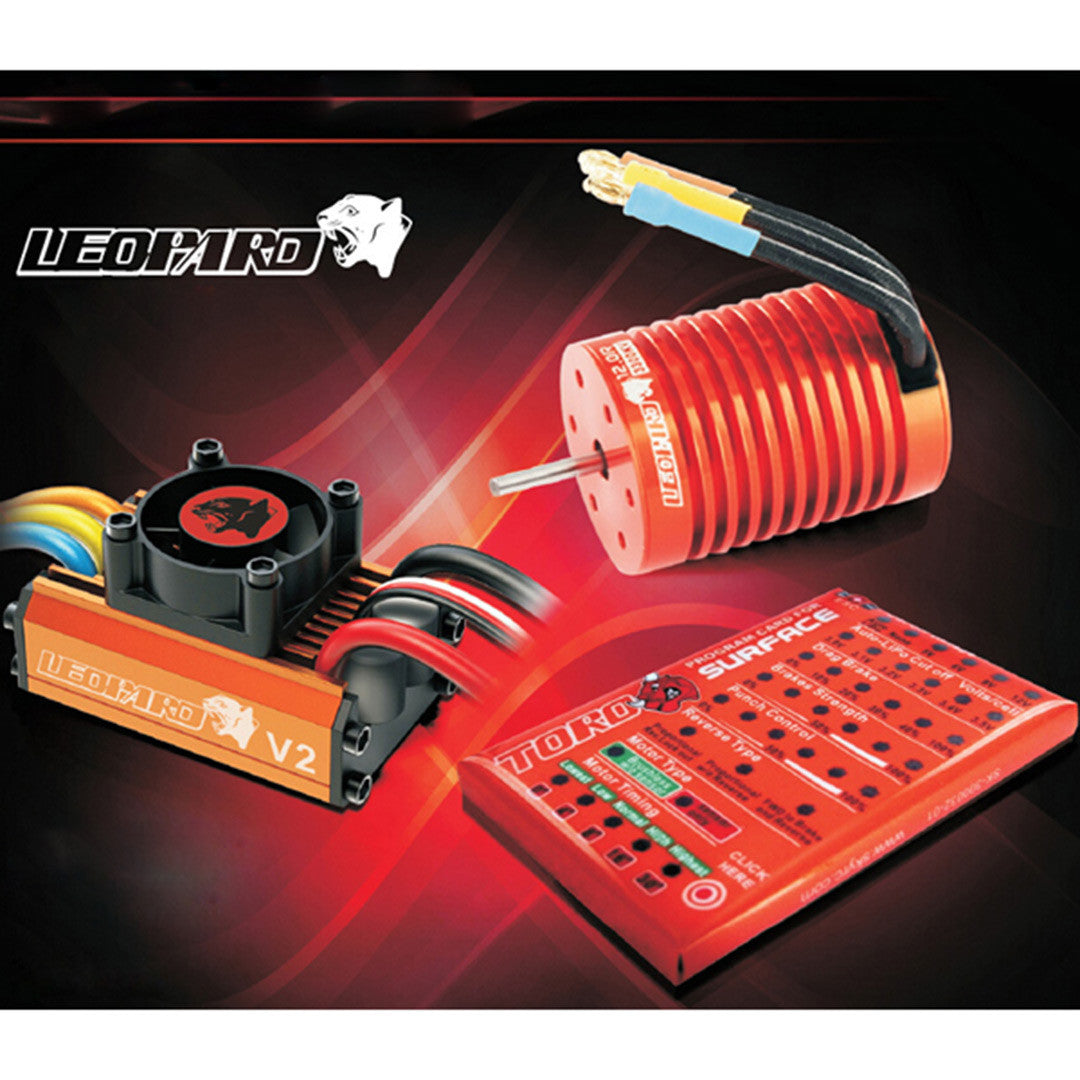

SKYRC LEOPARD 60A ESC 13T 3000KV Brushless Motor 1/10 Car Combo Program card

  • $81.70


Motor Specifications:

  • Rotational Speed: 3000 KV
  • Turns of the Motor: 13T
  • Max. Amps: 33A
  • Resistance: 255ohm
  • Motor Dimensions (Diameter x Length): 35.8mm x 50mm
  • Shaft Dimensions (Diameter x Length): 3.17mm x 15mm
  • Input Battery Types: NiCd / Nimh / Li-po Battery
  • Recommend Model: RC Model 1/10 Car
  • Net Weight: 172g

ESC Introduction:

  • LEOPARD 60A ESC is high performance 1:10 Scale Brushless Motor Electronic Speed Control. The speed controller is specially designed to offer high power and high efficiency combined with low weight and compact dimensions.

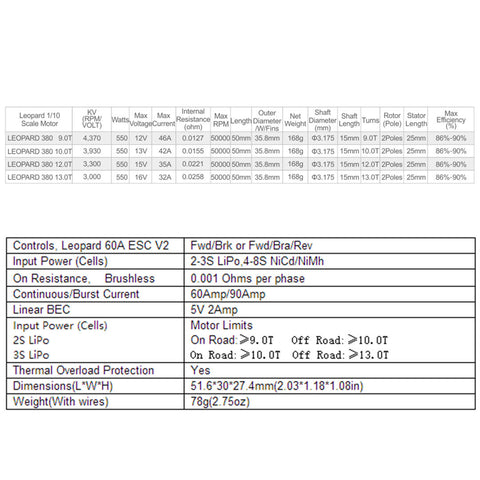

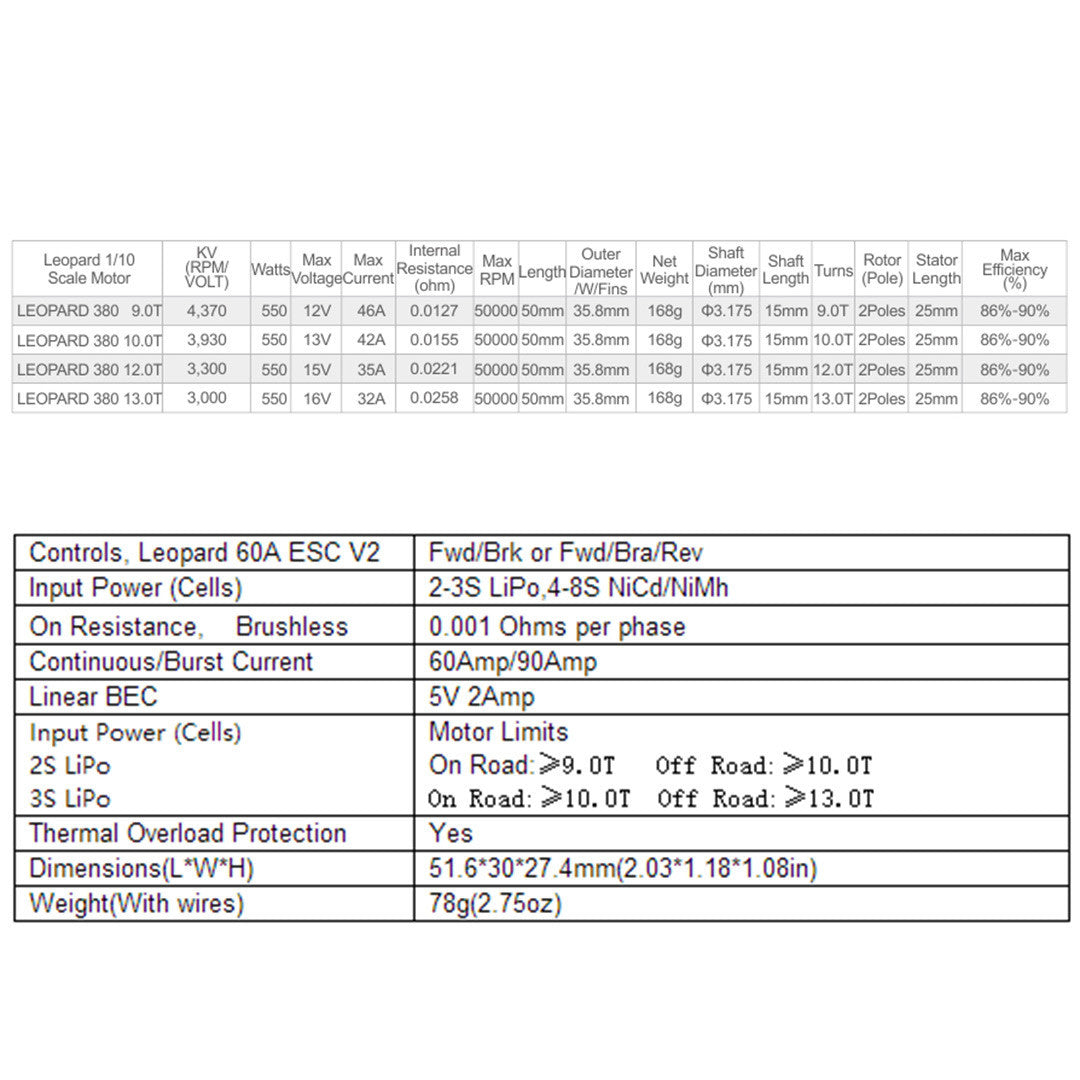

  • ESC Specifications:

    • Model:Leopard 60A ESC V2
    • Continuous / Burst Current: 60Amp / 90Amp
    • Input Power (Cells): 2-3S LiPo, 4-8S NiCd / NiMh
    • On Resistance: 01ohms per phase
    • Linear BEC: 5V / 2Amp

    Motor Limits:

    • 2S LiPo On Road:=>9.0T Off Road:=>1T
    • 3S LiPo On Road:=>1T Off Road:=>13.0T
    • Function: Fwd/Brk or Fwd/Bra/Rev
    • Thermal Overload Protection: Yes
    • Dimensions (Length x Width x Height): 51.6 x 30 x 27.4mm (2.03 x 1.18 x 1.08in.)
    • Net Weight (With wires): 78g(2.75oz)
