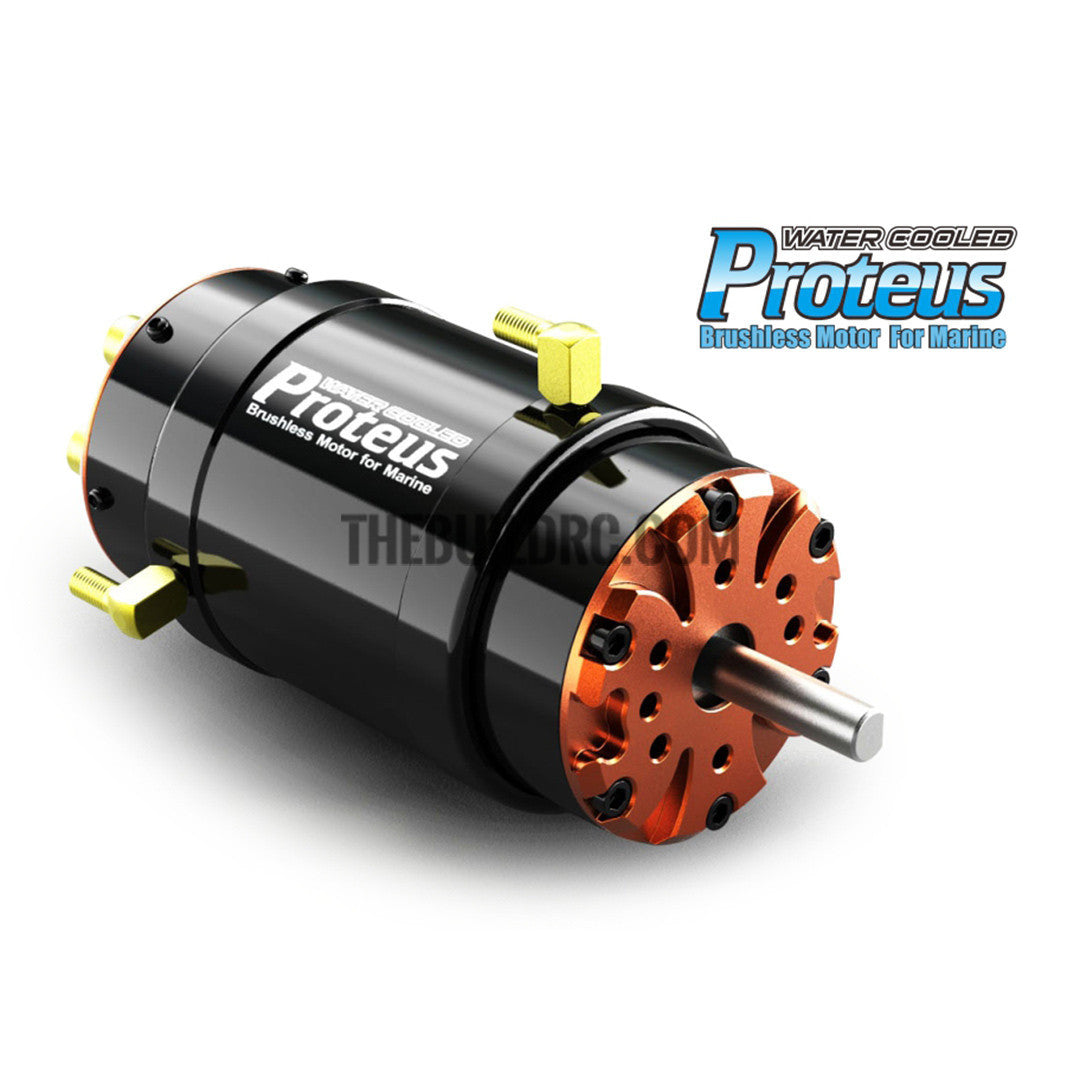

SKYRC Protues Brushless Motor X524-3D 1050KV for RC Model

  • $166.31


Specifications:

  • Model: Protues X524-3D
  • KV (RPM/volt) :1050KV
  • Watts:6300
  • Max Voltage: 28V
  • Max Amps :225A
  • Resistance:0.0035
  • Max RPM:30000
  • Length:112mm
  • Diameter (with fins):55.8mm
  • Shaft Diameter: ??8mm
  • Length of extend shaft:30mm
  • Weight:1035g

Features:

  • High Quality Bearings

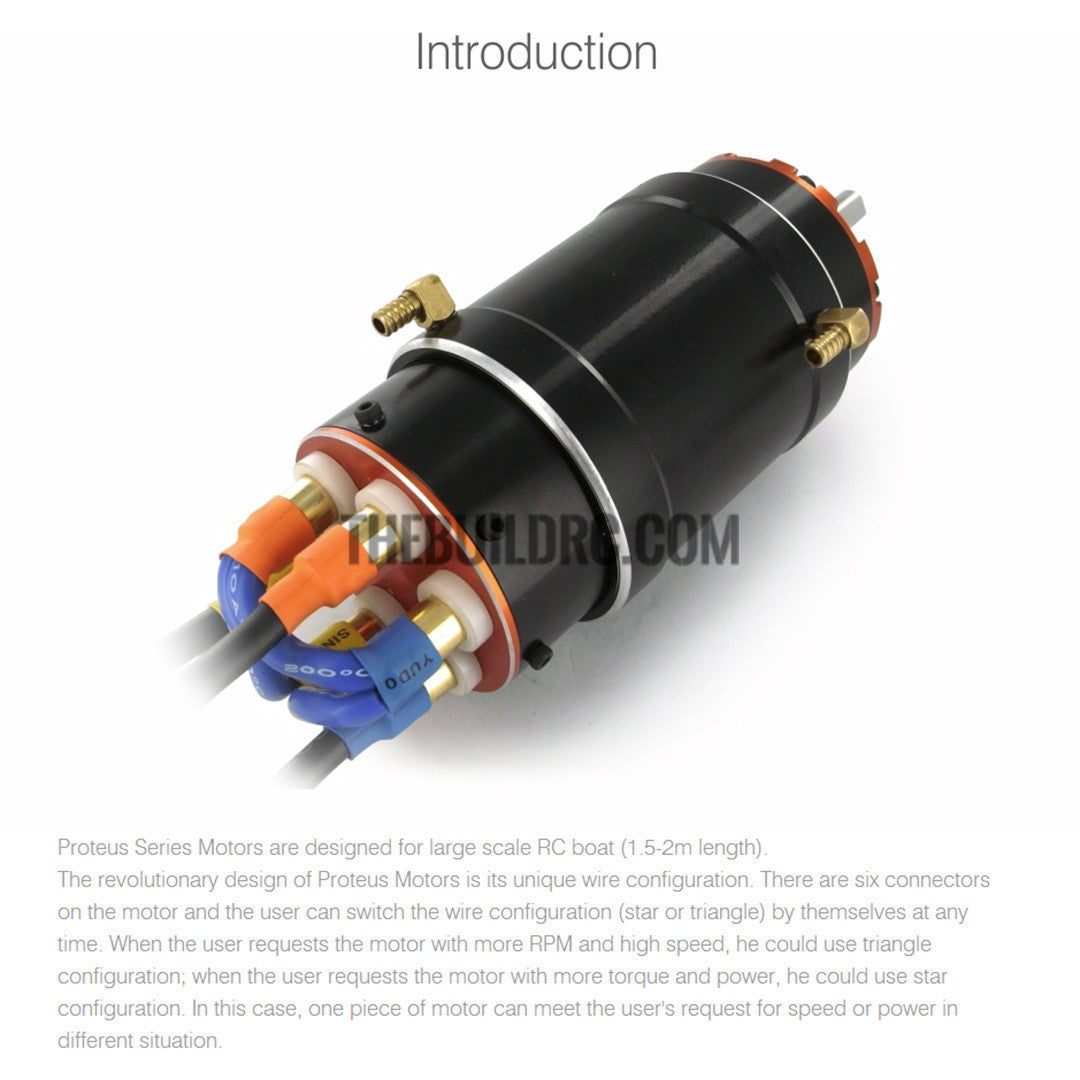

  • Totally 6 connectors on the motor

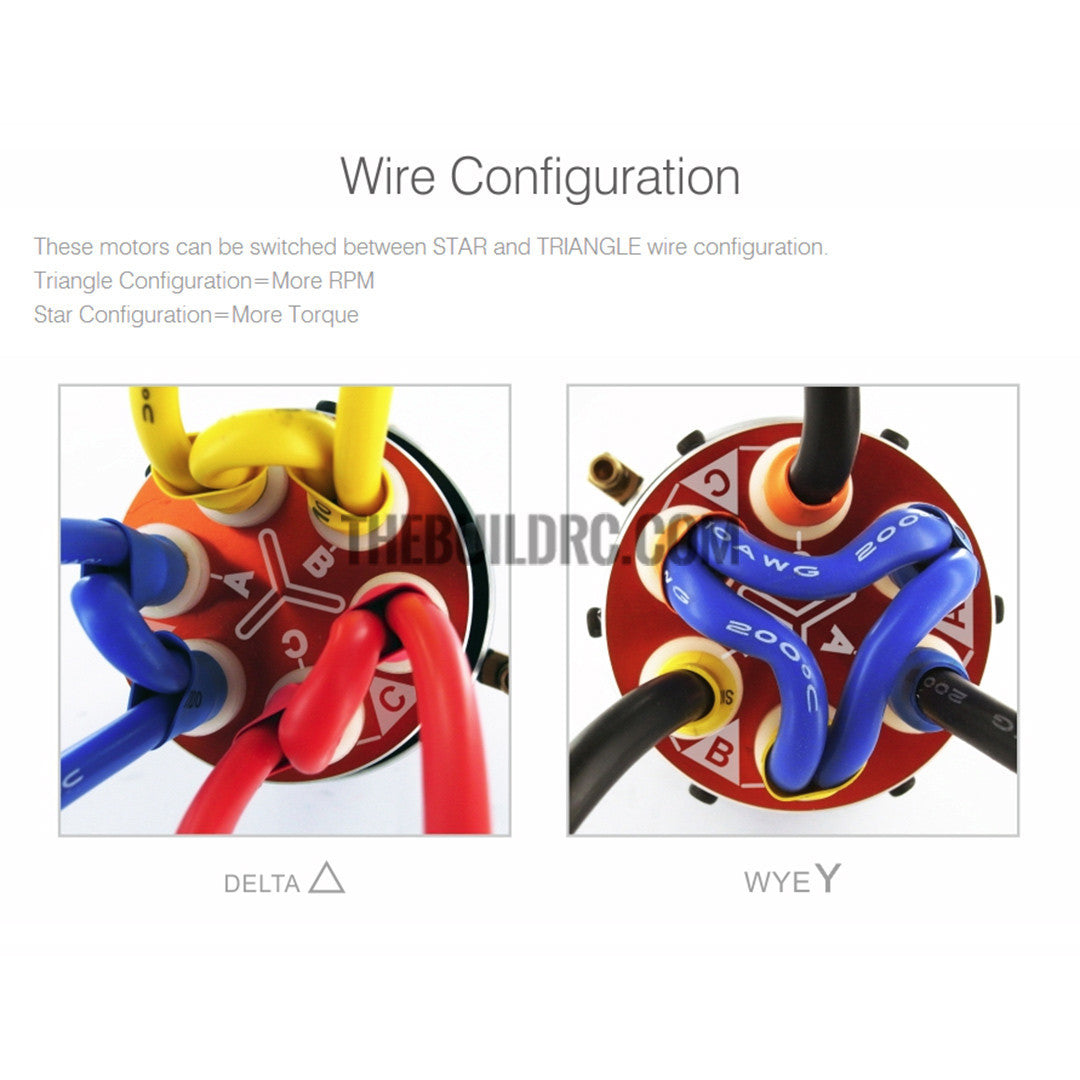

  • Triangle Configuration means more RPM
  • Star Configuration means more torque

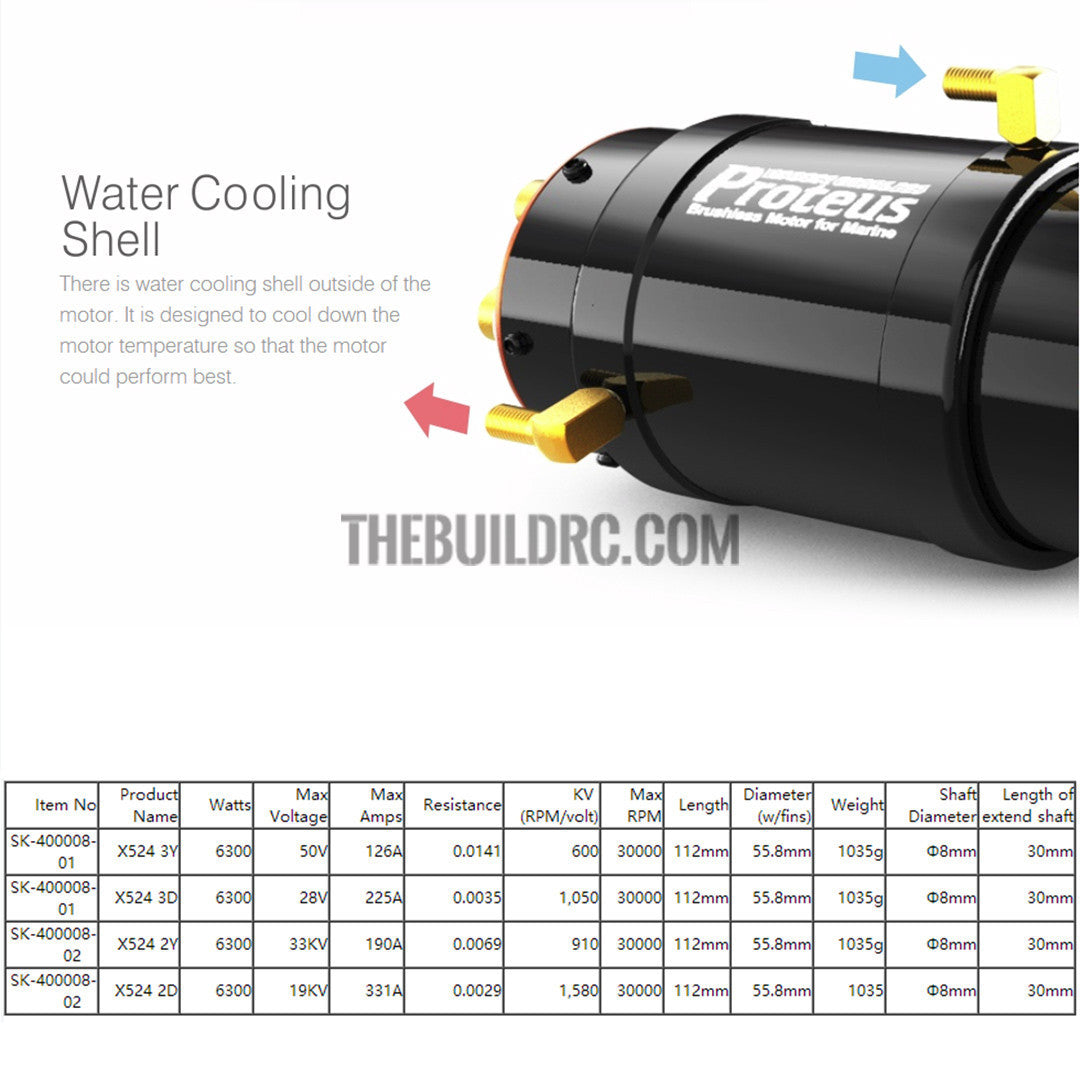

  • With water cooling case
  • 4 Pole Neodymium magnets rotor
  • Super thin laminations stator
  • Super Strength 8mm shaft
  • Users can switch the STAR and TRIANGLE with configuration
