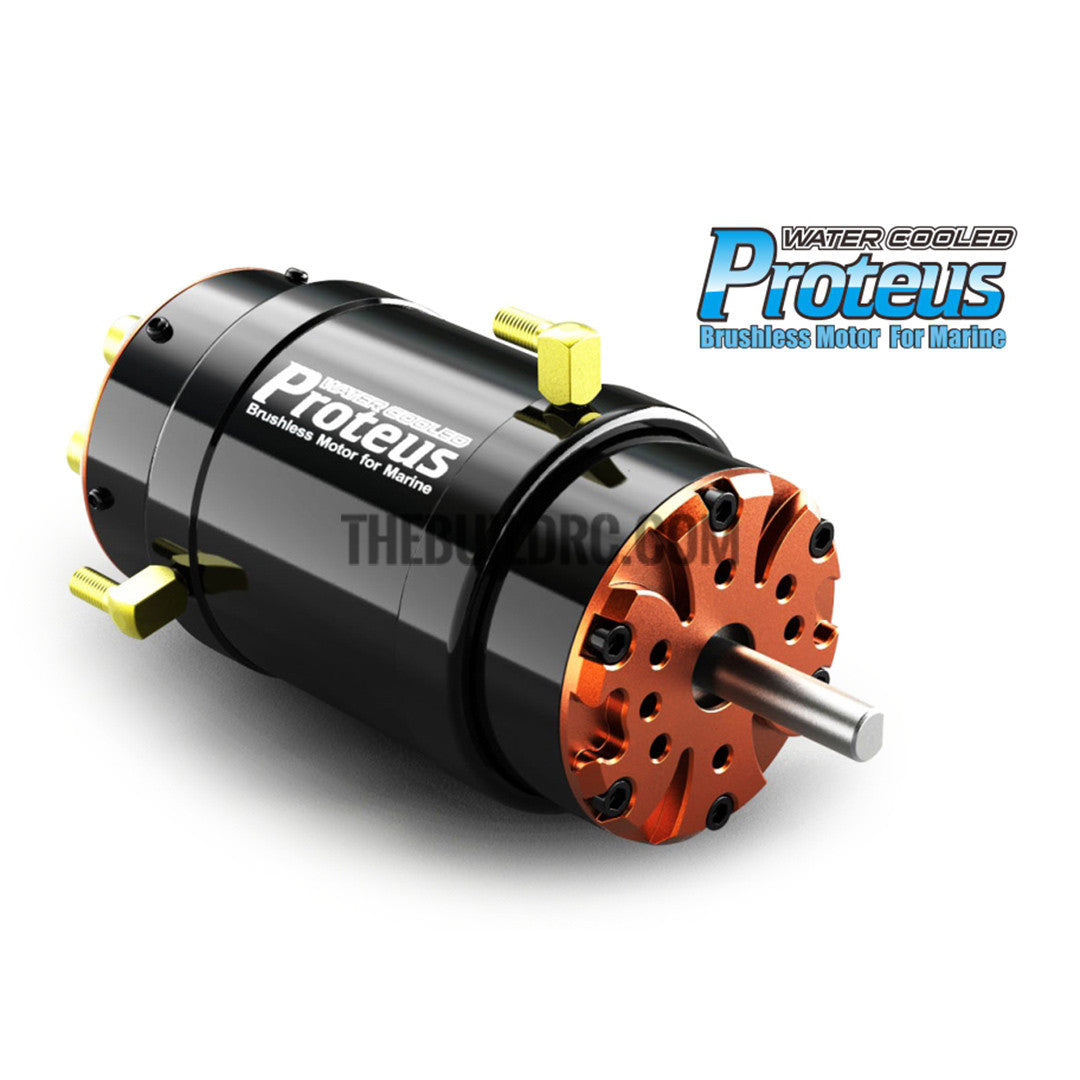

SKYRC Protues Brushless Motor X524-3Y 600KV for RC Model

  • $195.70


Specifications:

  • Model: Protues X524-3Y
  • KV (RPM/volt) :600KV
  • Watts:6300
  • Max Voltage: 50V
  • Max Amps :126A
  • Resistance:141
  • Max RPM:30000
  • Length:112mm
  • Diameter (with fins):55.8mm
  • Shaft Diameter: ??8mm
  • Length of extend shaft:30mm
  • Weight:1035g

Features:

  • High Quality Bearings

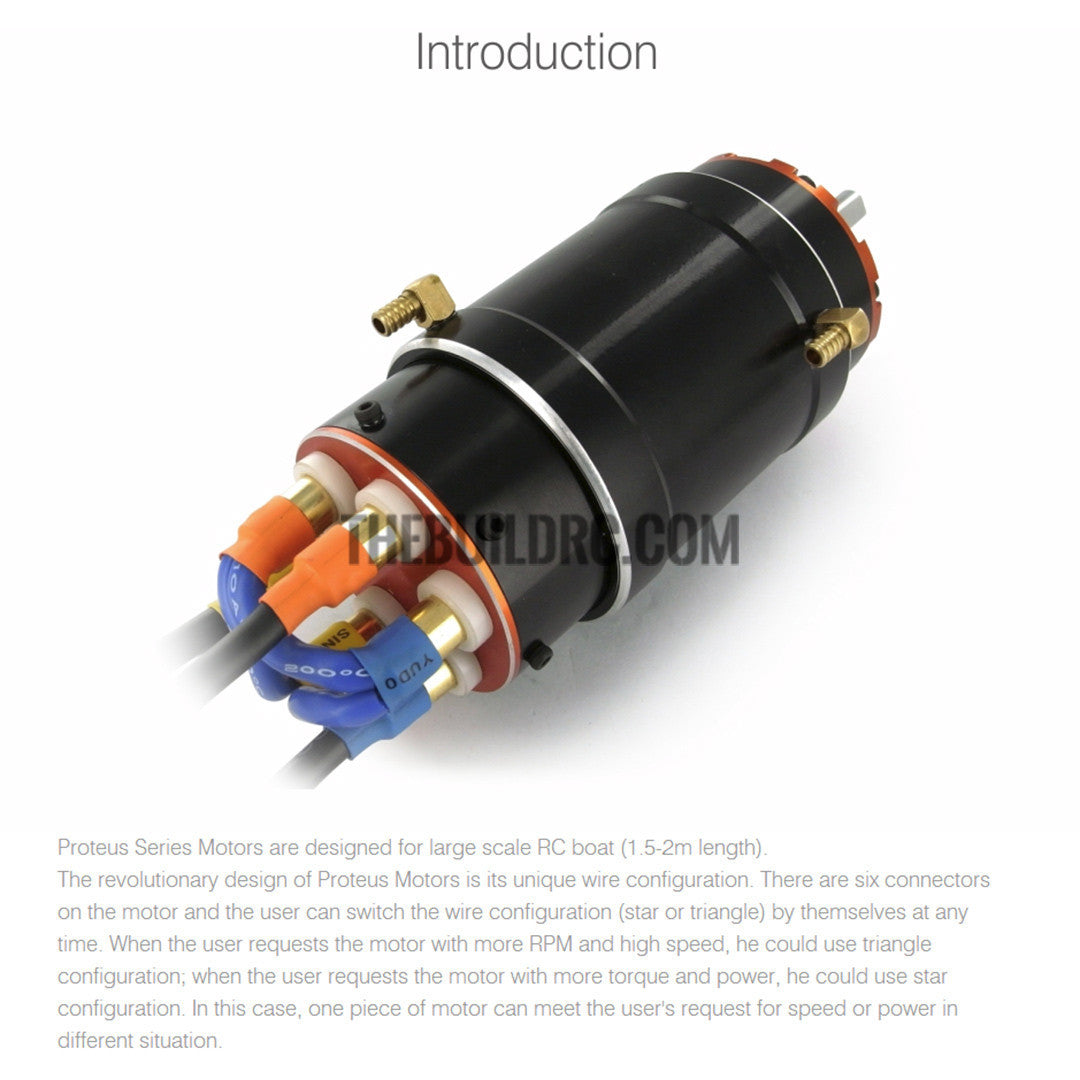

  • Totally 6 connectors on the motor
  • Triangle Configuration means more RPM
  • Star Configuration means more torque

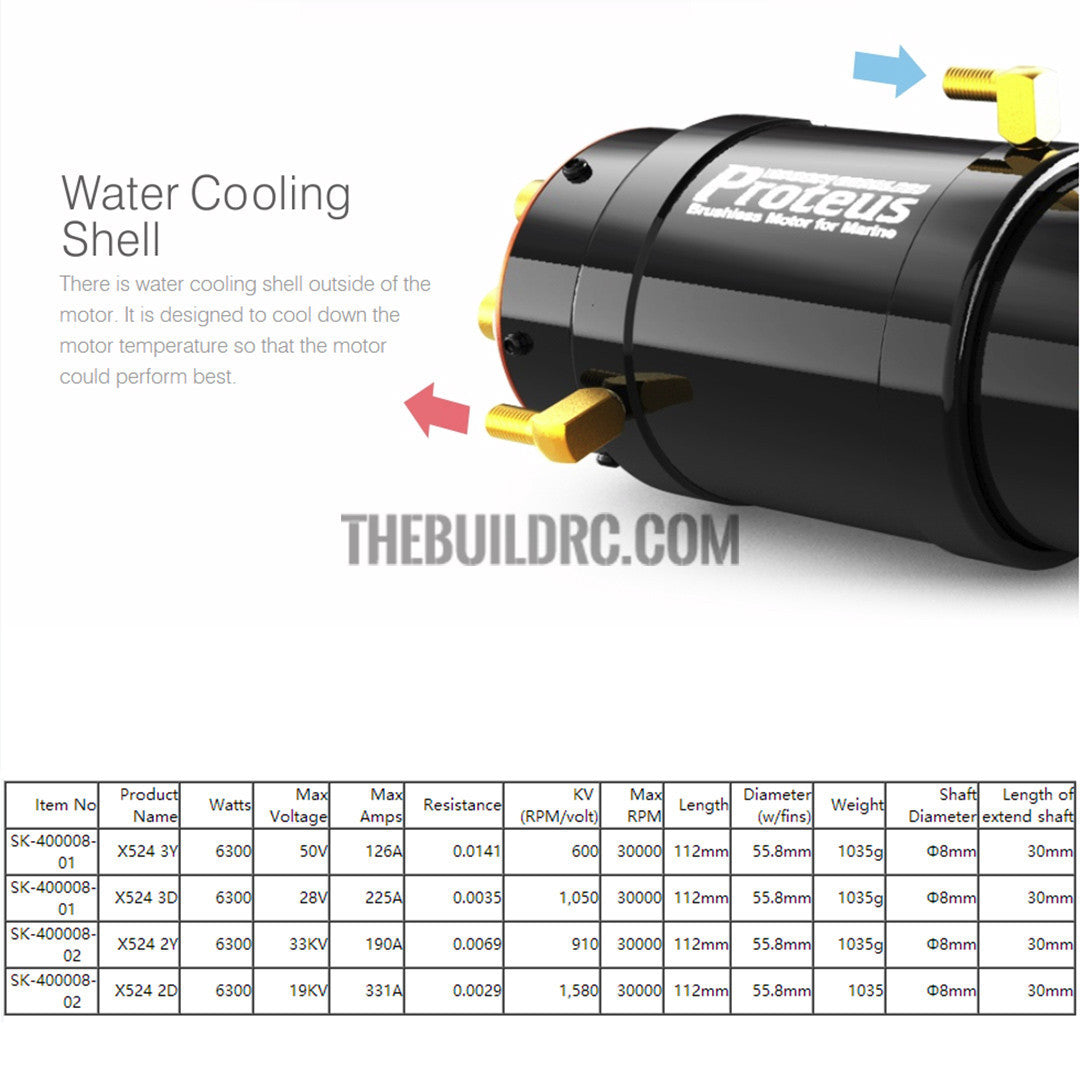

  • With water cooling case
  • 4 Pole Neodymium magnets rotor
  • Super thin laminations stator
  • Super Strength 8mm shaft

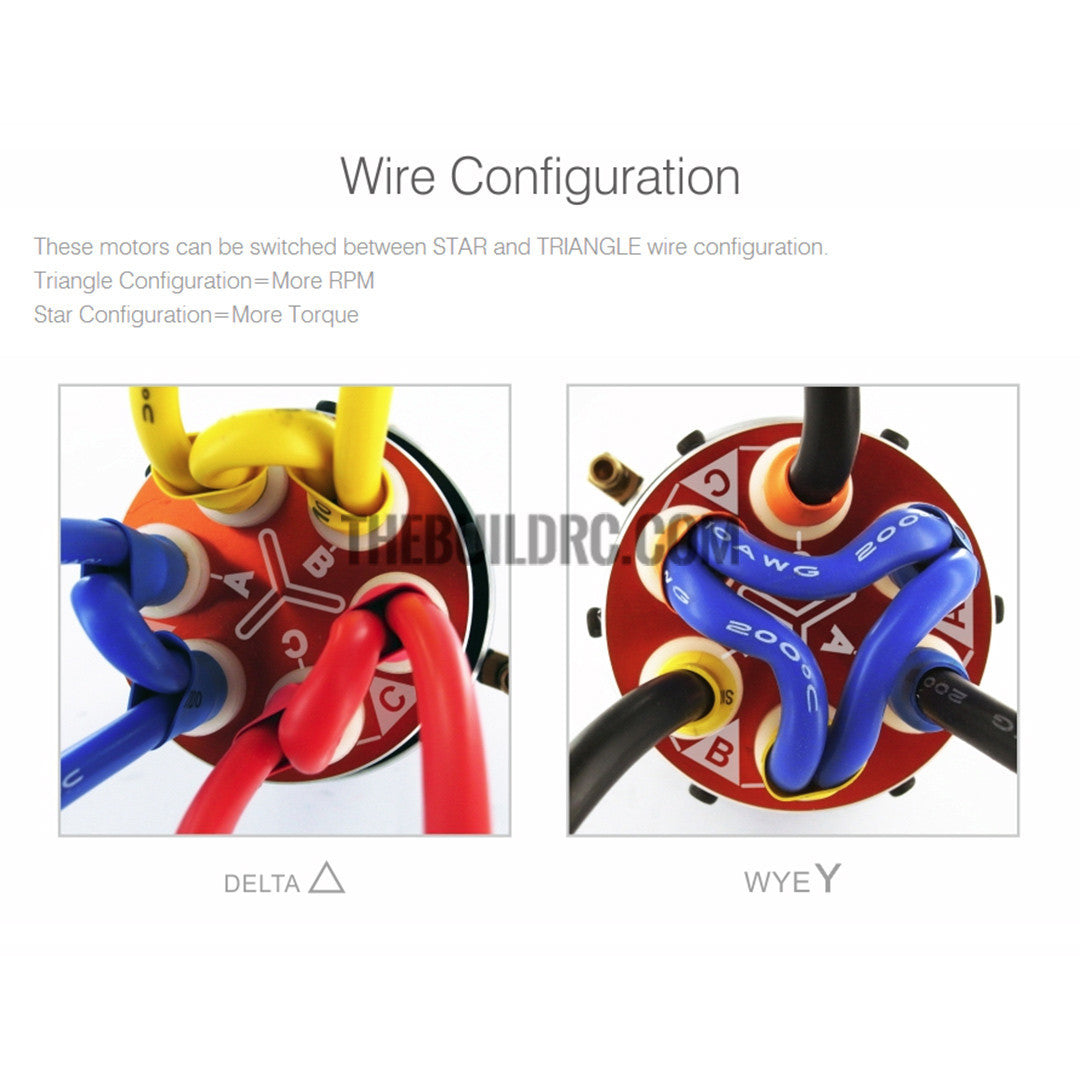

  • Users can switch the STAR and TRIANGLE with configuration
