SkyRC TORO SC120A Brushless Sensored Motor Programmable ESC For 1/10 RC Car and 1/8 Buggy

  • $121.60

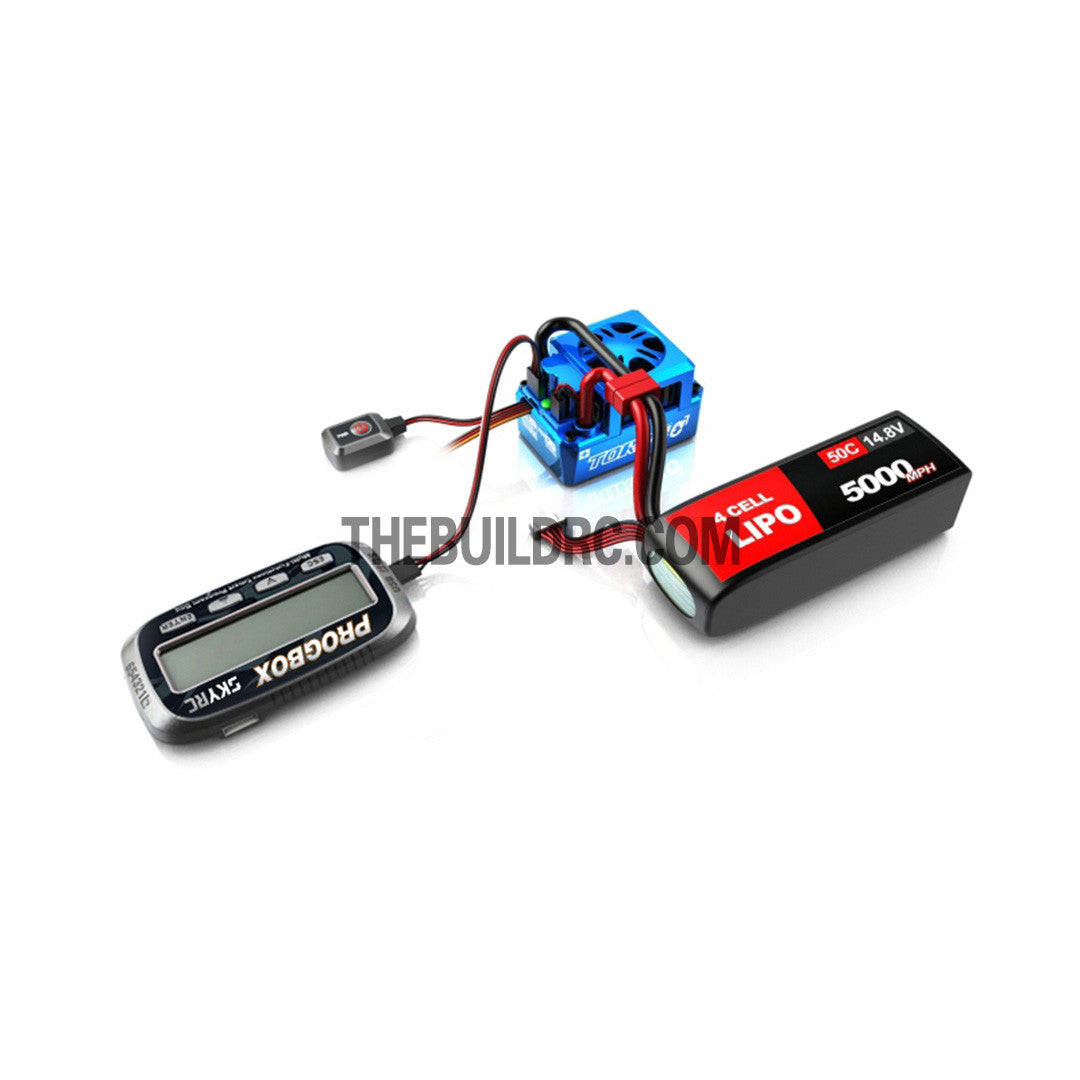

The Toro SC120 brushless ESC is a sensored speed control specifically designed to meet the rigors of short course racing.The built-in switching mode BEC has a powerful output to supply all electronic equipments even with 4S Lipo input . It comes with 3 running models and 9 start models from' soft' to Very aggressive' to suitable for different tracks, also comes with multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection. The ESC firmware is updatable via an USB adapter. It is easily programmed via the Advanced LCD Program Box and the major electronic components are sealed against splashing water and dust.

Features:

  • Designed??to meet the rigors of short course racing.

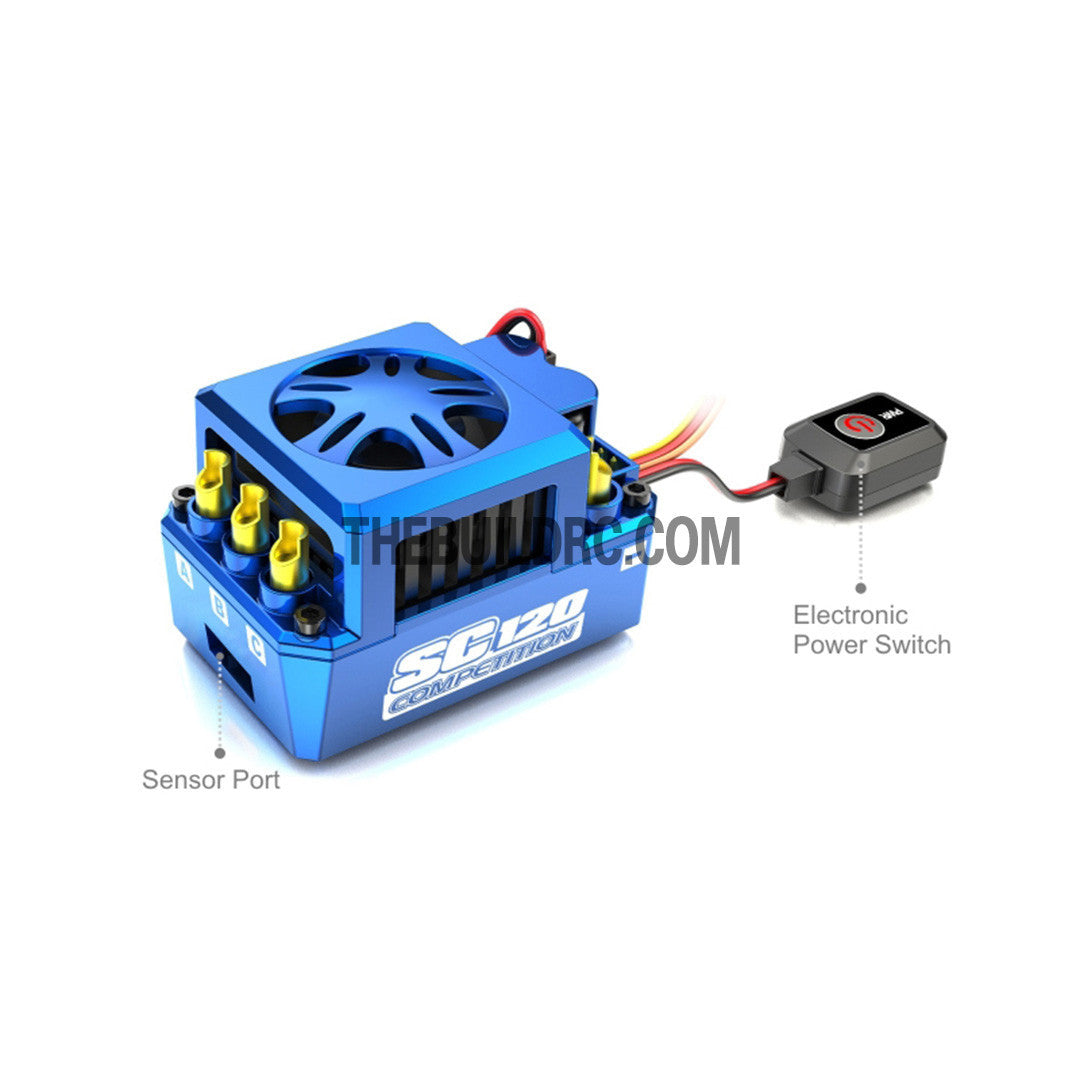

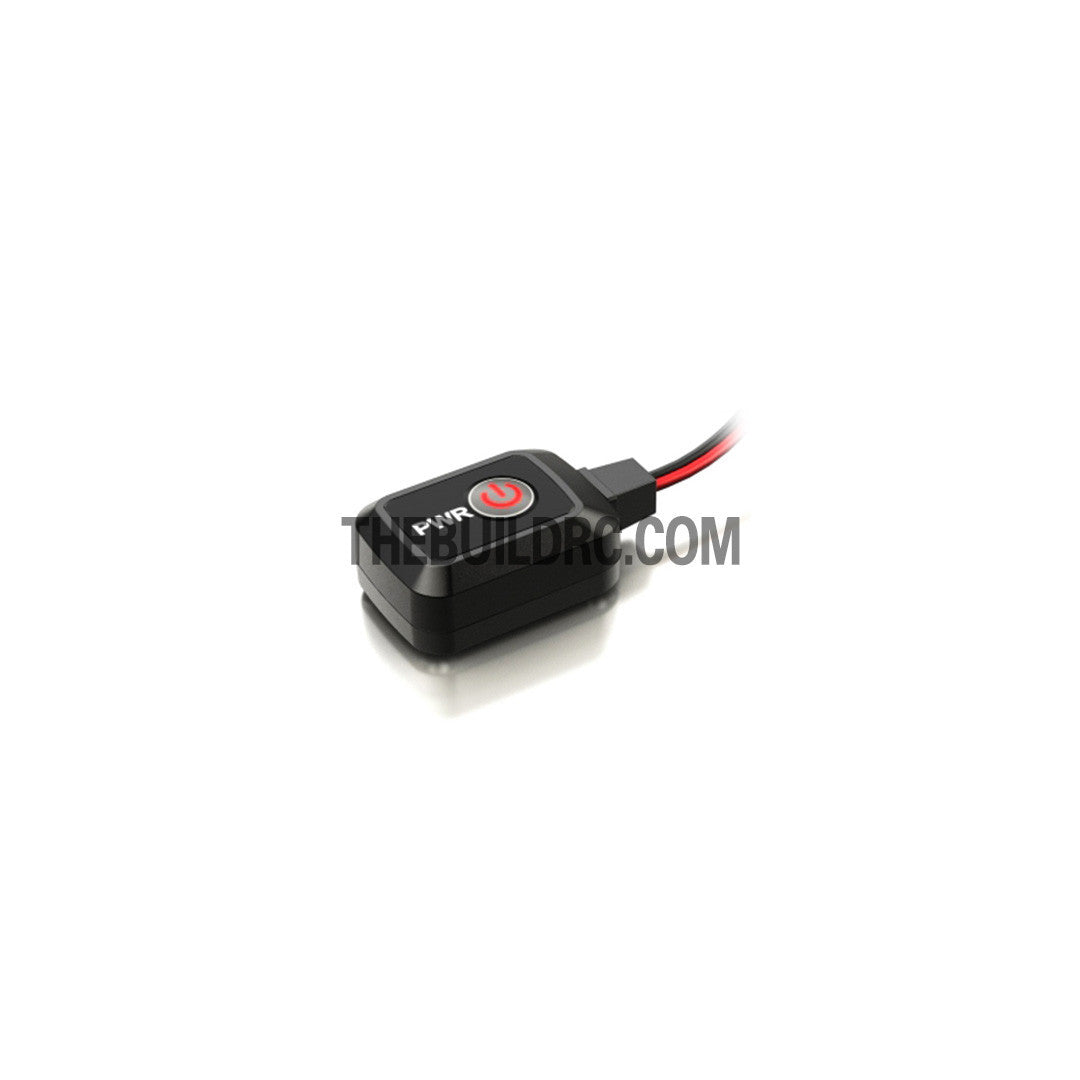

  • With Electronic Power Switch
  • Programmable.
  • Built-in BEC.
  • Low voltage protection.
  • Motor and ESC overheat protection.
  • Signal lost protection.

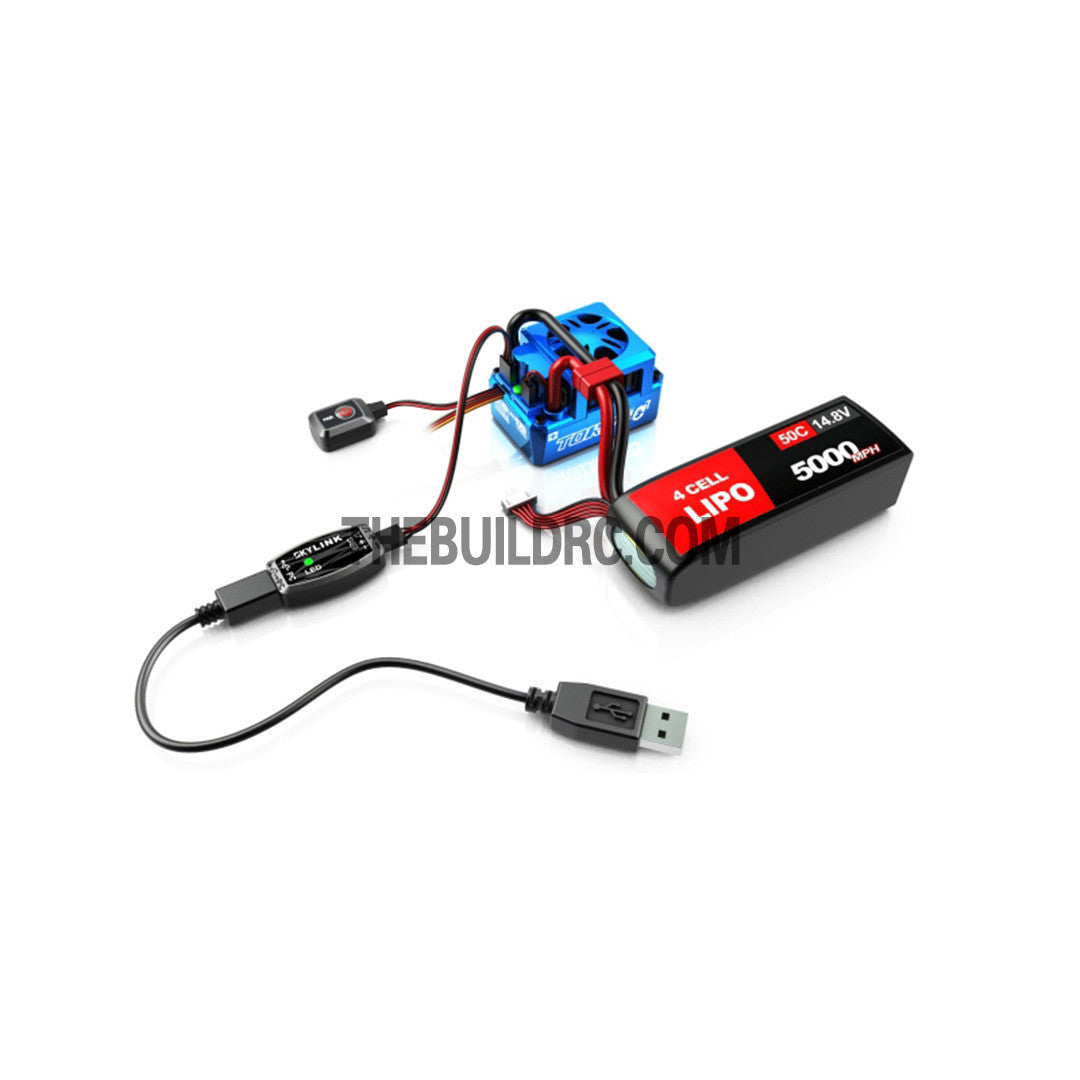

  • Firmware can be updated by connecting the ESC with PC or smart phone.

Specifications:

  • Constant/Burst Current:??120A/760A
  • Motor Compatible:??Brushless Sensor & Sensorless ESC
  • Car Compatible:??
    • 1/10 SC or Monster
    • 1/8 SC or Buggy
  • Motor Limits:/li>
    • 6S NiMH or 2S LiPo KV???6000
    • 7-9S NiMH or 3S LiPo KV???4000
    • 10-12S NiMH or 4S LiPo KV???3000
  • Resistance:??003ohm
  • Battery Cell Count:??6-12S NiMH or 2-4S LiPo
  • BEC Output:??6V@3A, Linear
  • FAN:??6V@0.2A
