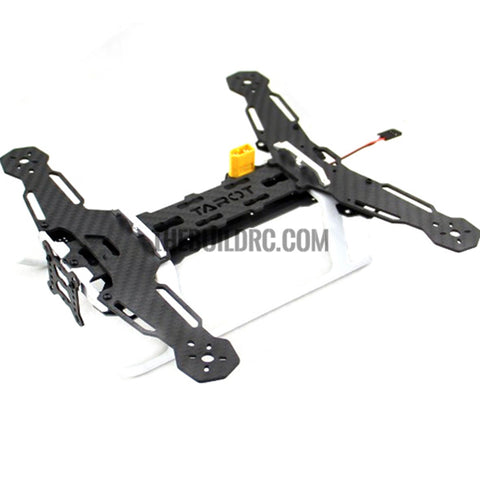

Tarot Mini 250 through the machine frame TL250A

  • $40.90


Product Description:

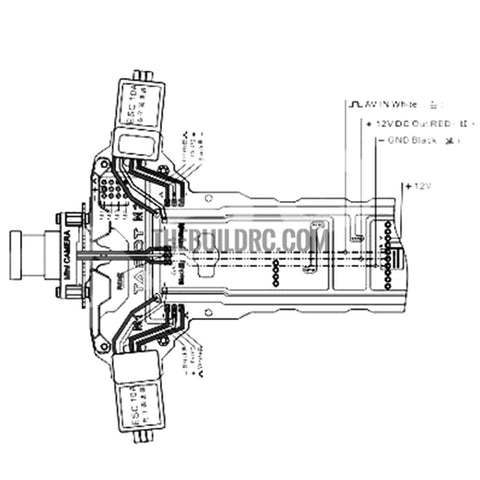

  • TAROT Mini 250 through the machine is similar products in the market only allow camera, image overlay systems, battery power, power transfer, 5.8G wireless image transmission, antenna, GPS and other electronic equipment, can all line or soldered to the PCB integration rack, a significant reduction in wiring installation quick and easy.
  • TAROT Mini 200/250/300 through the machine is currently the similar products in the most integrated product, the overall thickness 2.1MM pure carbon fiber support structure designed to be simple to use 450 tripod extremely ruggedness, low accessories. Rack comes standard on the PCB holes integrate all electronic products, reduce fly line interference. Extremely lightweight frame structure to obtain reasonable long life time.

Recommended Related Item:

  • TAROT Mini 200: TL200A / TL200B
  • TAROT Mini 250: TL250A / TL250B
  • TAROT Mini 300: TL300A / TL300B
  • OSD image overlay / GPS: TL300L
  • 600MW5.8G mini wireless image transmission: TL300N
  • Mini Camera: TL300M
  • CC3D openpilot through the machine open source flight control TL300D
  • Figure 5.8G transmission antenna TL300K
  • 5-inch paddle clover TL300E (Mini 200 / Mini 250 /)
  • 6 inch paddle clover TL300F (Mini 300)
  • Mini 200 / Mini 250 / Hooray ESC 12A (including BEC) TL300G
  • Mini 200 / Mini 250 / brushless motor: 1860-2280KV TL300H1 / TL300H1
  • Mini 300 brushless motor: 2206KV TL300J1 / TL300J1
  • Lithium polymer battery: 15C / 11.1V / 2200MAH

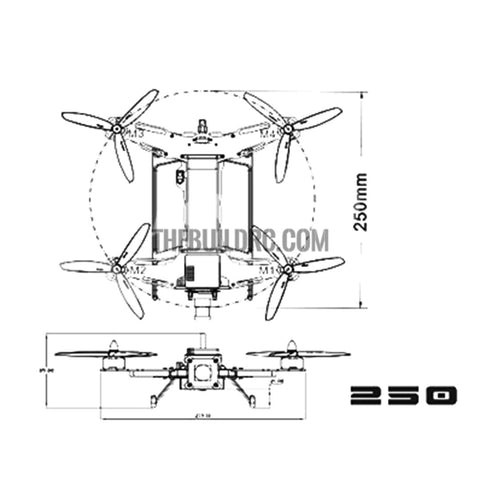

Product parameters:

  • Wheelbase: 250MM
  • Empty rack height / assembly height: 43MM / 85.8MM
  • Empty frame length / assembly Length: 195MM / 288MM
  • Empty frame width / assembly width: 219MM / 315MM
  • Bottom headroom: 21.8MM
  • Empty weight / takeoff weight: 115G / 430G (including 2200MHA battery)

Product Specifications:

  • 2.0 pure carbon plate ?? 1 (159 ?? 33 ?? 2.0MM) 11.7G
  • 2.0 Front pure carbon plate ?? 1 (219 ?? 49 ?? 2.0MM) 16.5G
  • 2.0 After the pure carbon plate ?? 1 (219 ?? 58 ?? 2.0MM) 16.9G
  • 1.0 before the legislature of pure carbon plate ?? 1 (159 ?? 33 ?? 2.0MM) 1.3G
  • PCB circuit board ?? 1 (181 ?? 106 ?? 19.5MM) 28G
  • Plastic Tripod ?? 1 (175 ?? 108 ?? 43MM) 25G
  • Before metal supports ?? 1 (73 ?? 10 ?? 8MM) 5G
  • Within M2 ?? 4MM round head Allen screws 0.2G ?? 7
  • The metal support frame ?? 2 (48.5 ?? 4 ?? 8MM) 1.7G
  • M2 ?? 12MM hex head screw cup 0.3G ?? 6
  • Flight Control sided adhesive ?? 1 (35 ?? 35 ?? 1.5MM) 0.5G
  • battery Tie?? 1
  • English manual ?? 1
