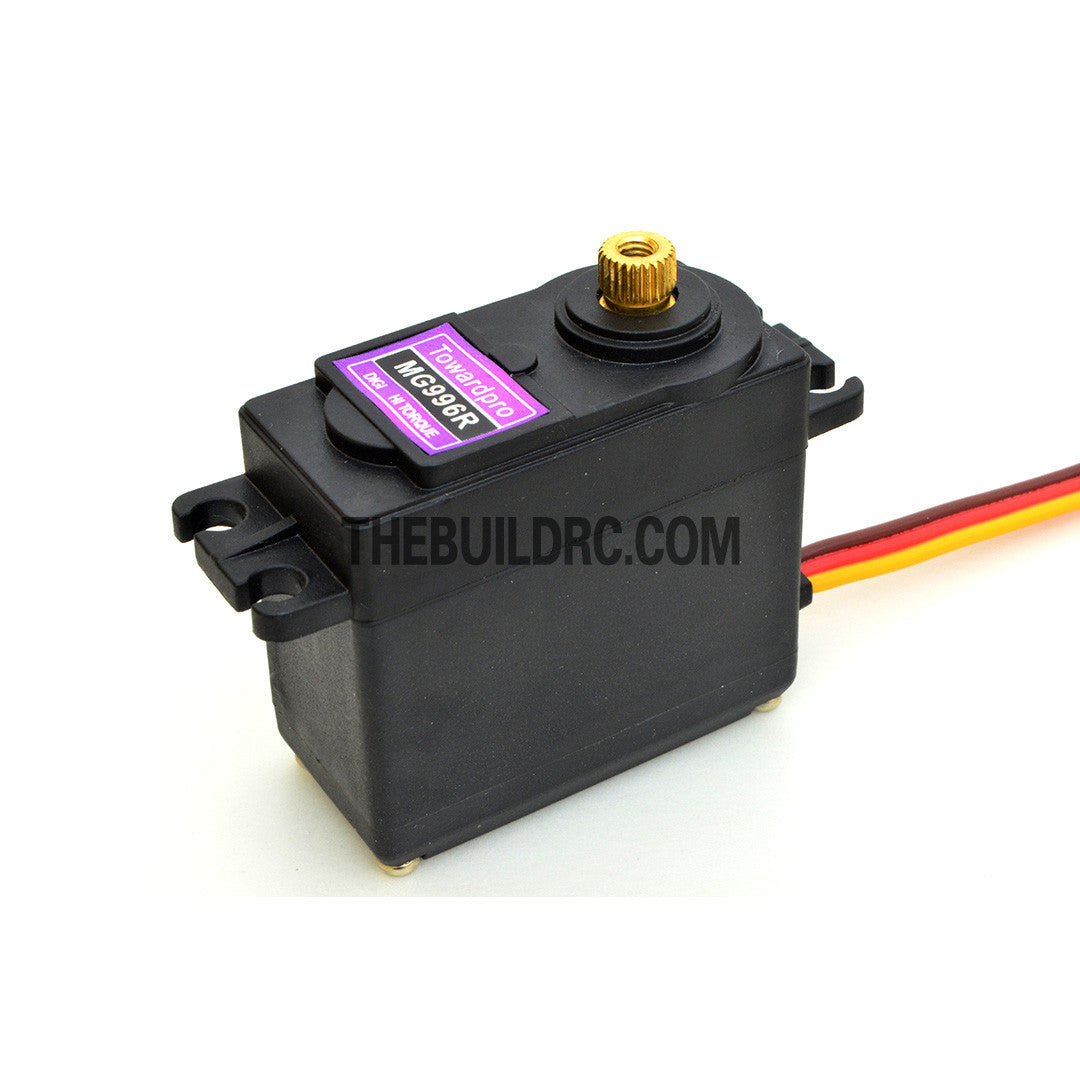

TowerPro MG996R 55G High Torque Metal Gear Digital Servo 10kg / .20sec

  • $15.30


This is an upgraded version of the towerpro MG995 servo. It now has a redesigned PCB and IC controll system which makes it far more accurate. Its internal gearing and motor are also upgraded to improve dead bandwith and centering.

All specifications are the same as the previous model MG995, however this servo is far more accurate, and safe to use in aircraft which precise servo movements and perfect centering.



Specifications

Dimension (mm)

40.7 x 19.7 x 42.9

Servo Type

Analog

Operating Voltage

4.8 - 7.2

Operating Current

N/A

Torque Current

N/A

Output Angle

N/A

Dead band Width

5

Operating Speed

0.17sec/60 degree @4.8v

0.14sec/60 degree @6.0v

Standard Direction

N/A

Stall Torque

9.4kg/cm @4.8v

11kg/cm @6.0v

Net Weight (kg)

72

Gross Weight (kg)

0.1
