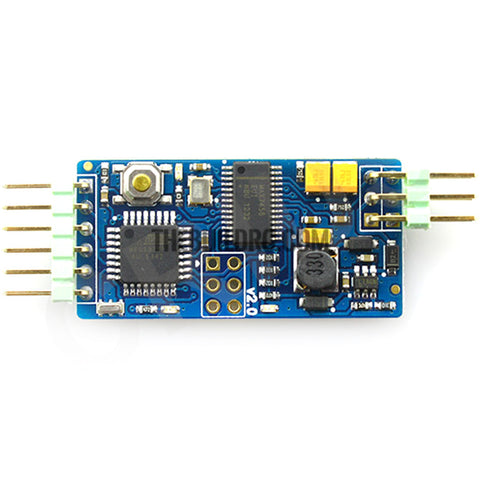

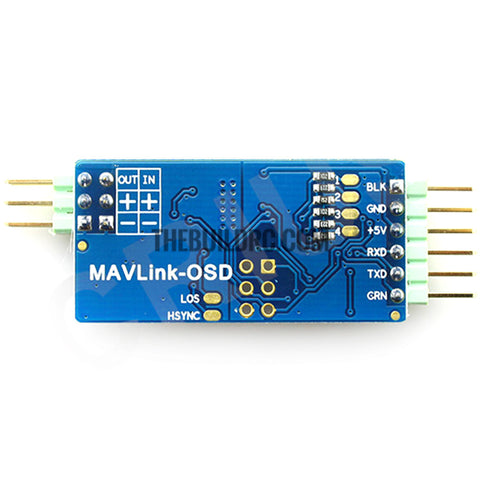

CRIUS MAVLink-OSD Compatible With MinimOSD DC-DC Flight Control Board

  • $21.00


  • Brand Name: CRIUS
  • Item Name: CRIUS MAVLink-OSD Flight Control Board
  • Dimension: 39mm x 19mm(no include row needles )
  • Weight: 6g(not include cable)
  • Cable: UART 4Pin cable 150mm

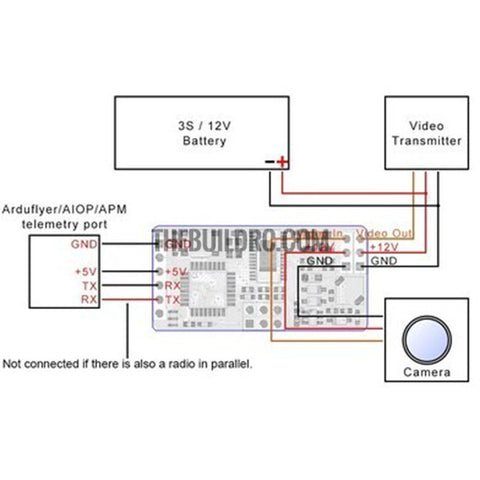

  • This board can be used for CRIUS AIOP and Arduflyer / ArduPilot-Mega.
  • MAVLink-OSD is an Arduino based project and it is fully compatible with original MinimOSD.
  • MAVLink-OSD with switching DC/DC stepdown powersupply to maximize efficiency on power system. No more heating problems when using this OSD board.

Hardware Features:

  • FTDI connector Supported NTSC and PAL ATMEGA328P Microcontroller MAX7456-EUI
  • monochrome on-screen display 5V/500mA DC/DC regulator for MAX7456-EUI
  • Operating voltage: 5V(FTDI connector) and 12V(Video I/O connector)

Software features: Full MAVLink protocol support Graphical configurator tool

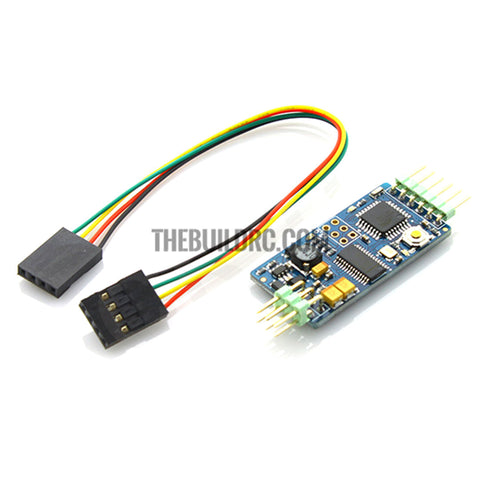

Package Included:

  • 1 x CRIUS MAVLink-OSD Flight Control Board
  • 1 x UART 4Pin cable
