EMAX CF2812 Outrunner Brushless Motor 1534KV for Rc Airplane

  • $9.90


The Emax CF2812 brushless out-runner motor is capable of producing up to 22oz of thrust and generate about 140W of power. It is suggested to use 3.5mm bullet connectors for ESC connection.

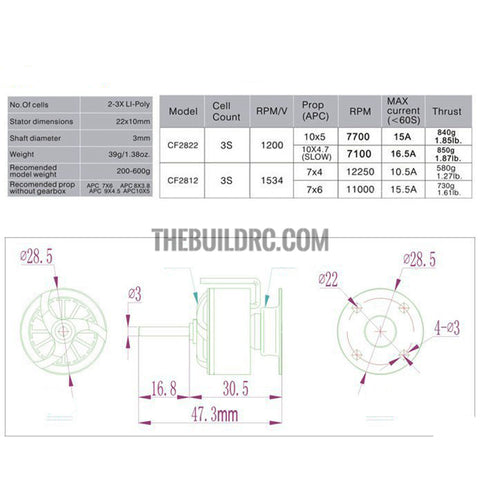

Specifications:

  • KV: 1600
  • Weight: 1.6oz (39g)
  • Motor Diameter: Approx. 28mm
  • Total Length: 47mm
  • Shaft Length: 17mm
  • Shaft diameter: 3mm
  • Max efficiency: Approx. 15A
  • Max Load: Approx. 18A
  • Recommended Setup:

    • 20A brushless motor ESC
    • 2-3S LiPO and at least 1000-1300mAh.
    • Prop Selection: Remember to always use props designed for electric motors, nitro props are heavier and might overload the motor.
    • With 3S LiPO: 7x3, 6x4
    • With 2S LiPO: 9x5, 8x4

    The above prop selections are recommended for sports flying at open throttle. You may use slightly larger props if you do not fly at constant open throttle.
